Start-up 67
To complete the control connections by manually entering the parameters, see
section Parameters mode.
For detailed hardware description, see chapter Dimension drawings.
Notes:
• The current parameter value appears below the highlighted parameter.
• To view the default parameter value, press the UP/DOWN buttons simultaneously.
• The most typical and necessary parameters to change belong to Group 99: Start-
up data, Group 10: Start/Stop/Dir, Group 11: Reference select, Group 20: Limits,
Group 21: Start/Stop, Group 22: Accel/Decel and Group 30: Fault functions.
• To restore the default factory settings, select the application macro HVAC default.

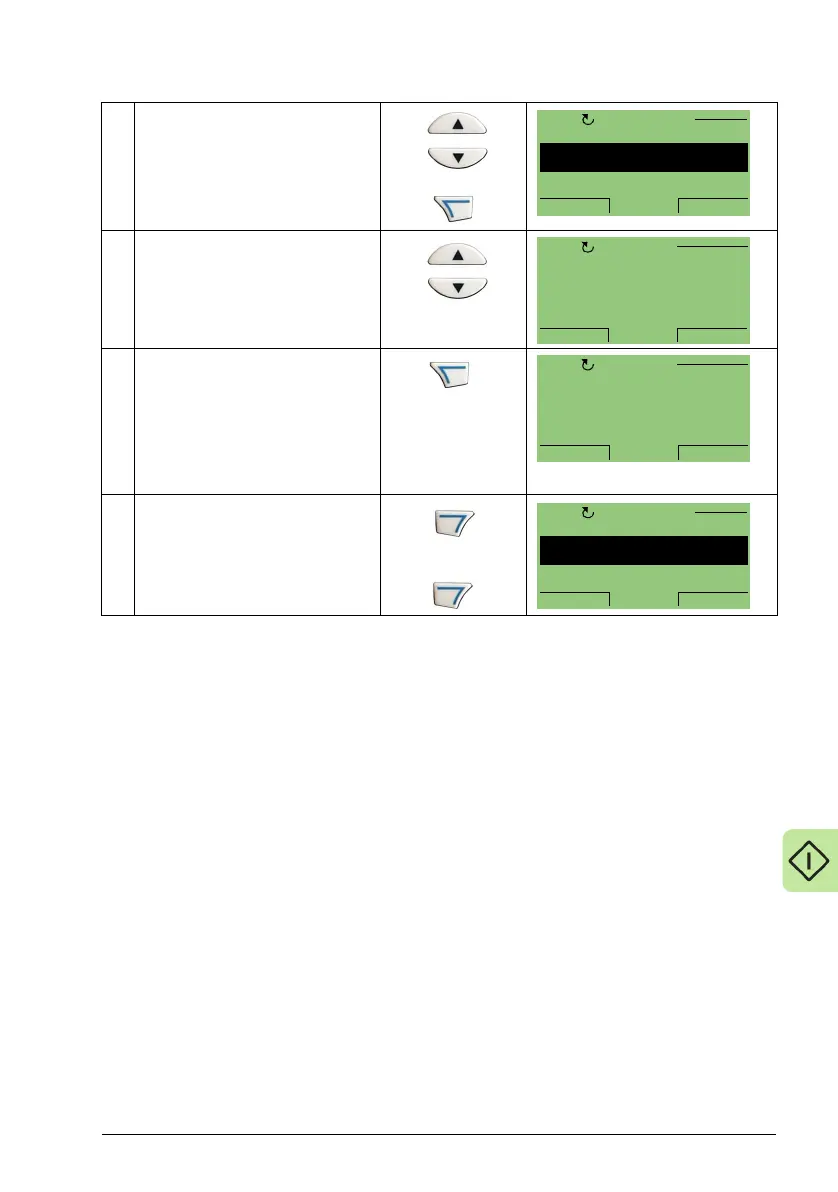

4
Select the appropriate parameter
in a group with the UP/DOWN
buttons. Select EDIT to change
the parameter.
5
Press the UP/DOWN buttons to
change the parameter value.
6
Select SAVE to store the
modified value or select
CANCEL to leave the set mode.
• Any modifications not saved
are canceled.
• Each individual parameter
setting is valid immediately
after pressing SAVE.
7
Select EXIT to return to the
listing of parameter groups, and
again to return to the main menu.
9901 LANGUAGE
9902 APPLIC MACRO
HVAC DEFAULT
9905 MOTOR NOM VOLT
9906 MOTOR NOM CURR
PARAMETERS
EXIT
EDIT
OFF
9902 APPLIC MACRO
PAR EDIT
HVAC DEFAULT
[1]
OFF
CANCEL SAVE
9902 APPLIC MACRO
PAR EDIT
SUPPLY FAN
[2]
OFF
CANCEL SAVE
9901 LANGUAGE
9902 APPLIC MACRO
SUPPLY FAN
9905 MOTOR NOM VOLT
9906 MOTOR NOM CURR
PARAMETERS
EXIT
EDIT
OFF
