260 Actual signals and parameters
See parameter 3603 STOP TIME 1.
3616 START DAY 4 See parameter 3604 START DAY 1.
See parameter 3604 START DAY 1.
3617 STOP DAY 4 See parameter 3605 STOP DAY 1.
See parameter 3605 STOP DAY 1.
3622 BOOSTER
SEL
Selects the source for the booster activation signal. NOT SEL
NOT SEL No booster activation signal 0
DI1 Digital input DI1. 1 = active, 0 = inactive. 1
DI2 See selection DI1.2
DI3 See selection DI1.3
DI4 See selection DI1.4
DI5 See selection DI1.5
DI1(INV) Inverted digital input DI1. 0 = active, 1 = inactive. -1
DI2(INV) See selection DI1(INV).-2
DI3(INV) See selection DI1(INV).-3
DI4(INV) See selection DI1(INV).-4
DI5(INV) See selection DI1(INV).-5
3623 BOOSTER
TIME
Defines the time inside which the booster is deactivated
after the booster activation signal is switched off.
00:00:00
00:00:00…
23:59:58
hours:minutes:seconds

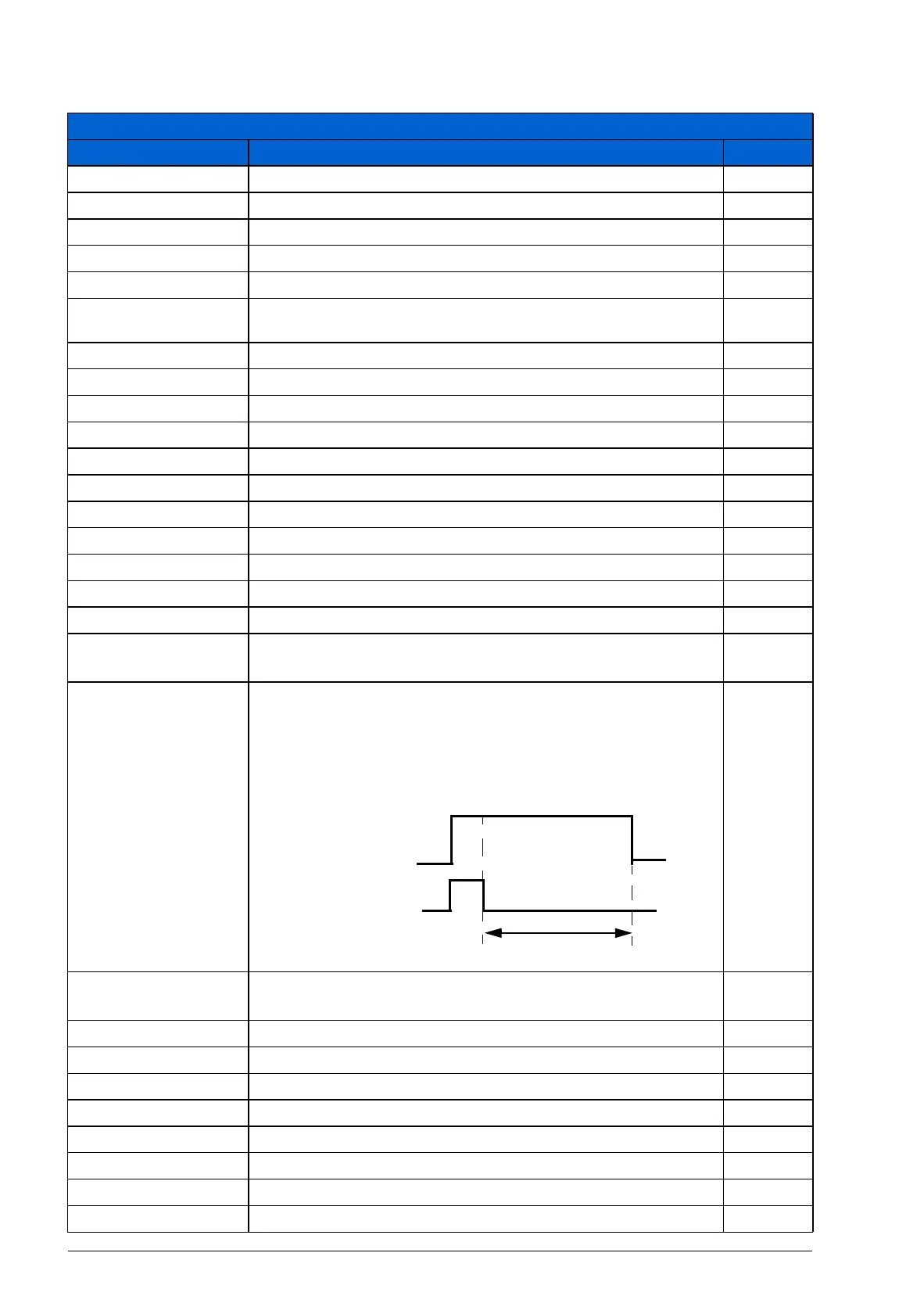

Example: If parameter 3622 BOOSTER SEL is set to DI1
and 3623 BOOSTER TIME is set to 01:30:00, the booster is
active for 1 hour and 30 minutes after digital input DI is
deactivated.
3626 TIMED FUNC 1
SRC
Selects the time periods for TIMED FUNC 1 SRC. Timed
function can consist of 0…4 time periods and a booster.
NOT SEL
NOT SEL No time periods selected 0
T1 Time period 1 1
T2 Time period 2 2
T1+T2 Time periods 1 and 2 3
T3 Time period 3 4
T1+T3 Time periods 1 and 3 5
T2+T3 Time periods 2 and 3 6
T1+T2+T3 Time periods 1, 2 and 3 7
All parameters
No. Name/Value Description Def/FbEq
Booster active
Booster time
DI
