Start-up, control with I/O and ID run 63

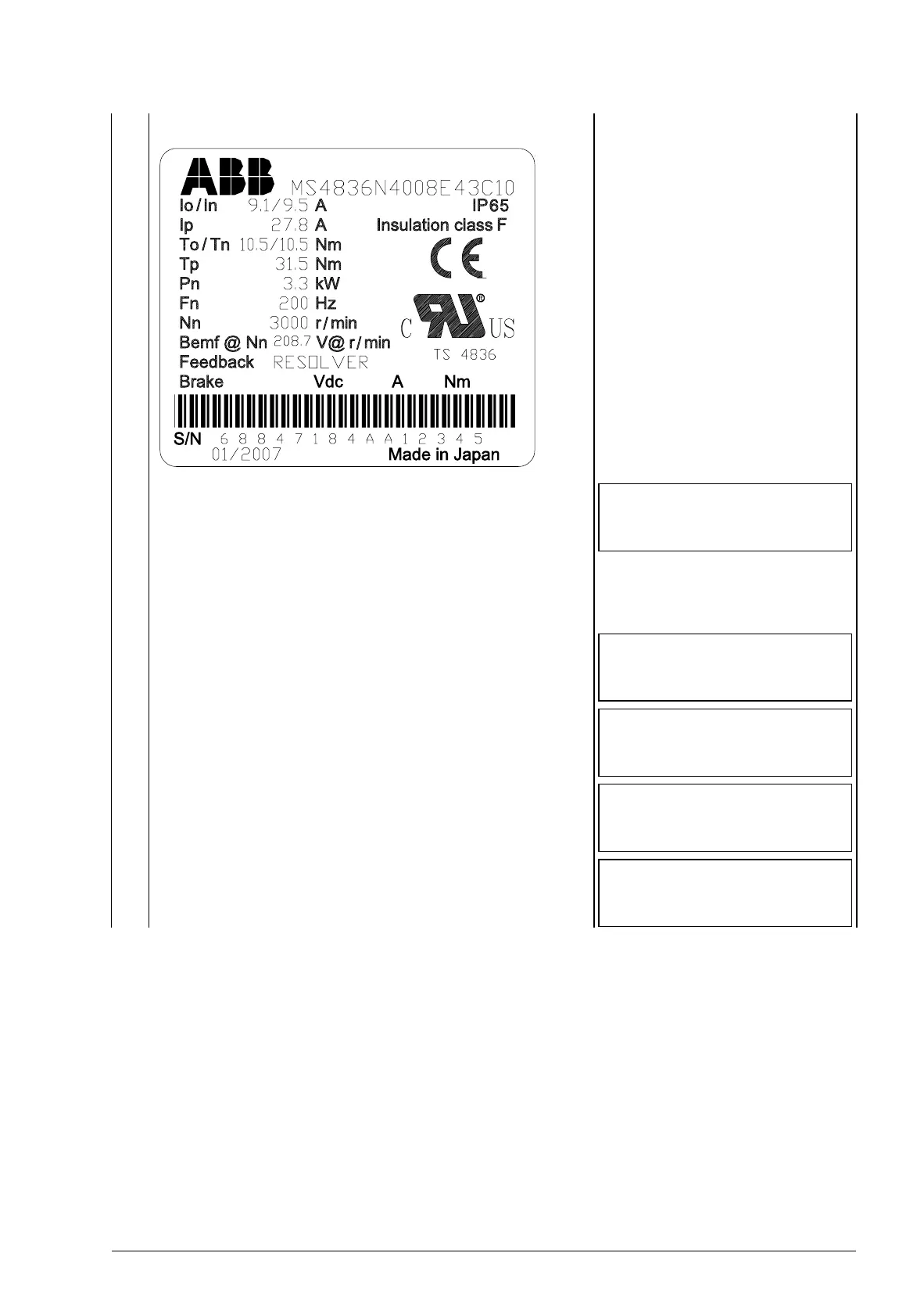

Permanent magnet motor nameplate example:
• motor nominal voltage (parameter 9905).
For permanent magnet motors, enter the back emf
voltage at nominal speed here. Otherwise use
nominal voltage and perform ID run.
If the voltage is given as voltage per rpm, eg 60 V per
1000 rpm, the voltage for 3000 rpm nominal speed is
3 · 60 V = 180 V.
• motor nominal current (parameter 9906)
Allowed range: 0.2…2.0 · I
2N
A
• motor nominal frequency (parameter 9907)
• motor nominal speed (parameter 9908)
• motor nominal power (parameter 9909)
