47
3 PROFILES…

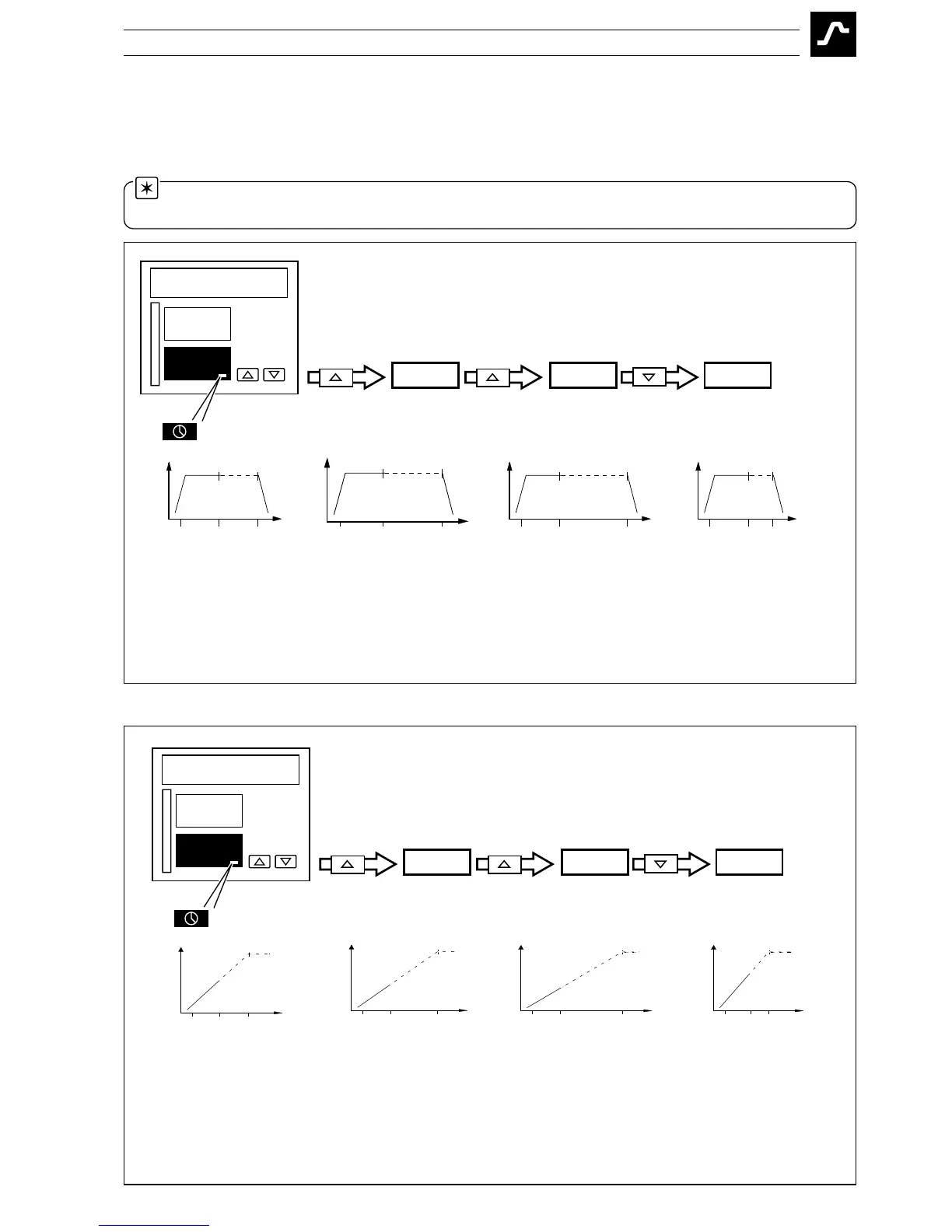

3.2.8 Current Segment Time Adjustment – Fig. 3.8 & 3.9
The Time Adjust function allows the time of a segment to be extended or reduced by a value preset in the 't.Adj'
frame – see
Ramp/Soak Profile Control Page. The segment time can be adjusted repeatedly (in preset increments)
while the segment is running, either from the controller faceplate or by a digital signal (assigned in the '
Inc.S' or
'
dEc.S' frames).
Note. Any changes made to the segment time using this function are not saved in the program memory.
At the end of the program, all segment times are reset to their original values.
Fig. 3.8a Time Adjustment on a Soak Segment
x3
Initial 40 minutes Ramp
Time. Lower display
shows time remaining
Ramp Time extended by
10 minutes to 50 minutes.
30 minutes remaining.
Ramp Time extended
a further 10 minutes
to 60 minutes. 40
minutes remaining
Ramp Time reduced by
30 minutes to 30 minutes,
10 minutes less than the
initial Ramp Time. 10
minutes remaining.
275.0
275.0
20.0
30.0 40.0 10.0
04020
05020
06020
03020
x3
Initial 60 minutes Soak
Time. Lower display
shows time remaining
Soak Time extended by
5 minutes to 65 minutes.
35 minutes remaining
Soak Time extended a
further 5 minutes to 70
minutes. 40 minutes
remaining
Soak Time reduced by
15 minutes to 55 minutes,
5 minutes less than the
initial Soak Time
275.0
275.0
30.0
35.0 40.0 25.0
03060
0 30 65 0 30 70
03055
Fig. 3.8b Time Adjustment on a Ramp Segment
