50
OFF
rSt.S
r.09
OFF
SKP.b
r.08
OFF
SKP.F
r.07
OFF
HLd.S
r.06
OFF
ENd.S
r..10
Hold mode
Running
Reset End of Profile Event State
Reset Program
Skip Backward
Skip Forward
•1
•1
•1
•1
•1
…3 PROFILES
Program Hold Source
The hold source is leading edge triggered.
See Rear Fold-out/Table C,
Digital Sources.
The program is restarted using the
Program Run Source or the front panel
keys.
Segment Skip Forward Source
Select the source required to skip to the next segment.
See Rear Fold-out/Table C,
Digital Sources.
Note. If the segment running is the last segment of the program, the
program is stopped. The skip source is leading edge triggered.
Segment Skip Backward Source
Select the source required to skip back to the beginning of the ramp/soak
segment running. The skip source is leading edge triggered.
See Rear Fold-out/Table C,
Digital Sources.
Program Reset Source
Select the source required to reset a running program. The reset source
is leading edge triggered.
See Rear Fold-out/Table C,
Digital Sources.
Note. If the program is running normally and is reset, the program
returns to the beginning of the first segment and continues to run. If the
program is on hold and is reset, the program returns to the beginning of
the first segment and stops. No action is taken if a program has already
finished.
End of Profile Event Reset Source
The end of profile event state is set automatically when the program is
complete. A digital source can be activated to cause the end of profile
event state to be reset.
Select the source required to reset the end of profile event state.
See Rear Fold-out/Table C,
Digital Sources.
Note. If 'NONE' is selected, the end of profile event state is reset
automatically after 2 seconds.
Continued…

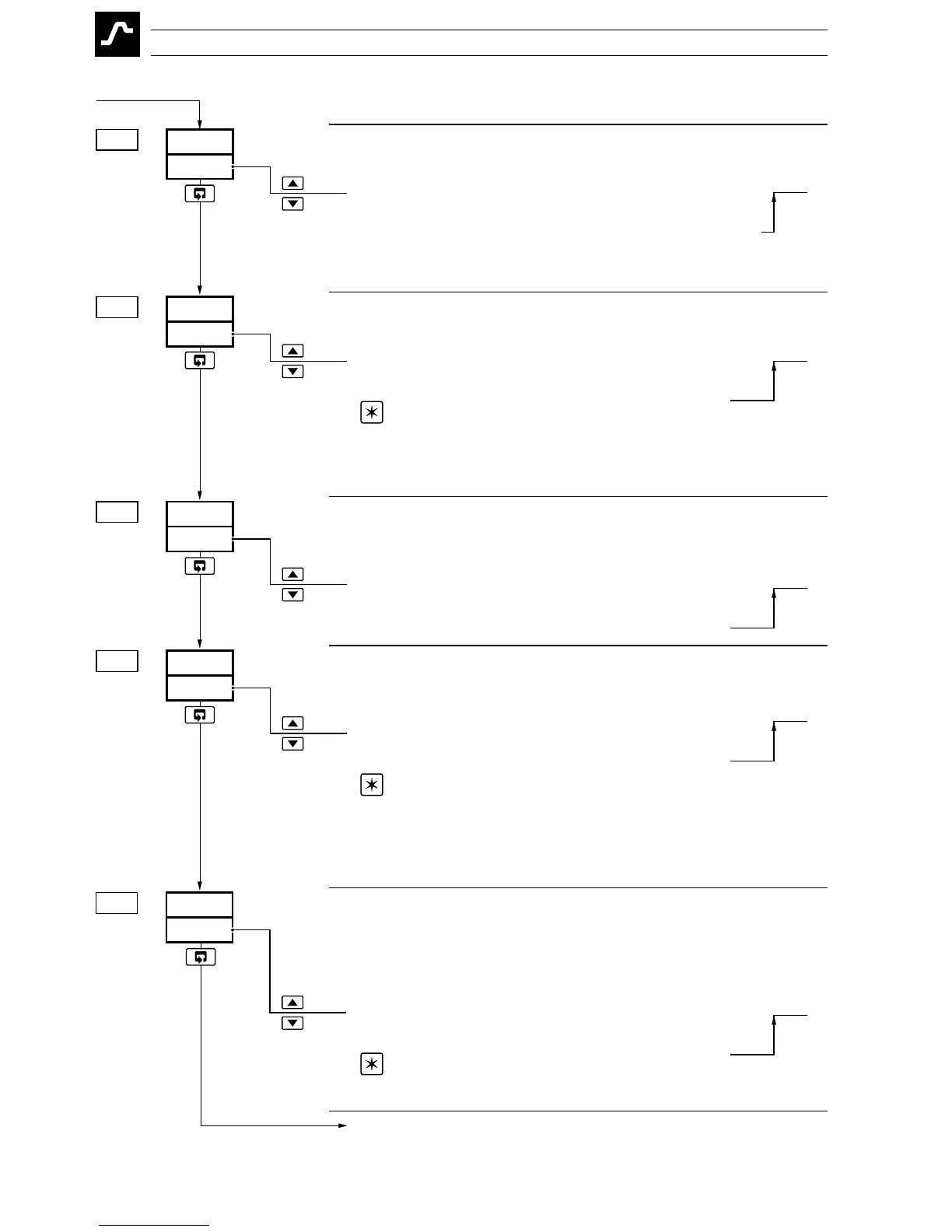

…3.4 Ramp/Soak Profile Control r.06...r.10
•1 A digital input becomes active when a volt-free contact is closed or a low TTL signal is applied.
