Operating Instructions
CAUTION
Observe safety
instructions

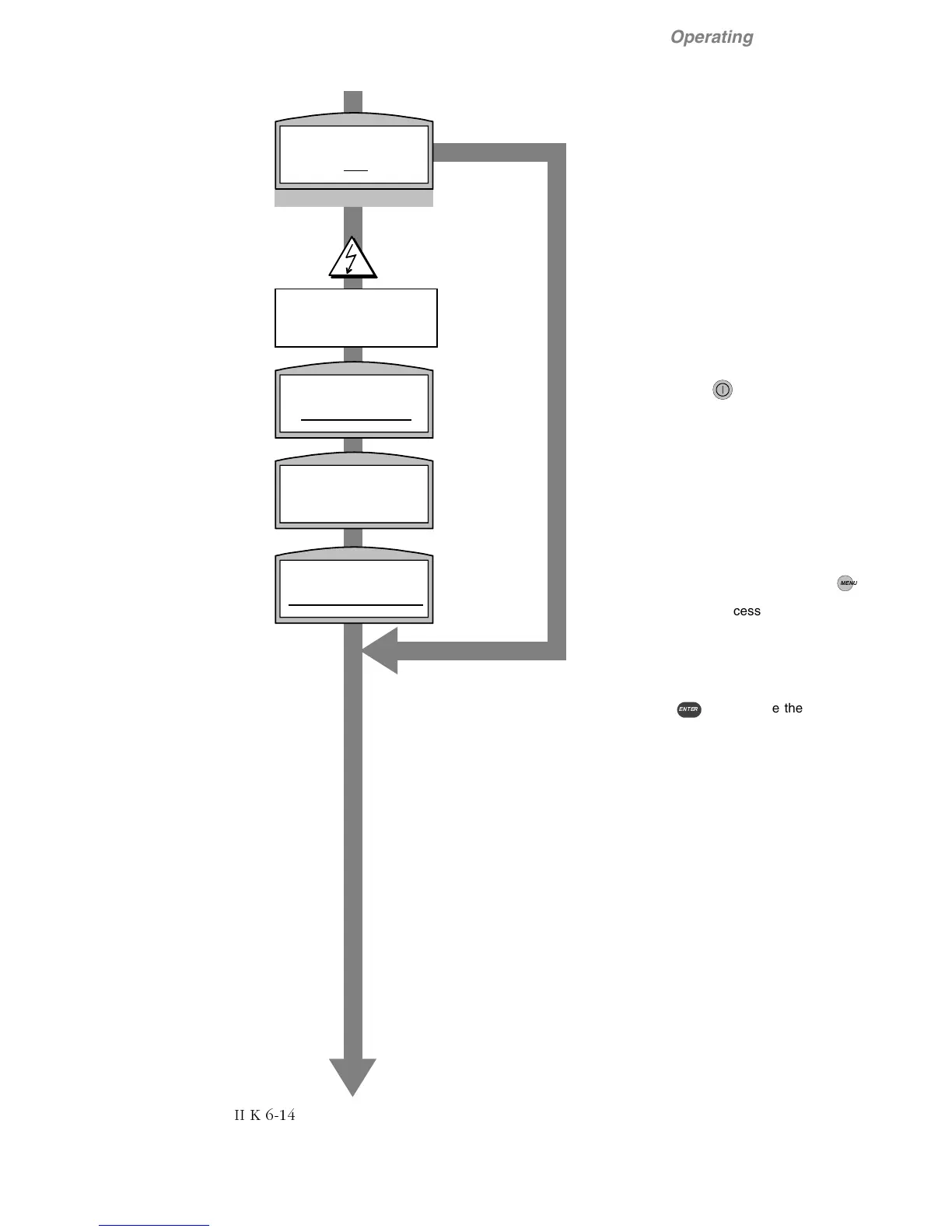

Speed controller optimization
Select and confirm.
Commissioning step Comments
Start Drive
Press (I)
OUTPUT MENU AUTO OFF HAND REM
LOC <RUN>
Please wait
OUTPUT MENU AUTO OFF HAND REM
LOC <RUN>
Success
Press Enter
OUTPUT MENU AUTO OFF HAND REM
LOC <RUN>
Press key on panel to switch
on and enable the drive.
Optimization running.
The drive will accelerate twice to
80% of Base Speed.
If any faults or alarms have oc-
cured during optimization, fur-
ther action depends on the mes-
sages displayed; see chapter
Troubleshooting. To repeat the
optimization process, press
0(18
After successful optimization,
the following parameters have
been set:
5.07 - Proportional component
5.08 - Integral component
(17(5
will continue the commis-
sioning procedure.
Yes
Speed Autotuning?
No
OUTPUT MENU A UT O OFF HA ND REM
LOC <RUN>
CAUTION
Motor will accelerate twice up to
80% of Base Speed!
