Operating Instructions

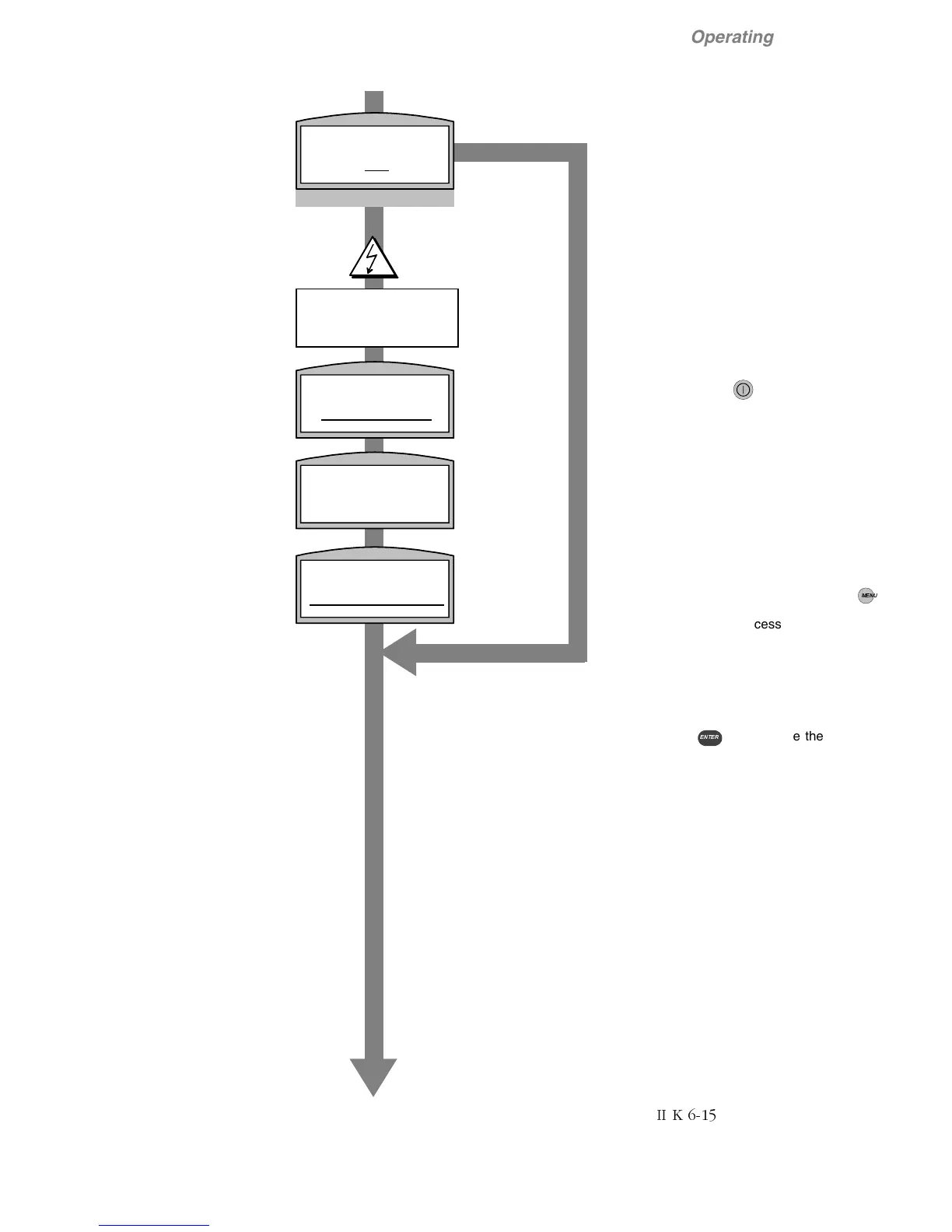

Commissioning step Comments
Yes
Flux Adaptation?
No
OUTPUT MENU A UT O OFF HA ND REM
LOC <RUN>
CAUTION
Observe safety
instructions
Flux optimization
only available in Field weaken-
ing Mode.
Press key on panel to switch
on and enable the drive.
Optimization running.
The drive will accelerate to 50%
of Base Speed.
If any faults or alarms have oc-
cured during optimization, fur-
ther action depends on the mes-
sages displayed; see chapter
Troubleshooting. To repeat the
optimization process, press
0(18
After successful optimization,
the following parameters have
been set:
4.07 - I
e
for 40% flux
4.08 - I
e
for 70% flux
4.09 - I
e
for 90% flux
(17(5
will continue the commis-
sioning procedure.
Start Drive
Press (I)
OUTPUT MENU AUTO OFF HAND REM
LOC <RUN>
Please wait
OUTPUT MENU AUTO OFF HAND REM
LOC <RUN>
Success
Press Enter
OUTPUT MENU AUTO OFF HAND REM
LOC <RUN>
CAUTION
Motor will accelerate up to 50%
of Base Speed!
