Parameters
AC/S 1.x.1 | 2CDC508198D0211 Rev. A 105

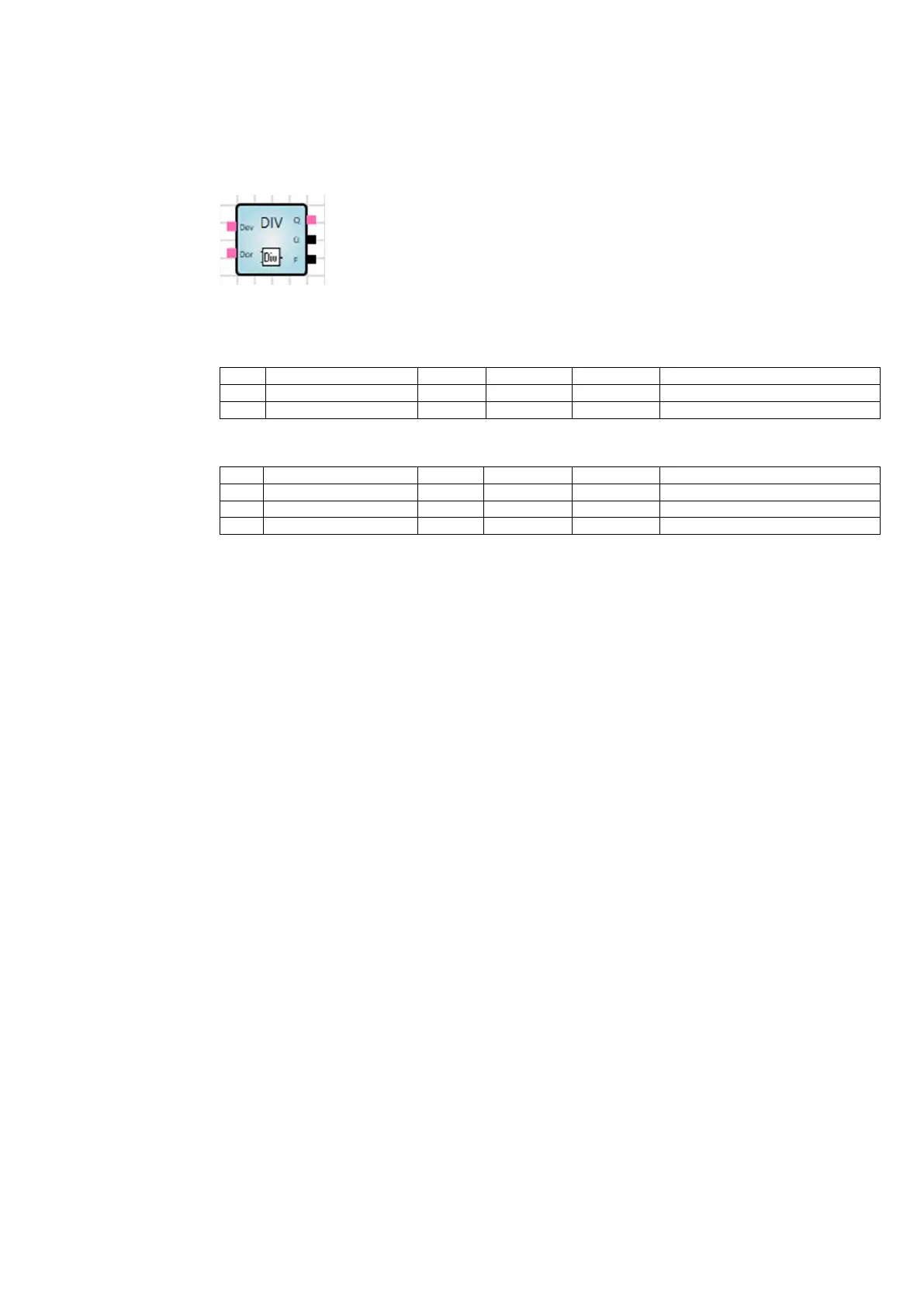

Division (DIV)
Divides one input value (dividend) by another (divisor).
Inputs
No.
DPT
Abbr.
Name
Visible
Description
1
8 bits or higher
Dev
Dividend
Always
2
Same as input 1
Dor
Divisor
Always
Outputs
No.
DPT
Abbr.
Name
Visible
Description
1
Same as input 1
Q
Quotient
Always
2
1 bit
Ü
Overflow
Always
Indicates an overflow
3
1 bit
F
Error
Always
Indicates a division by 0
Parameters
None
Function
Whenever a telegram is received the output starts a recalculation independently if the value has changed.
An overflow will occur if the value from the division is outside the DPT range:
• If the value from the division is greater than the maximum DPT value:
o Q = 0
o Ü = 1 (true)
o F = 0 (false)
• If the value from the division is less than the minimum DPT value:
o Q = 0
o Ü = 1 (true)
o F = 0 (false)
• If the value from the division is within the valid range of the DPT:
o Q = Quotient of the two input values (dividend: divisor)
o Ü = 0 (false)
o F = 0 (false)
• Value of the divisor = 0:
o Q = 0
o Ü = 0 (false)
o F = 1 (true)
Other
Inputs not connected are treated as if they did not exist.
