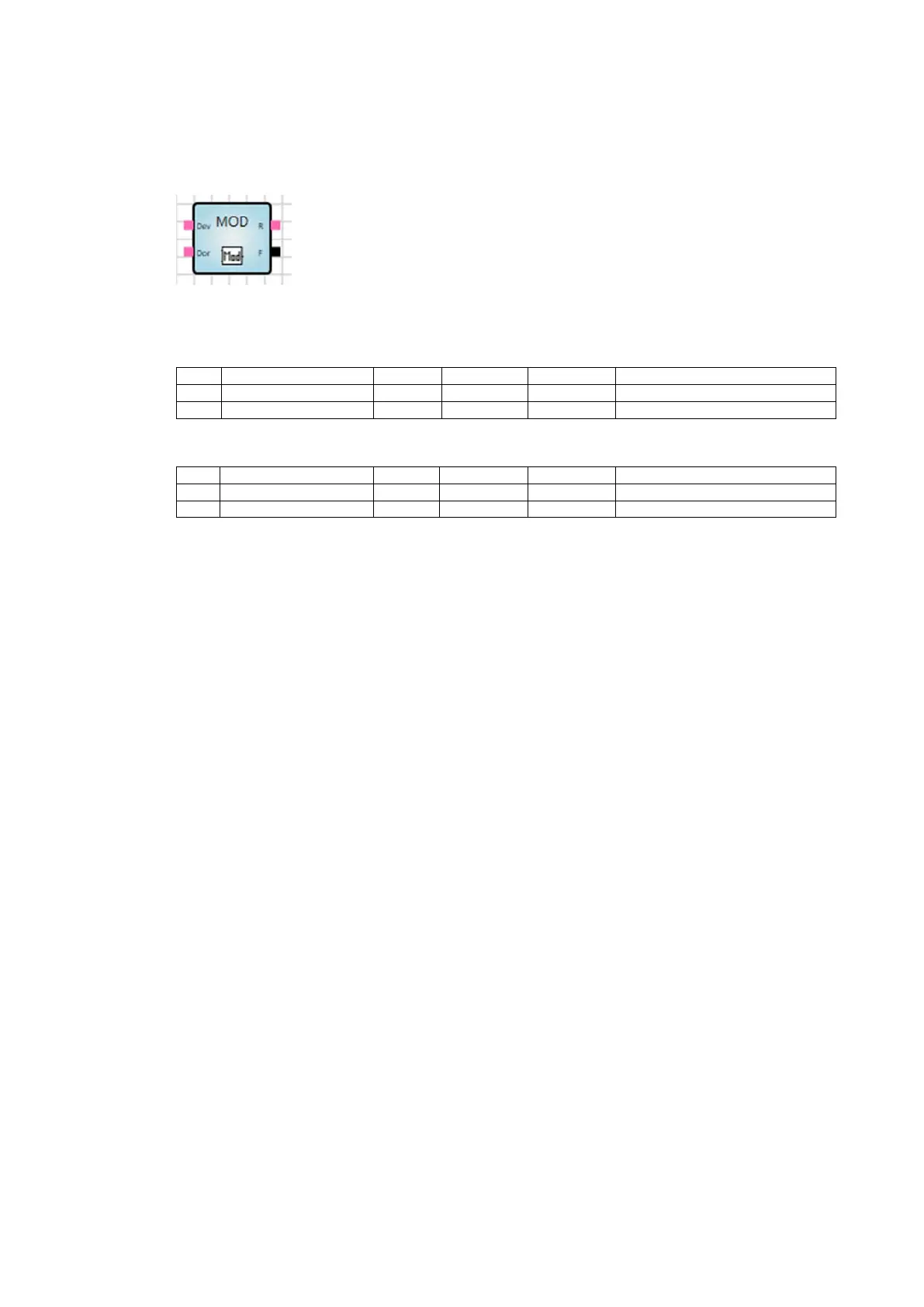

Modulo (MOD)
Calculates the remainder from dividing one input value (dividend) by another (divisor).
Inputs
No.
DPT
Abbr.
Name
Visible
Description
1
8 bits or higher
Dev
Dividend
Always
2
Same as input 1
Dor
Divisor
Always
Outputs
No.
DPT
Abbr.
Name
Visible
Description
1
Same as input 1
R
Remainder
Always
Remainder of the division
2
1 bit
F
Error
Always
Indicates a division by 0
Parameters
None
Function
Whenever a telegram is received the output starts a recalculation independently if the value has changed.
Remainder and error:
• The dividend is divided by the divisor and the value from the division is within the valid range of the
DPT. Output of the remainder:
o R = value
o F = 0 (false)
• The input is not connected or the value of the divisor = 0:
o R = 0
o F = 1 (true)
Other
Inputs not connected are treated as if they did not exist.
