Monitor
Use the Monitor function to view the current states of the logic in the device in real time. The function
requires a network connection to the device. To start the monitor, click the following icon:
The plug-in then tries to establish a connection to the logic controller. It takes the IP address from the ETS
settings (Properties > "IP" tab).
While using Monitor mode, the "Monitor Mode" option in the application controller web user interface
settings must be enabled. This is disabled by default for security reasons.
When a connection has been established, the current states of the input sockets, output sockets and the
internal links are displayed.
Note that the Monitor function can only work if the logic in the device and the plug-in is the same.

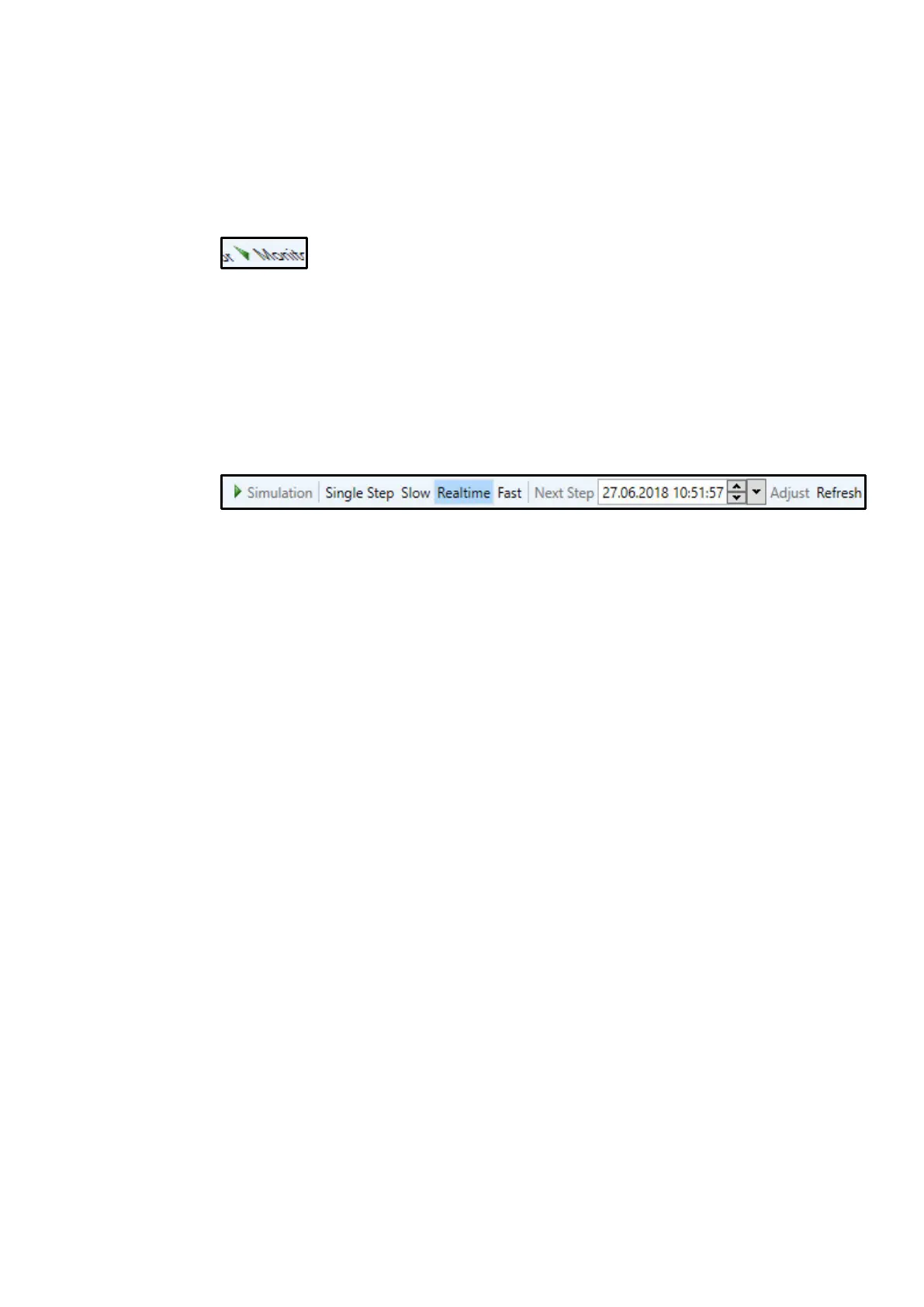

Simulation
Simulation/Stop
Starts and stops the simulation.
Speeds:
Used to select simulation speeds.
Important for simulating timer functions such as the Calendar function.
Single Step
Clicking Next Step starts a calculation cycle.
Slow
Around 50 times slower than real time.
Realtime
The simulation is in real time.
Fast
1 second in the simulation is 1 hour in real time.
Simulation time
Sets the simulation time and date.
Adjust
button:
Applies the set
ting.
Refresh
button:
Synchronizes the date and time with the real time of the PC.
