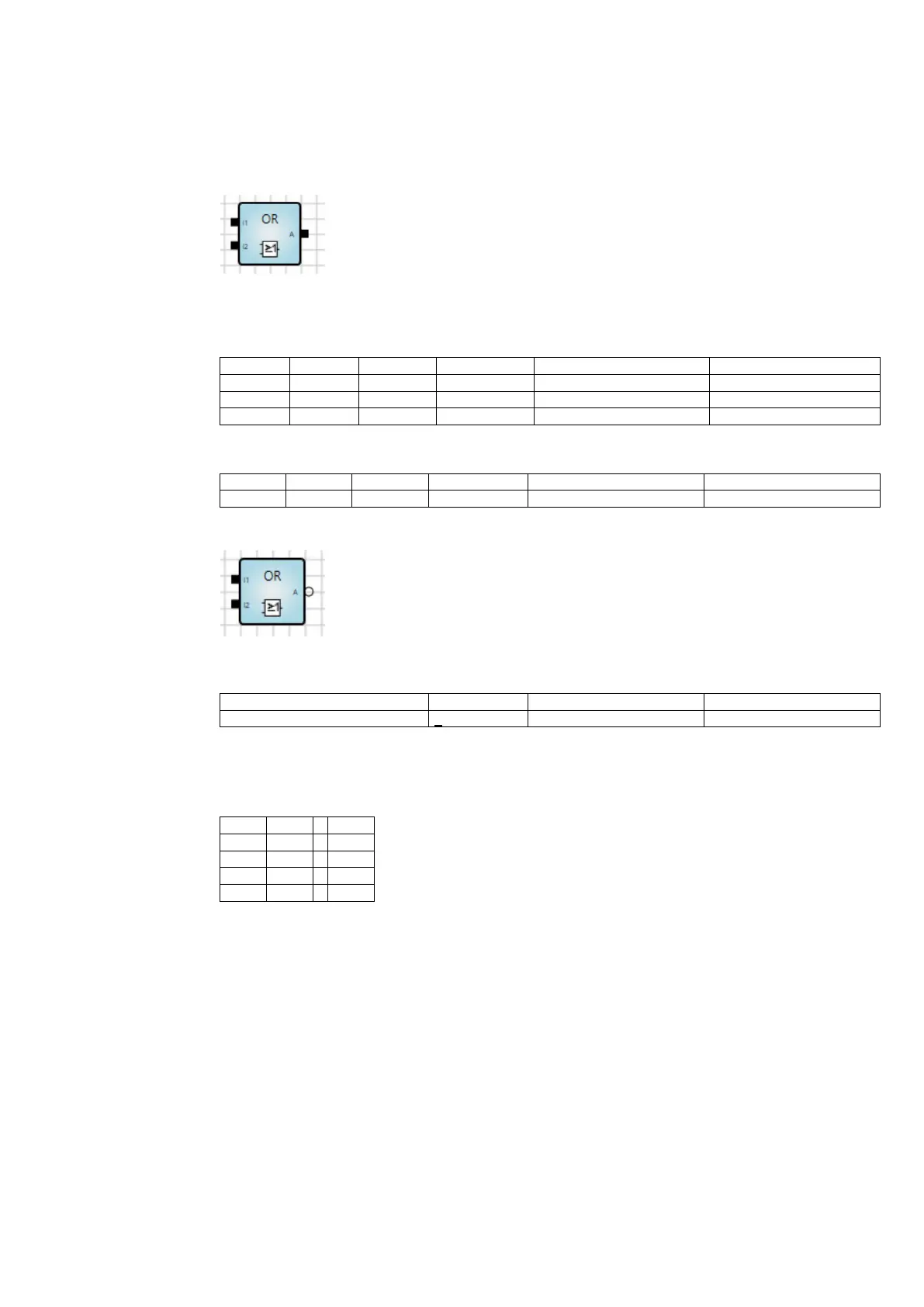

OR (OR)
Logical OR operator.
Inputs
No.
DPT
Abbr.
Name
Visible
Description
1
1 bit
I
1
Input
Always
2
1 bit
I
2
Input
Always
3-16
1 bit
I
n
Input
Parametrizable
n = 3...16
Outputs
No.
DPT
Abbr.
Name
Visible
Description
1
1 bit
A
Output
Always
An OR element can be easily inverted to a NOR element by double-clicking the output.
Parameters
Name
Value
Visible
Description
Input count
2...16
Always
Function
Whenever a telegram is received the output starts a recalculation independently if the value has changed.
The output is 1 (true) if at least one input is 1 (true).
I
1
I
2
A
0
0
0
0
1
1
1
0
1
1
1
1
Other
Inputs not connected are treated as if they did not exist.
