Application example
You want to ensure that from a set of outputs, exactly one has the value 1 while the other outputs are 0.

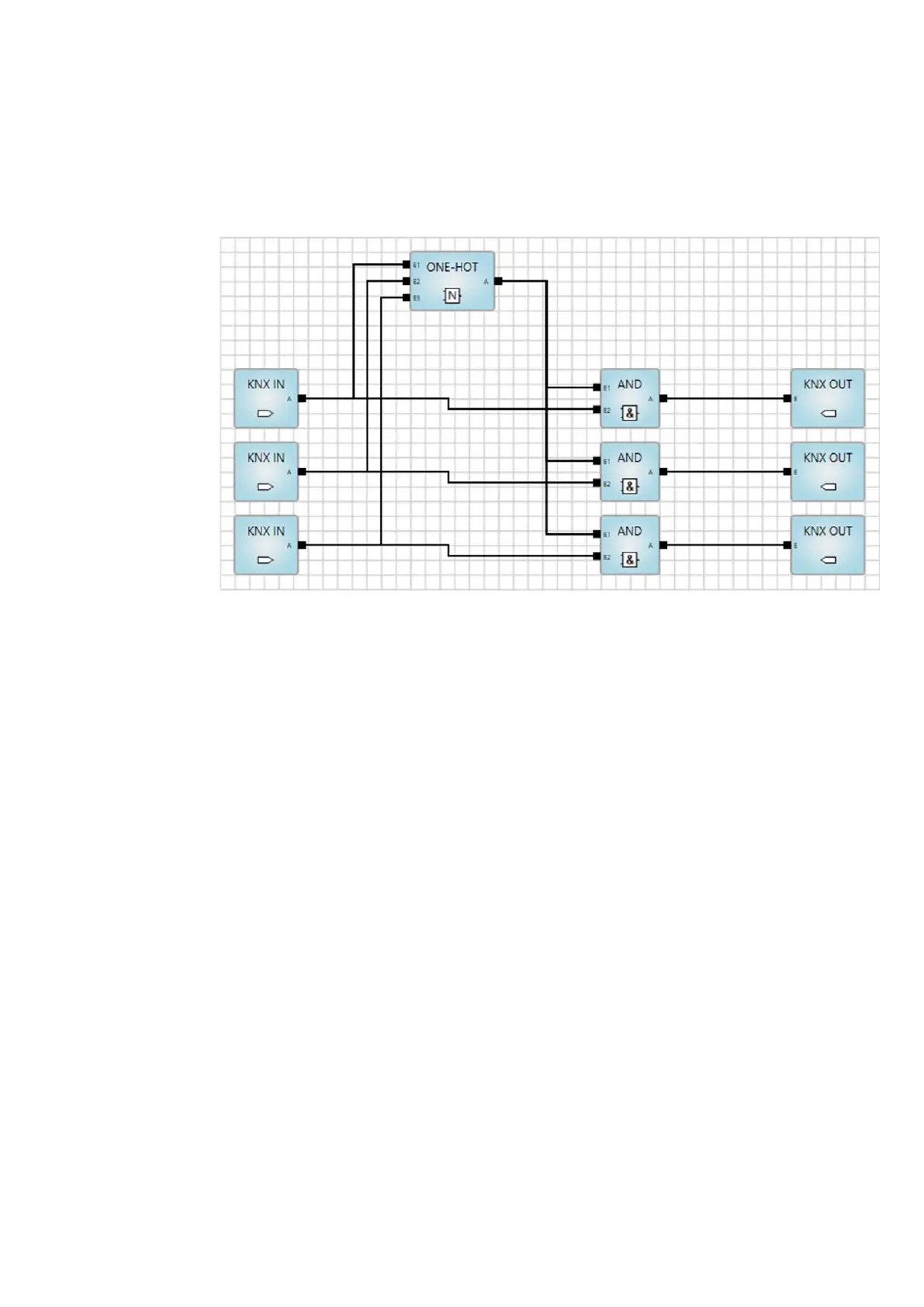

The circuit shown ensures that this is the case.
If more than one of the three input values is 1, this results in a 1ofN operator is equal to 0. The AND logic
gates therefore force the three output values to 0.
Other
Inputs not connected are treated as if they did not exist.
