NoteAction
Route and secure the cabling with cable straps.
CAUTION
Correct cable routing is highly important.
If the cables are routed and secured incorrectly
the cables can be damaged.
4
Screw: M4x10 12.9 Lafre
2C2B/FC6.9 (8 pcs)

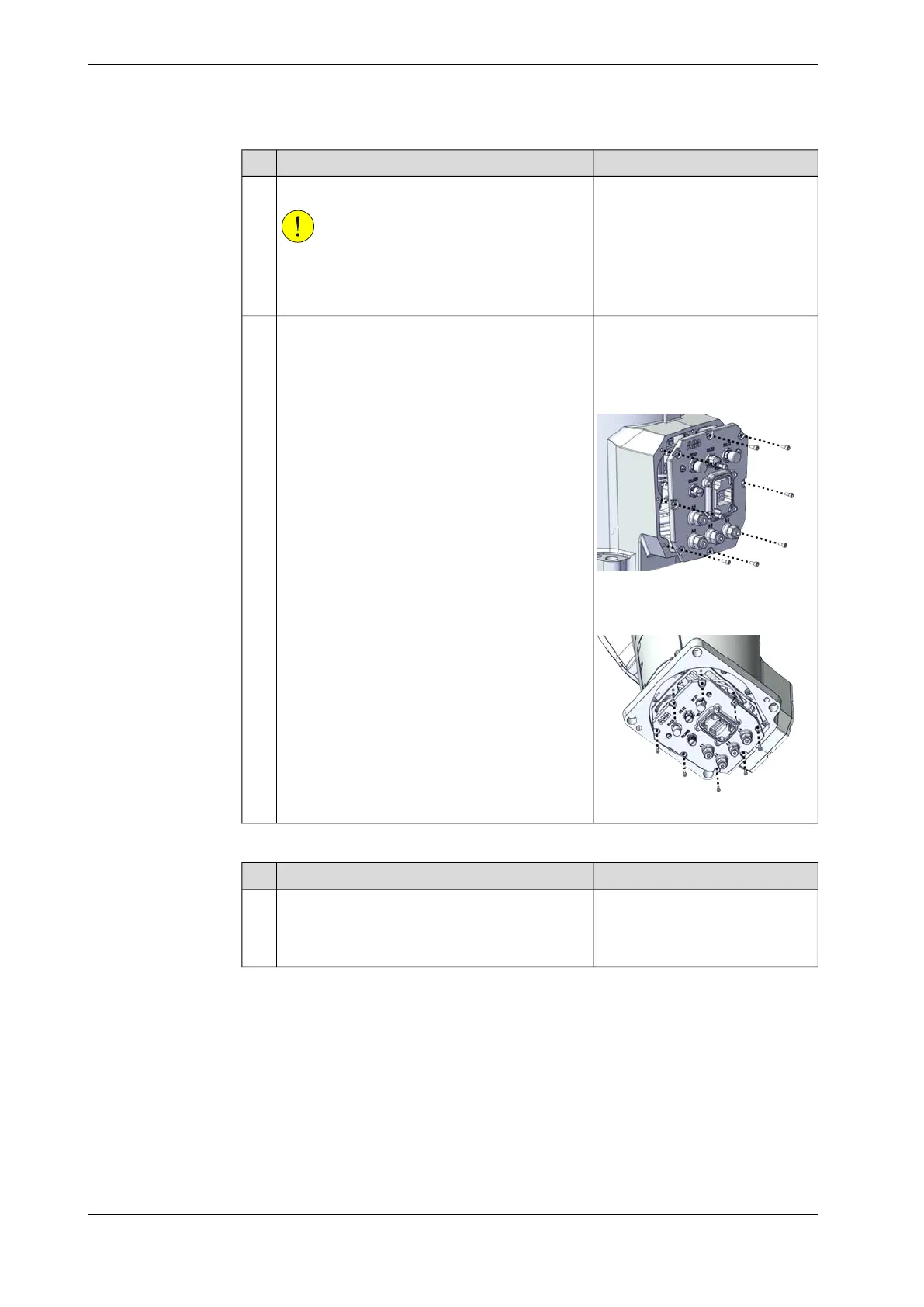

Refit the connector interface plate to the base.5
Tightening torque: 2.6 Nm
Valid for cabling with rear inter-
face
xx2000001558
Valid for cabling with bottom inter-
face (option 3309-1)
xx2000001575
Refitting the covers
NoteAction
For robots with protection type Clean Room:1
Clean the joints that have been opened and wipe
the parts free from particles with spirit on a lint
free.
Continues on next page
190 Product manual - IRB 1300
3HAC070390-001 Revision: G
© Copyright 2020-2022 ABB. All rights reserved.
5 Repair
5.3.1 Replacing the cable package
Continued
