ABB IRB 920 - Page 218

NoteAction
For robots with protection class
IP30 (option 3350-300)
xx2100000943
Remove the screws.3
Remove the cover.
Note
For robots with protection class IP54 (option 3350-
540)
For robots with protection type Clean Room (op-
tion 3351-1)
Remove the cover and check the gasket.
Tip
Replace the gasket if needed.
4
For robots with protection class
IP54 (option 3350-540)
For robots with protection type
Clean Room (option 3351-1)
xx2100002451

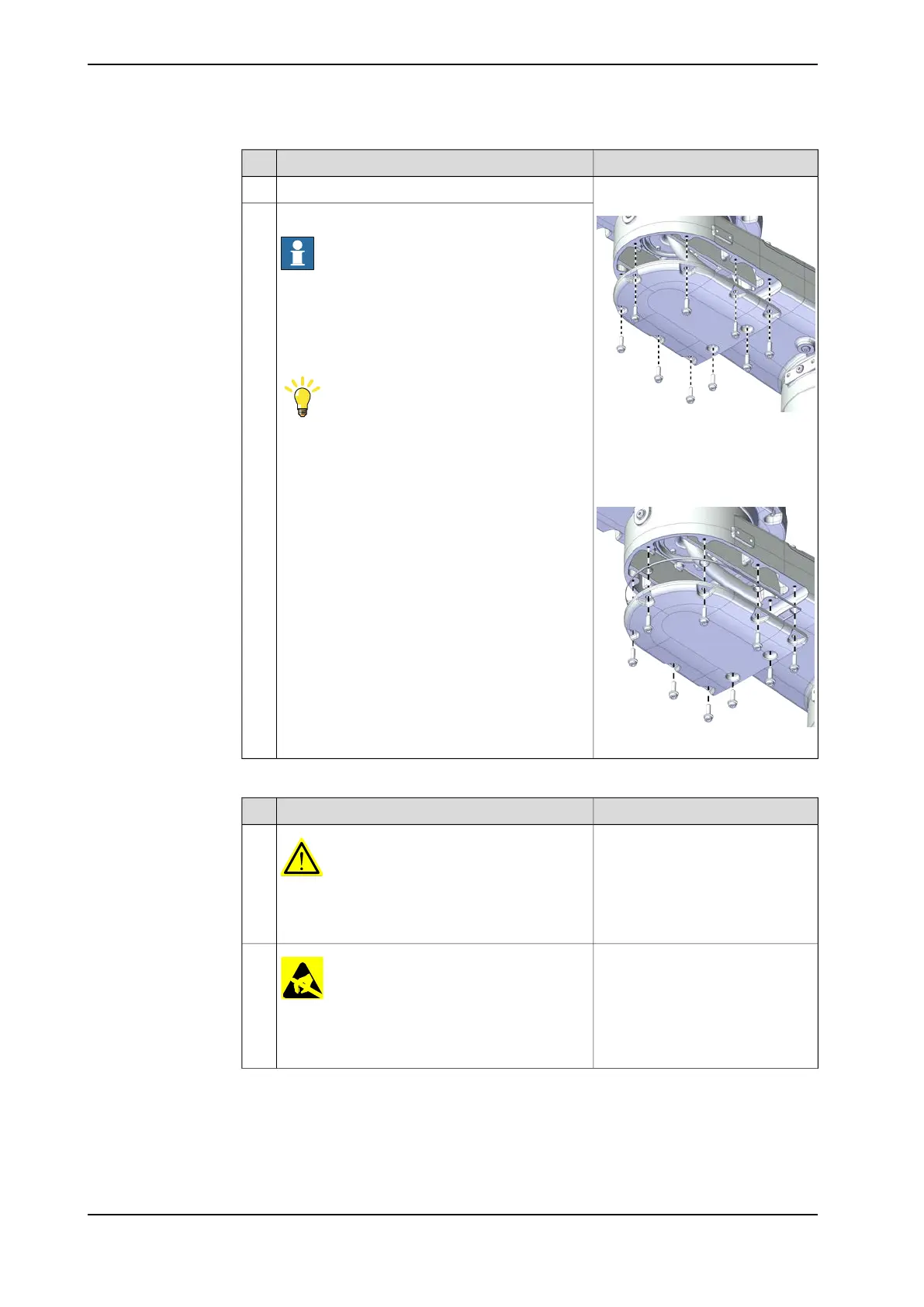

Removing the SMB cover
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
ELECTROSTATIC DISCHARGE (ESD)
The unit is sensitive to ESD. Before handling the
unit read the safety information in section The
unit is sensitive to ESD on page 49.
2
Continues on next page
218 Product manual - IRB 920
3HAC075721-001 Revision: C
