ABB IRB 920 - Page 302

NoteAction

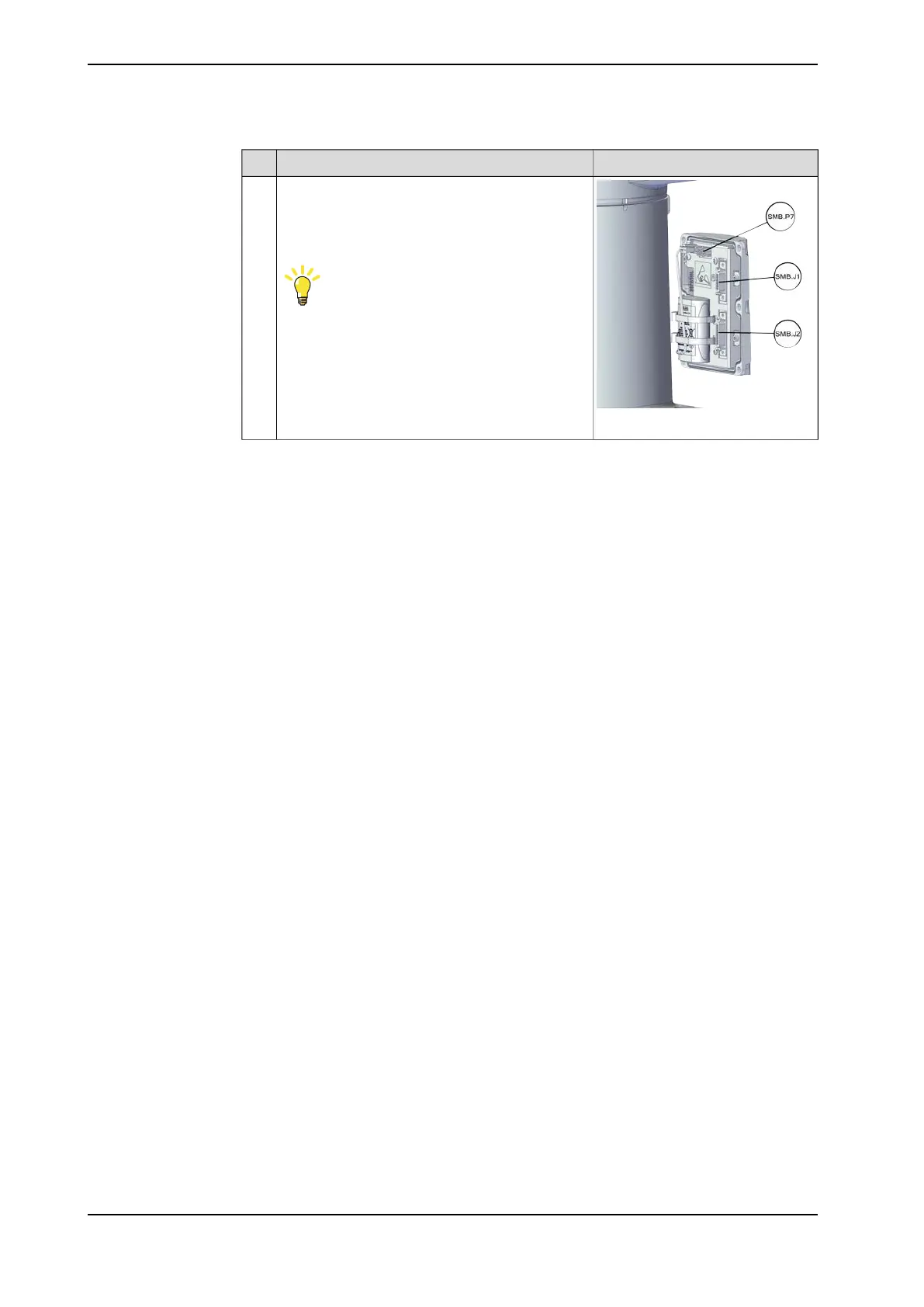

xx2100000945
Reconnect the connectors.
• SMB.P7
• SMB.J1
• SMB.J2
Tip
Take photos of the connector and cable position
before disconnecting them, to have as a reference
when reconnecting.
2
Continues on next page
302 Product manual - IRB 920
3HAC075721-001 Revision: C
© Copyright 2022 ABB. All rights reserved.
5 Repair
5.4.2 Replacing the axis-1 timing belt
Continued
