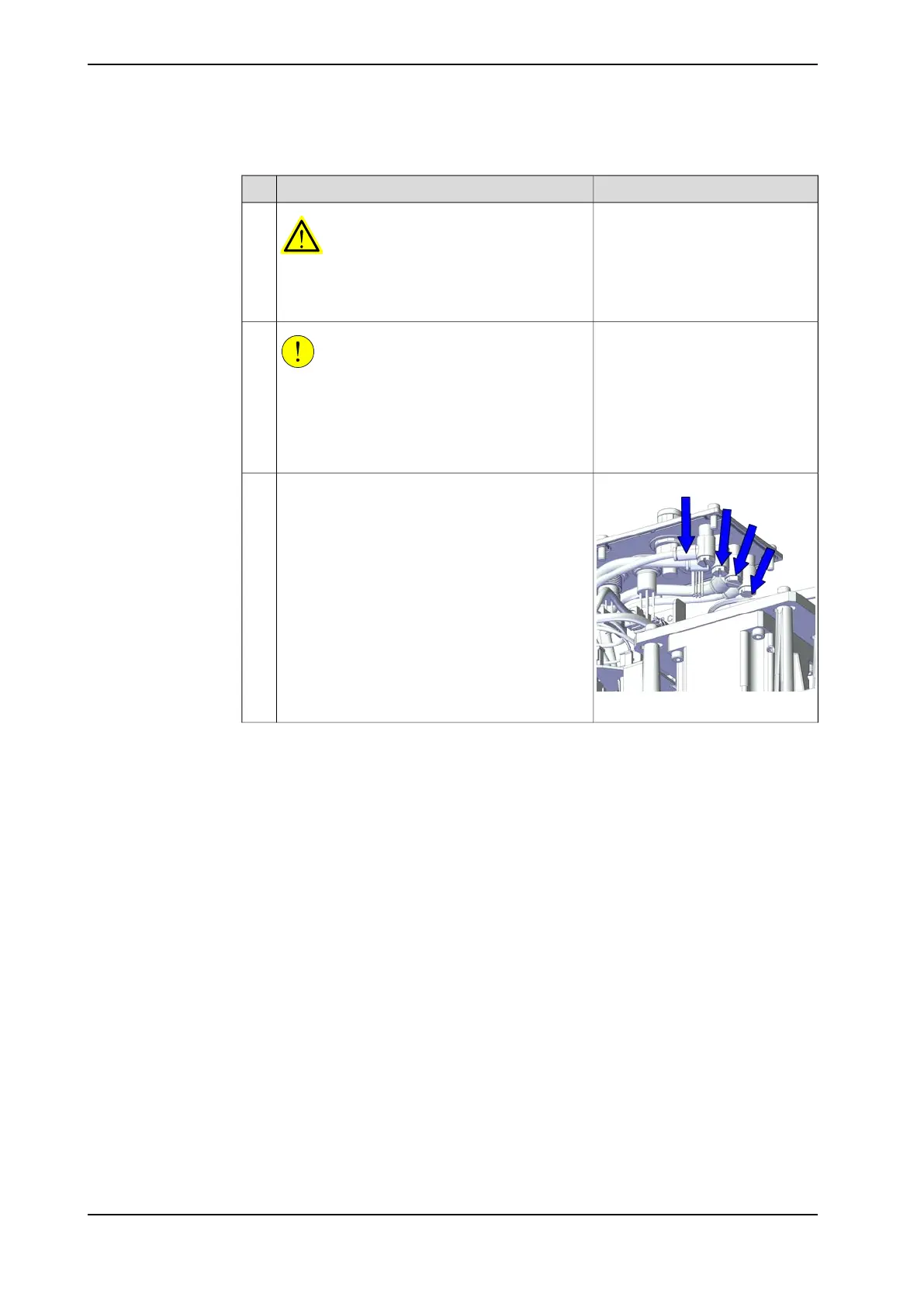

Disconnecting the air hoses, C1 cabling and C2 cabling (if equipped)
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
CAUTION
For robots with protection type Clean Room
Always cut the paint with a knife and grind the
paint edge when disassembling parts of the robot!
See Cut the paint or surface on the robot before
replacing parts on page 118.
2
xx2100001032
Disconnect the air hoses from the L-shaped con-
nectors.
3
Continues on next page
332 Product manual - IRB 920
3HAC075721-001 Revision: C
© Copyright 2022 ABB. All rights reserved.
5 Repair
5.5.1 Replacing the inner arm
Continued
