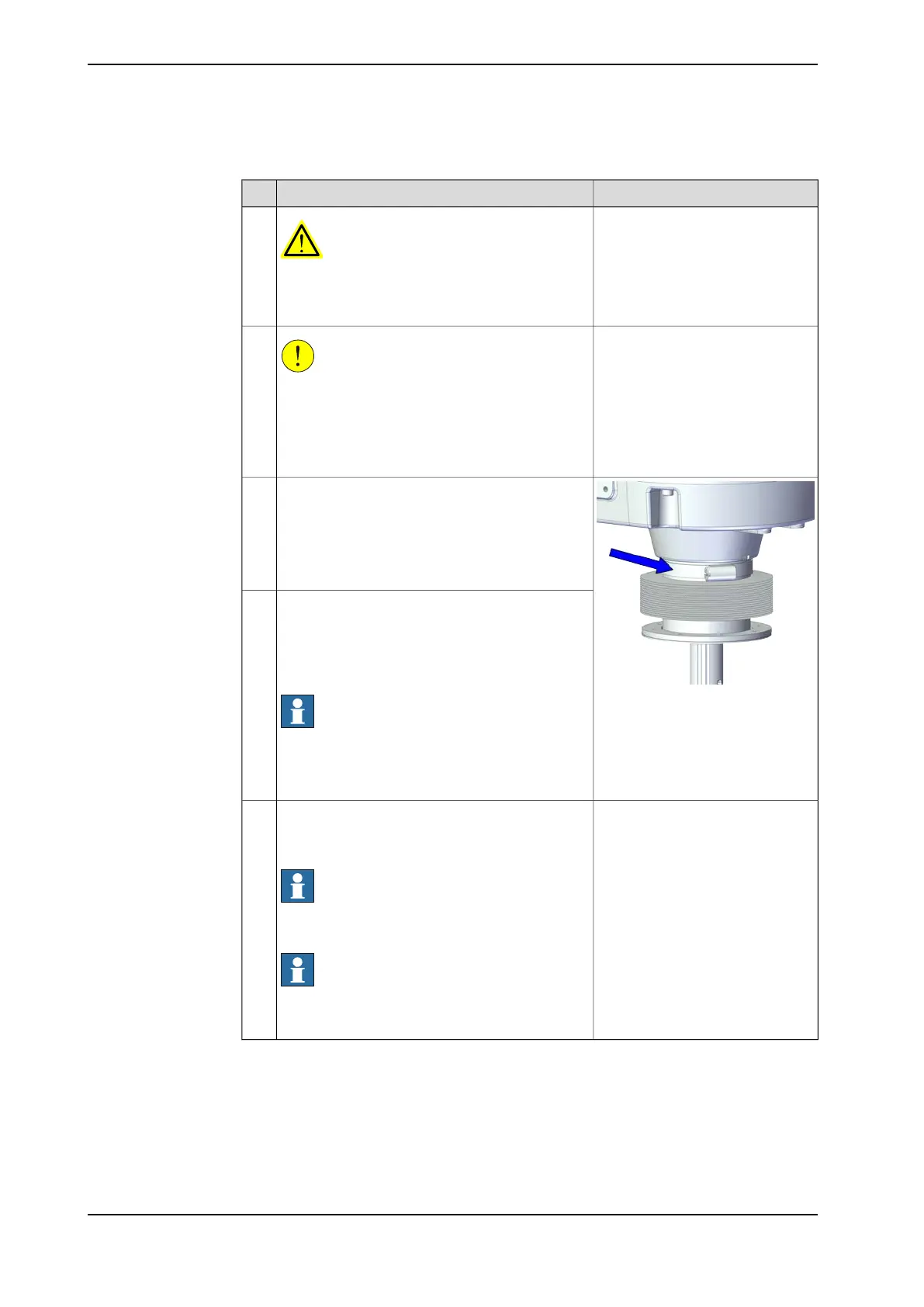

Removing the lower bellow
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
CAUTION
For robots with protection type Clean Room
Always cut the paint with a knife and grind the
paint edge when disassembling parts of the robot!
See Cut the paint or surface on the robot before
replacing parts on page 118.
2
xx2100002408
For robots with protection class IP54 (option 3350-
540)
For robots with protection type Clean Room (op-
tion 3351-1)
Loosen the upper bellow clamp by loosening the
screw and pull the clamp apart slightly.
3
For robots with protection class IP54 (option 3350-
540)
For robots with protection type Clean Room (op-
tion 3351-1)
Remove the bellow from the outer arm.
Note
For robots with protection class IP54 (option 3350-
540)
Clean the bellow from the glue if it will be reused.
4
For robots with protection class IP54 (option 3350-
540)
5
Remove the bellow gasket from the bellow.
Note
Clean the bellow gasket from the glue if it will be
reused.
Note
Be careful when removing the bellow gaskets. If
any broken, replace it.
