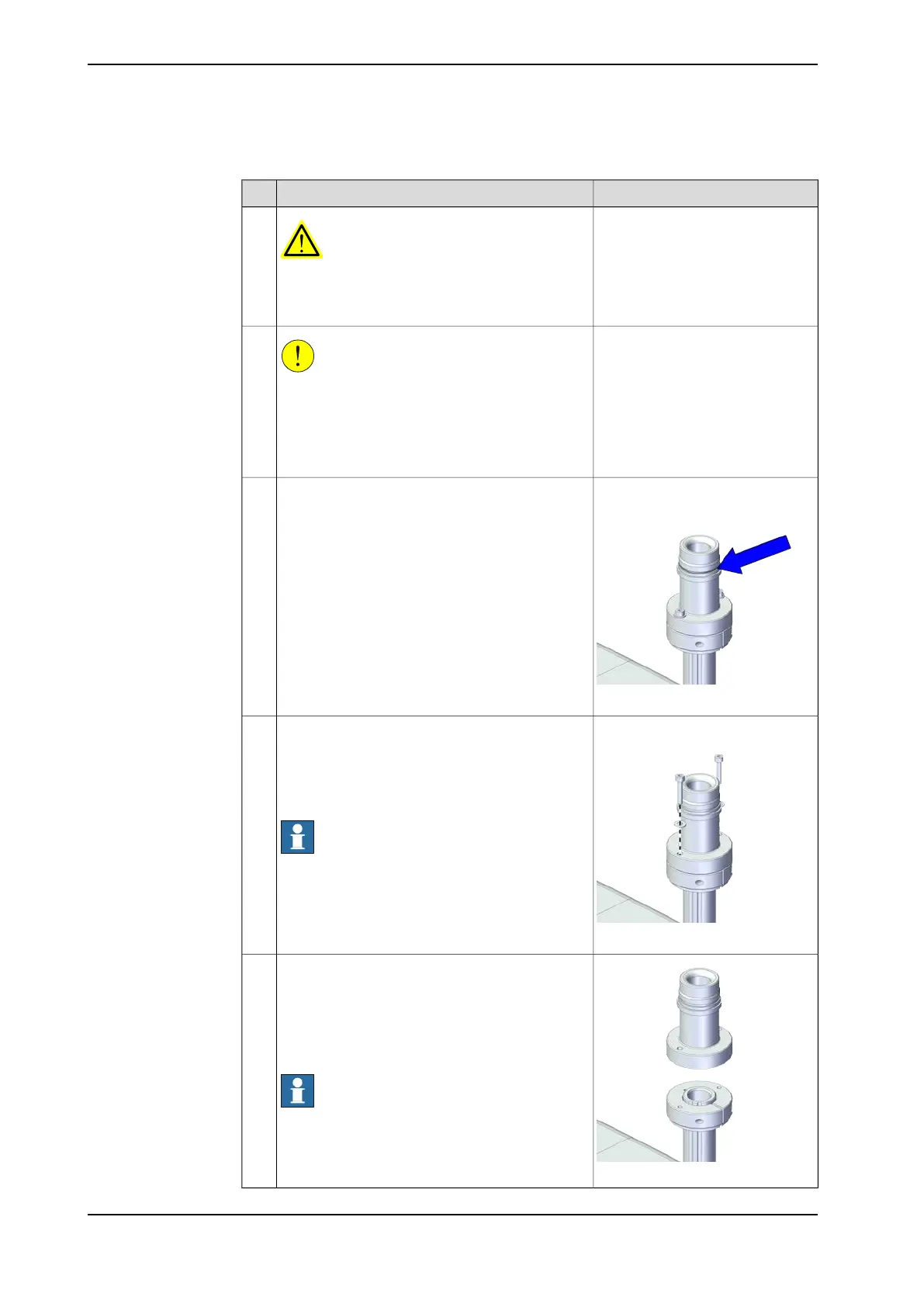

Removing the extension shaft for Clean Room/ IP54 robots
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
CAUTION
For robots with protection type Clean Room
Always cut the paint with a knife and grind the
paint edge when disassembling parts of the robot!
See Cut the paint or surface on the robot before
replacing parts on page 118.
2
xx2100002419
For robots with protection class IP54 (option 3350-
540)
For robots with protection type Clean Room (op-
tion 3351-1)
Remove the O-ring from the upper housing.
3
xx2100002420
For robots with protection class IP54 (option 3350-
540)
For robots with protection type Clean Room (op-
tion 3351-1)
Loose the attachment screws.
Note
For robots with protection class IP54 (option 3350-
540)
Clean the upper housing from the glue if it will be
reused.
4
xx2100002421
For robots with protection class IP54 (option 3350-
540)
For robots with protection type Clean Room (op-
tion 3351-1)
Remove the extension shaft from the mechanical
stopper.
Note
For robots with protection class IP54 (option 3350-
540)
Check the gasket for the extension shaft and re-
place it if needed.
5
Continues on next page
494 Product manual - IRB 920
3HAC075721-001 Revision: C
© Copyright 2022 ABB. All rights reserved.
5 Repair
5.6.5 Replacing the ball screw
Continued
