NoteAction
xx2100001092

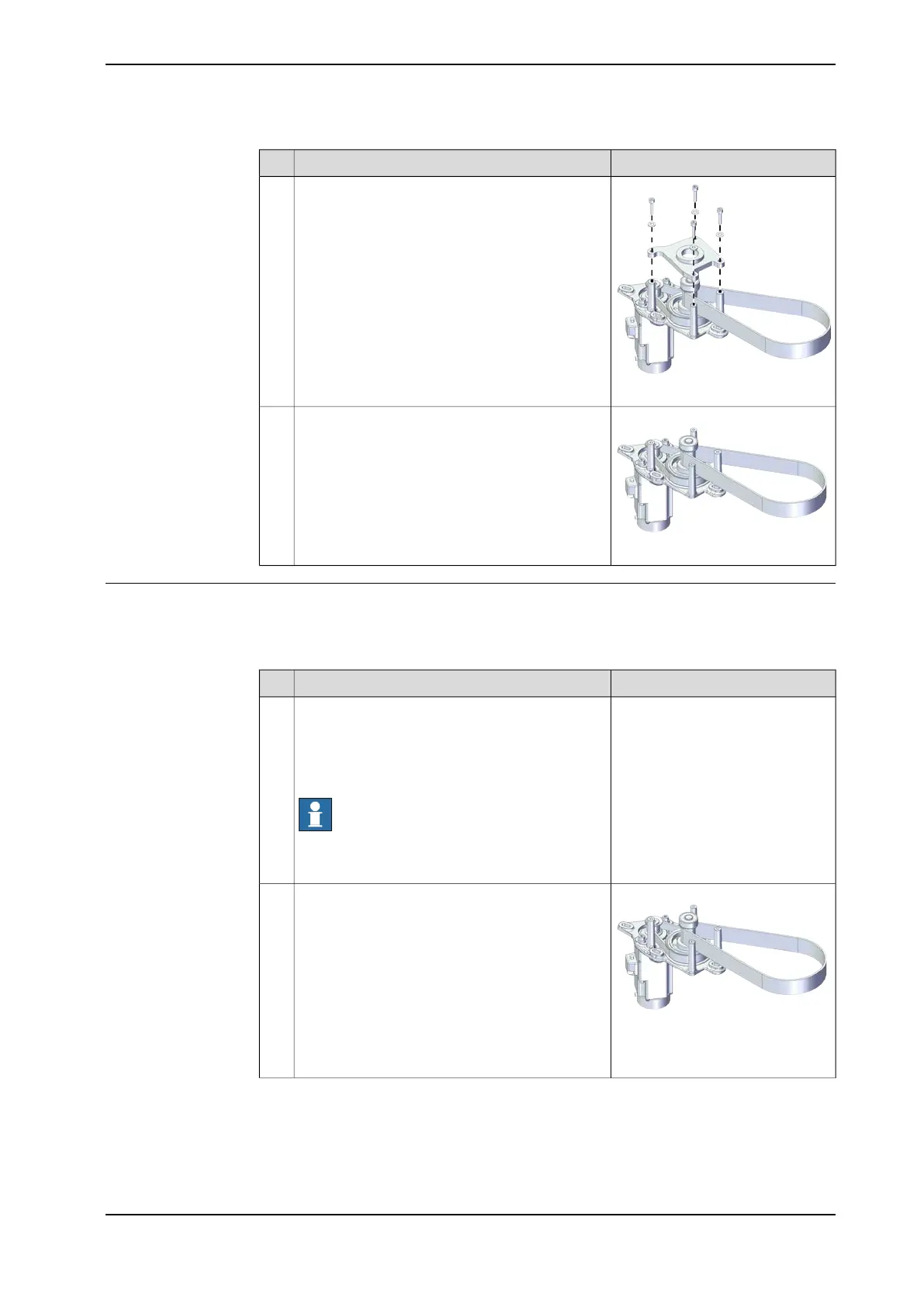

Remove the screws and washers on the transmis-
sion module flange to let the axis-4 second timing
belt be free.
3
xx2100001093
Remove the timing belt.4
Refitting the axis-4 second timing belt
Use these procedures to refit the axis-4 second timing belt.
Refitting the axis-4 second timing belt to the transmission module
NoteAction
For robots with protection type Clean Room:1
Clean the joints that have been opened and wipe
the parts free from particles with spirit on a lint
free. See Cut the paint or surface on the robot
before replacing parts on page 118
Note
After all repair work, wipe the Clean Room robot
free from particles with spirit on a lint free cloth.
xx2100001093
Refit the timing belt to the transmission module.2
Timing belt, A4-2:
3HAC070471-001
Continues on next page
Product manual - IRB 920 589
3HAC075721-001 Revision: C
