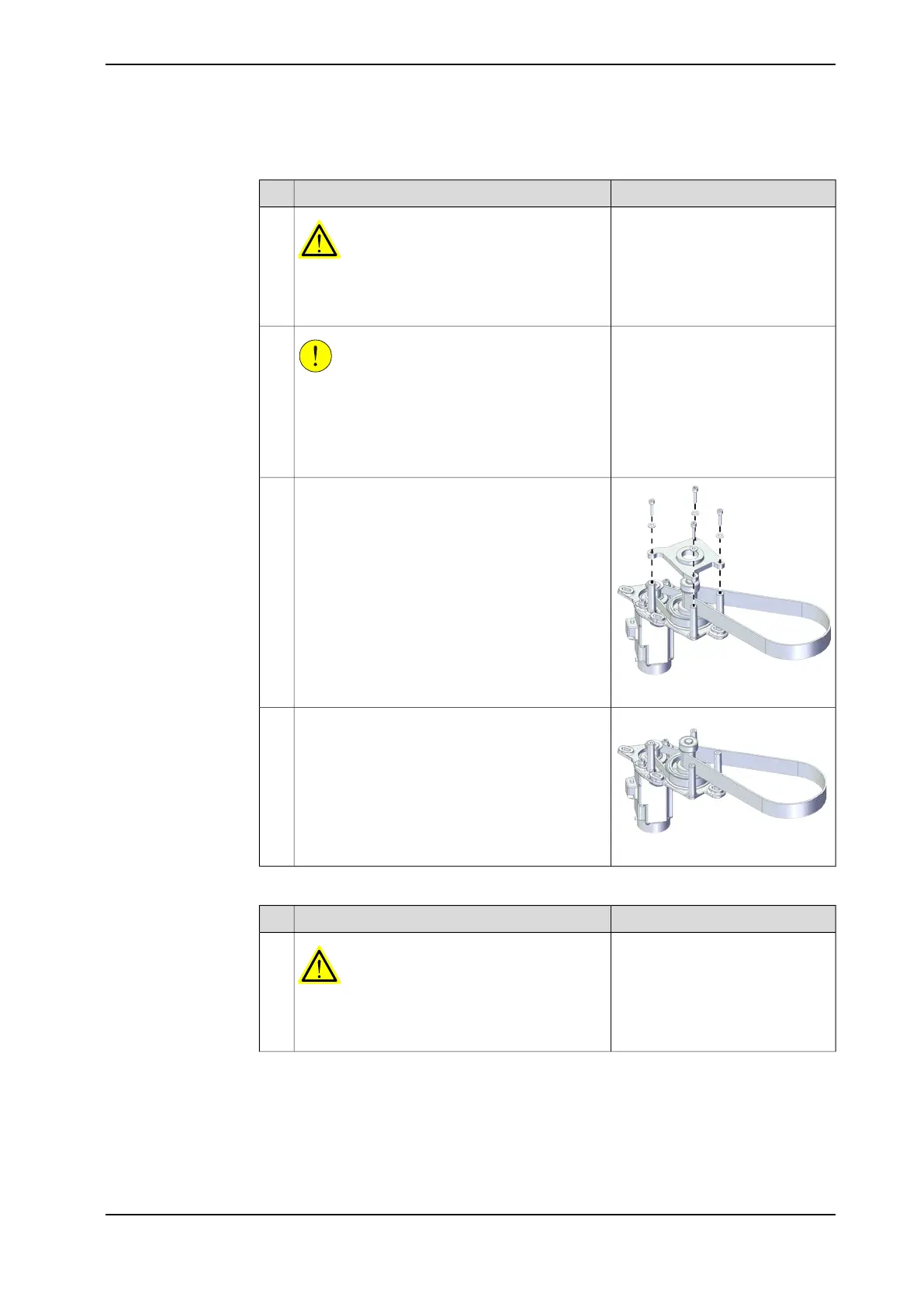

Removing the axis-4 second timing belt
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
CAUTION
For robots with protection type Clean Room
Always cut the paint with a knife and grind the
paint edge when disassembling parts of the robot!
See Cut the paint or surface on the robot before
replacing parts on page 118.
2
xx2100001092
Remove the screws and washers on the transmis-
sion module flange to let the axis-4 second timing
belt be free.
3
xx2100001093
Remove the timing belt.4
Removing the axis-4 motor sub-assembly
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
Continues on next page
Product manual - IRB 920 635
3HAC075721-001 Revision: C
© Copyright 2022 ABB. All rights reserved.
5 Repair
5.6.10 Replacing the transmission module
Continued
