NoteAction
xx2100002407
For robots with protection class IP54 (option 3350-
540)
For robots with protection type Clean Room (op-
tion 3351-1)

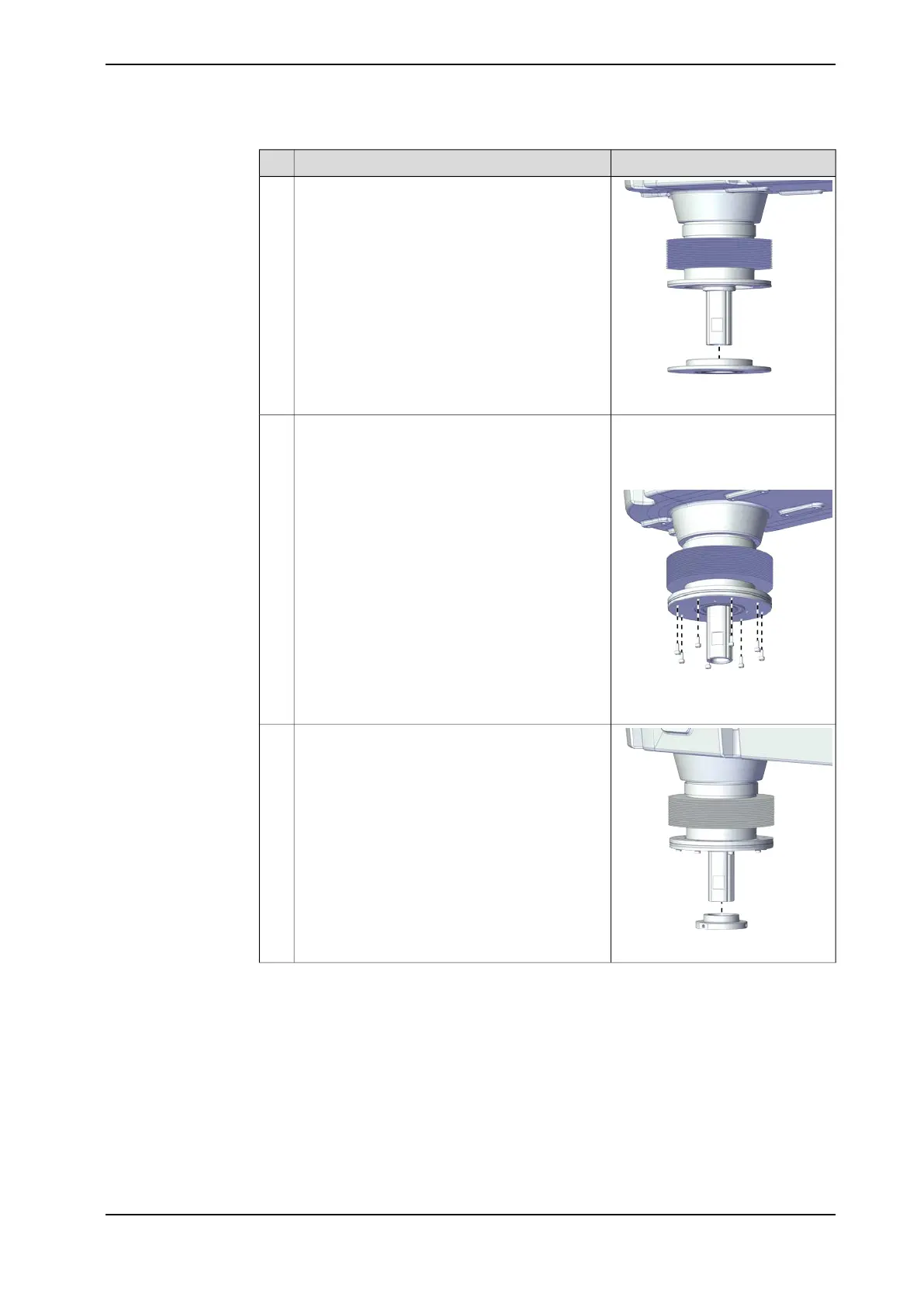

Install the flange with bearing to the shaft.
2
Screws: Hex socket head cap
screw M2.5x6 12.9 Lafre
2C2B/FC6.9 (8 pcs)
For robots with protection class IP54 (option 3350-
540)
For robots with protection type Clean Room (op-
tion 3351-1)
3
Tightening torque: 0.8 Nm ±10%
xx2100002406
Refit the screws to the flange with bearing.
xx2100002405
For robots with protection class IP54 (option 3350-
540)
For robots with protection type Clean Room (op-
tion 3351-1)
Refit the lower cover to the ball screw.
4
Continues on next page
