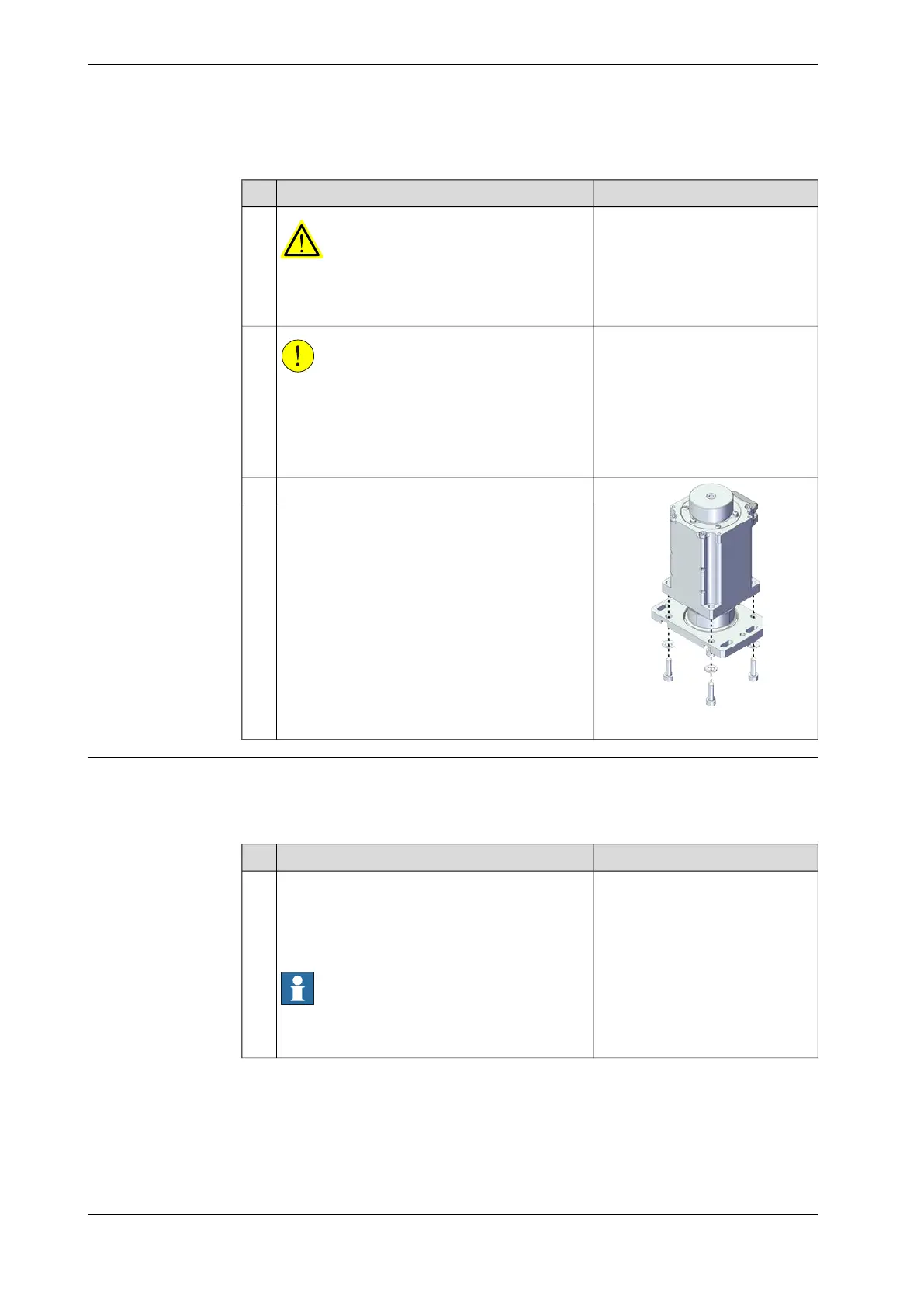

Separating the flange from axis-2 motor sub-assembly
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
CAUTION
For robots with protection type Clean Room
Always cut the paint with a knife and grind the
paint edge when disassembling parts of the robot!
See Cut the paint or surface on the robot before
replacing parts on page 118.
2
xx2100001177
Remove the screws and washers.3
Remove the motor.4
Refitting the axis-2 motor sub-assembly
Use these procedures to refit the axis-2 motor sub-assembly.
Refitting the flange to the axis-2 motor sub-assembly
NoteAction
For robots with protection type Clean Room:1
Clean the joints that have been opened and wipe
the parts free from particles with spirit on a lint
free. See Cut the paint or surface on the robot
before replacing parts on page 118
Note
After all repair work, wipe the Clean Room robot
free from particles with spirit on a lint free cloth.
Continues on next page
786 Product manual - IRB 920
3HAC075721-001 Revision: C
© Copyright 2022 ABB. All rights reserved.
5 Repair
5.7.2 Replacing the axis-2 motor sub-assembly
Continued
