NoteAction
Tightening torque: 2.3 Nm ±10%
xx2100001176

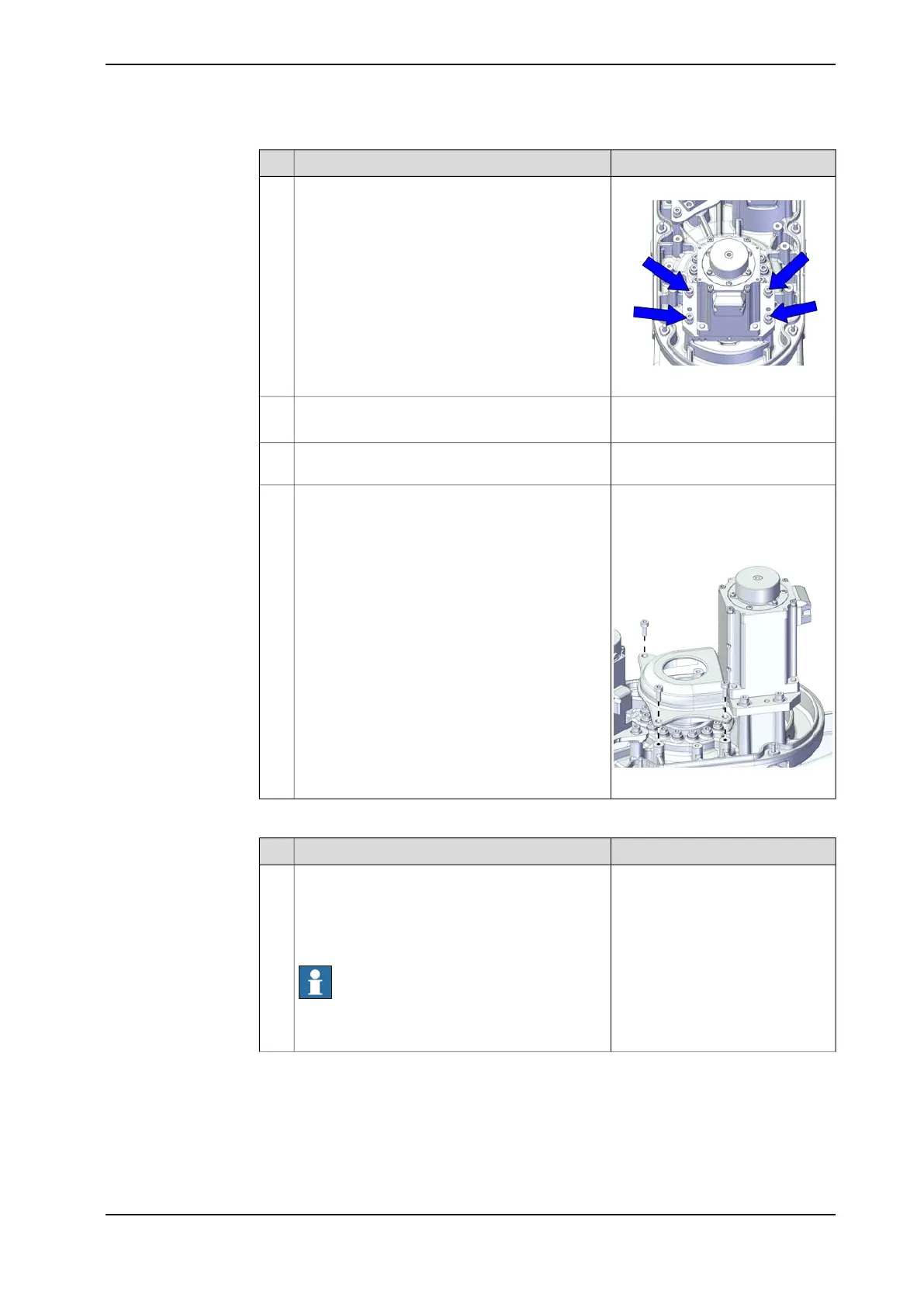

Fasten the screws to the recommended tightening
torque.
7
Used belt: 315Use a sonic tension meter to measure the timing
belt tension.
8
New belt:260
If the timing belt tension does not meet the require-
ment, loosen the motor screws and readjust.
9
Screws: Hex socket head cap
screw M4x10 12.9 Lafre
2C2B/FC6.9 (3 pcs)
Refit the pulley protection cover and secure with
screws.
10
Tightening torque: 0.8 Nm
xx2100001047
Inserting the main harness through the axis -2 gearbox position
NoteAction
For robots with protection type Clean Room:1
Clean the joints that have been opened and wipe
the parts free from particles with spirit on a lint
free. See Cut the paint or surface on the robot
before replacing parts on page 118
Note
After all repair work, wipe the Clean Room robot
free from particles with spirit on a lint free cloth.
Continues on next page
Product manual - IRB 920 929
3HAC075721-001 Revision: C
© Copyright 2022 ABB. All rights reserved.
5 Repair
5.8.2 Replacing the axis-2 gear unit sub-assembly
Continued
