ABB IRC5 Compact User Manual

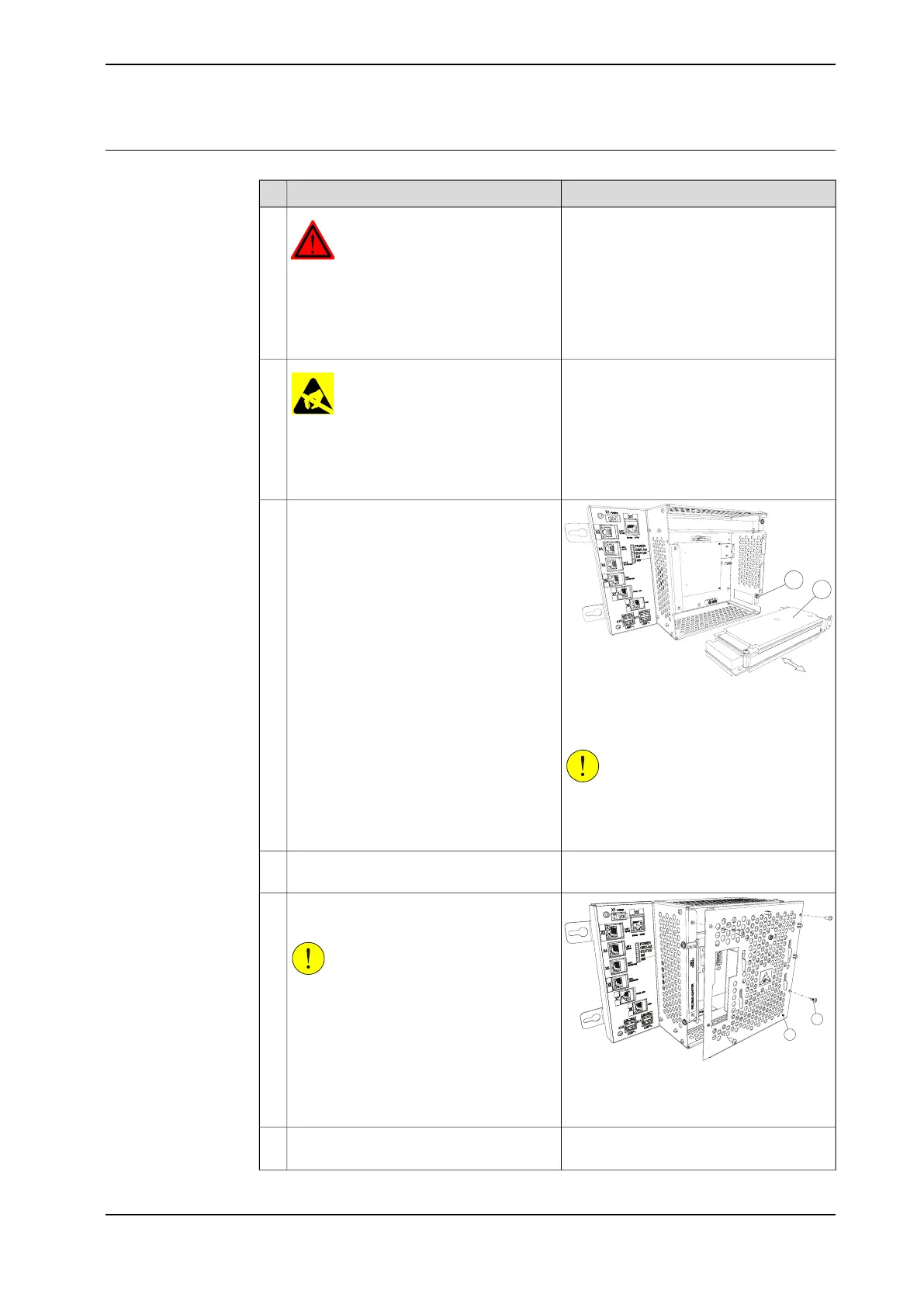

Refitting the Safety module
Note/IllustrationAction
DANGER
Before commencing any work inside the
cabinet, please observe the safety inform-
ation in section DANGER - Make sure that
the main power has been switched off! on
page 33.
1
ELECTROSTATIC DISCHARGE
(ESD)
The unit is sensitive to ESD. Before hand-
ling the unit please observe the safety in-
formation in section WARNING - The unit
is sensitive to ESD! on page 34
2
A
B
xx1500001761
A Attachment screw
B Safety module
CAUTION
Always grip the board around the edges to
avoid damage to the board or its compon-
ents.
Fit the Safety module in position by push-
ing it into the socket on the motherboard.
3
Refit the attachment screw on top of the
Safety module bracket.
4
B
A
xx1300000684
A Attachment screws (4 pcs.)
B Cover
Refit the fan connector and close the com-
puter unit.
CAUTION
Be careful with the fan cable when closing
the cover. The fan cable must not be
squeezed.
5
See Replacement of computer unit on
page 138.
Refit the computer unit.6
Continues on next page
Product manual - IRC5 Compact 149
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
4 Repair
4.7 Replacement of Safety module DSQC1015 for SafeMove
Continued
