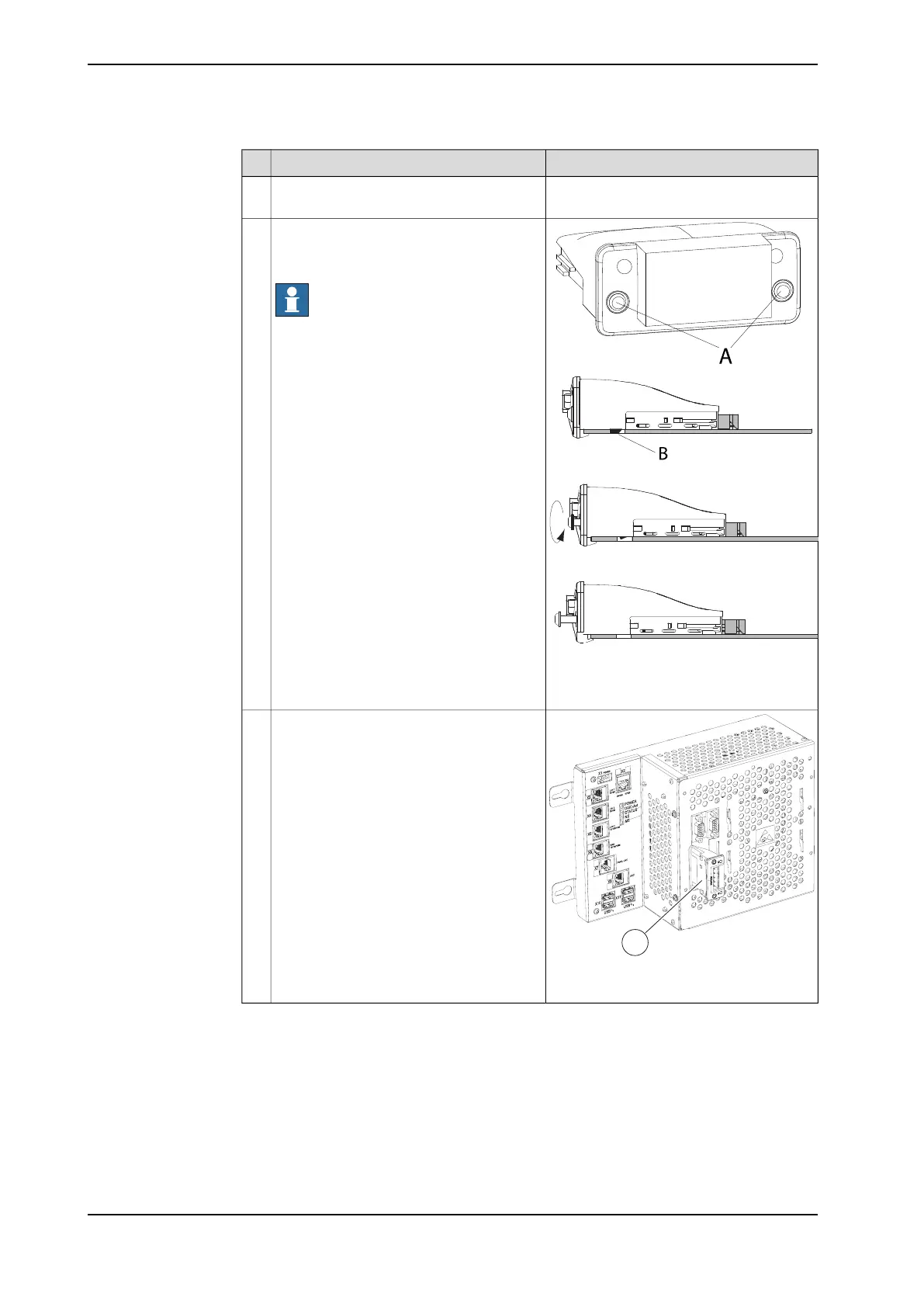

Note/IllustrationAction
Disconnect any cables to/from the fieldbus
adapter.
5
xx0700000193
A Attachment screws (2 pcs)
B Fastening mechanism
Loosen the attachment screws (2 pcs) on
front of the fieldbus adapter to release the
fastening mechanism.
Note
Only loosen the attachment screws. Do not
remove them.
6
A
xx1500001755
A Fieldbus adapter
Grip the loosened attachment screws and
gently pull the fieldbus adapter straight out.
7
Continues on next page
156 Product manual - IRC5 Compact
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
4 Repair
4.9 Replacement of fieldbus adapter in the computer unit
Continued
