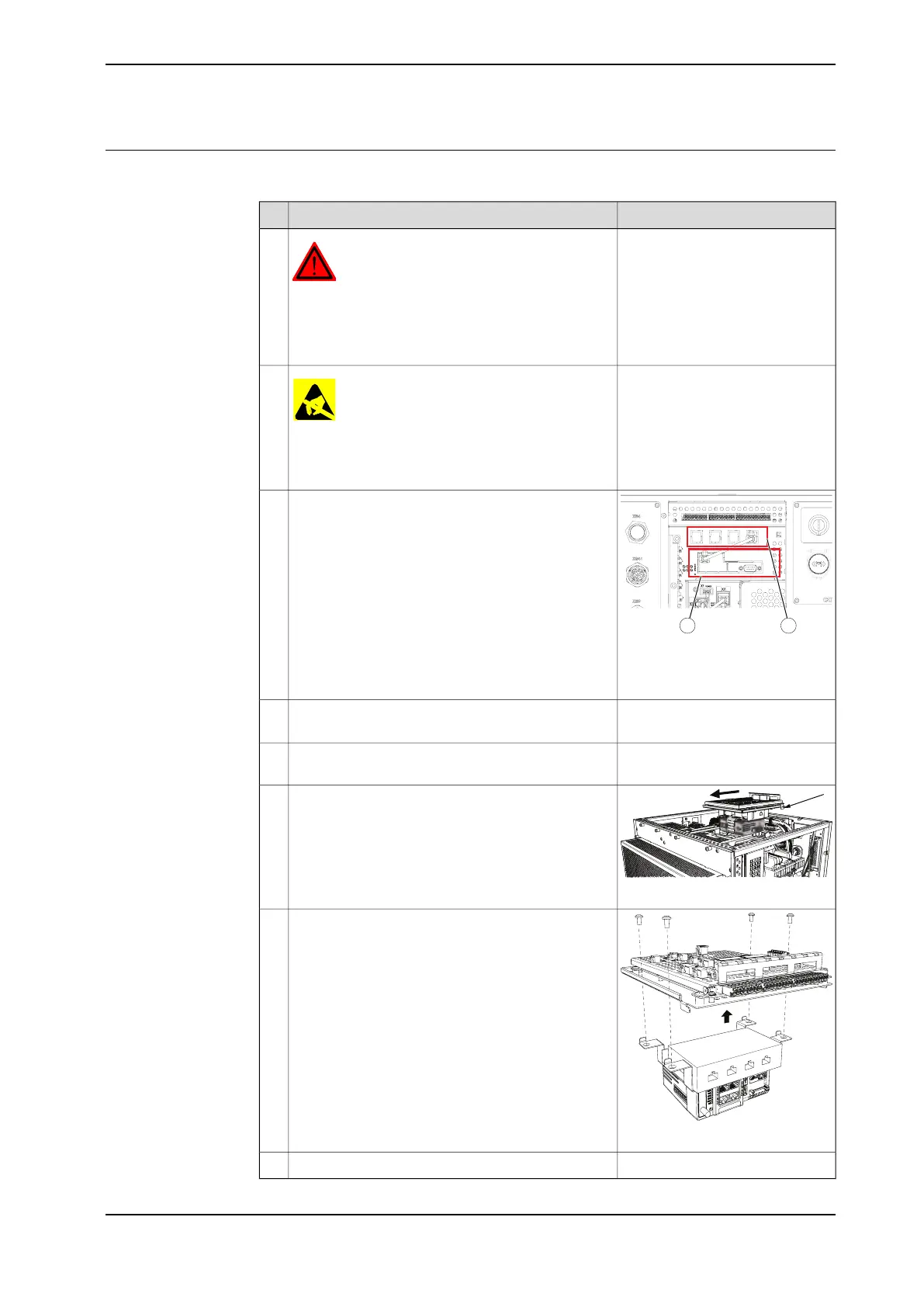

Removal
Use this procedure to remove the Ethernet switch.
InformationAction
DANGER
Before commencing any work inside the cabinet,
please observe the safety information in section
DANGER - Make sure that the main power has been
switched off! on page 33.
1
ELECTROSTATIC DISCHARGE (ESD)
The unit is sensitive to ESD. Before handling the
unit please read the safety information in the section
WARNING - The unit is sensitive to ESD! on page 34
2
xx1400002787
A Remote Service contacts
B Ethernet switch contacts
On the cabinet front, disconnect the connectors
from the Ethernet switch contacts.
If you have a Remote Service box, disconnect the
connectors from this as well.
3
See Opening the IRC5 Compact
controller on page 89.
Remove the cover of the cabinet.4
Disconnect all connectors from the safety board,
Ethernet switch, and Remote Service box.
5
xx1400001462
Remove the two attachment screws, and push the
safety board unit backwards to release the latches.
6
xx1500000231
Remove the attachment screws, and lift off the
safety board.
7
Remove the Ethernet switch.8
Continues on next page
Product manual - IRC5 Compact 185
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
4 Repair
4.18 Replacement of Ethernet switch
Continued
To Next Page
