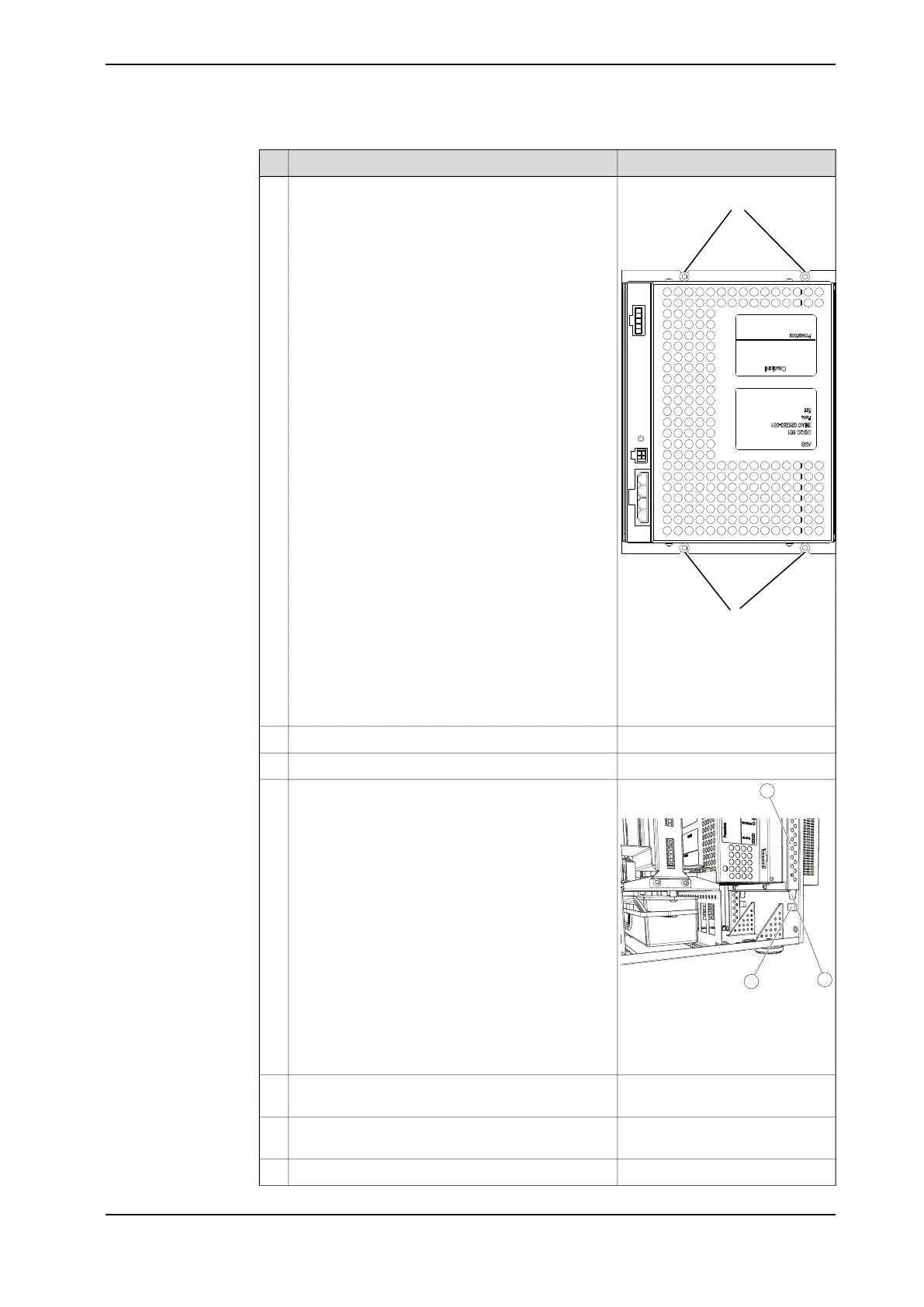

ABB IRC5 Compact User Manual

Note/IllustrationAction
A
B
xx0900000570
Refit the power supply by sliding the recesses in
beneath the lower screw heads.
2
• A: upper attachment
screws
• B: lower attachment screws
Refit the two upper attachment screws.3
Tighten the attachment screws (4 pcs).4
B
A
C
xx1400001469
Refit system power supply with support bracket by
fitting the latches into the recesses.
5
• A: support bracket
• B: recess
• C: latch
Refit the two attachment screws to the support
bracket in the back of the controller
6
Refit right side beam and secure with attachment
screws.
7
Reconnect all connectors to the unit.8
Continues on next page
Product manual - IRC5 Compact 195
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
4 Repair
4.19.2 Replacement of system power supply
Continued
