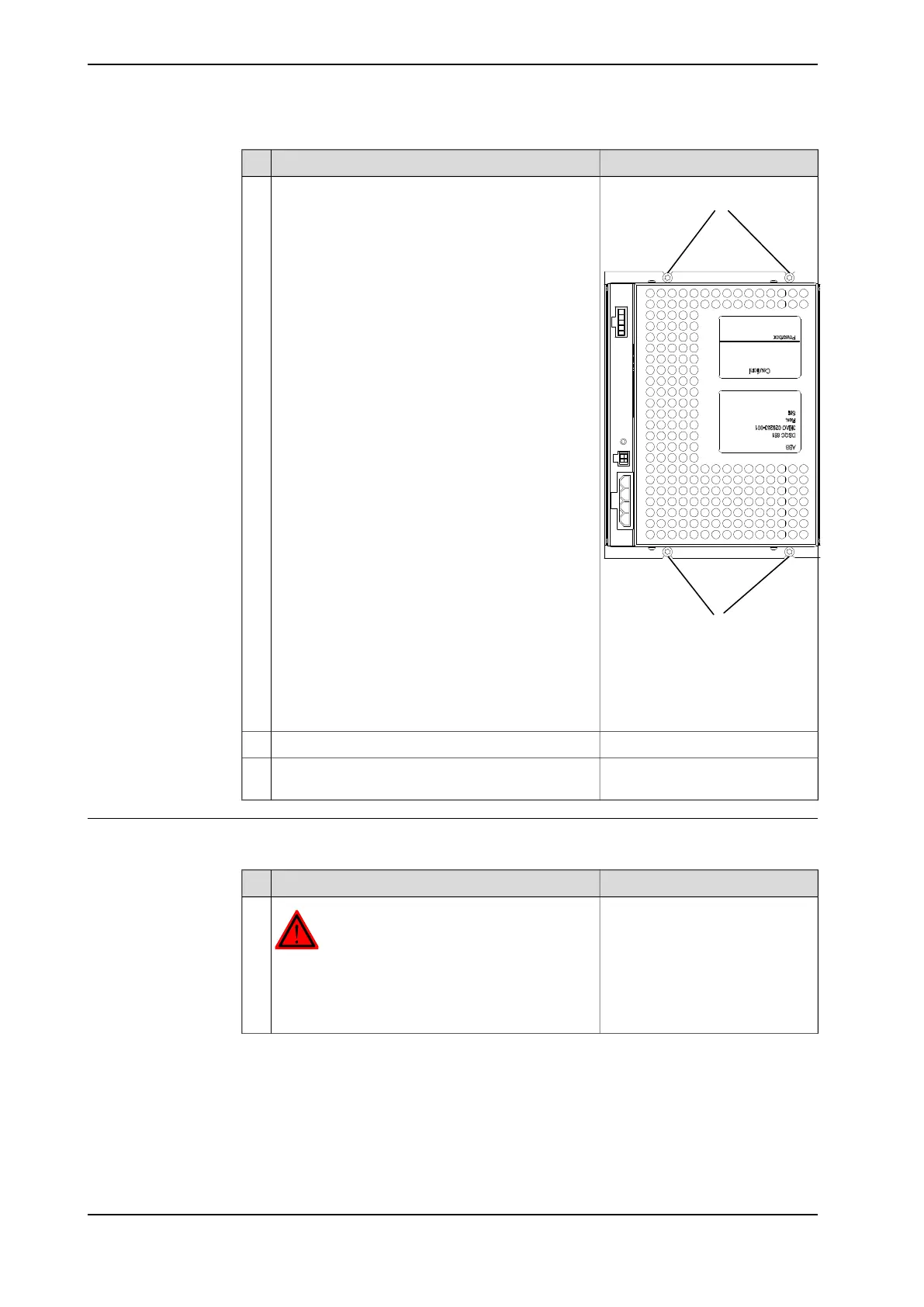

Note/IllustrationAction
A
B
xx0900000570
Loosen the two lower attachment screws.7
• A: upper attachment
screws
• B: lower attachment screws
Remove the two upper attachment screws.8
Pull the power supply unit upwards to release it
from the lower screw heads, and remove it.
9
Refitting
Use the following procedure to refit the system power supply.
Note/IllustrationAction
DANGER
Before commencing any work inside the cabinet,
please observe the safety information in section
DANGER - Make sure that the main power has been
switched off! on page 33.
1
Continues on next page
194 Product manual - IRC5 Compact
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
4 Repair
4.19.2 Replacement of system power supply
Continued
