ABB IRC5 Compact User Manual

NoteDescriptionSpare part no.
DSQC 680Remote Service box3HAC043053-001D
DSQC 661System Power Supply3HAC026253-001E
See Computer unit parts on page 210.F
DSQC 668Axis computer3HAC028179-001G
DSQC 655Backup energy bank3HAC025562-001H
DSQC 662Power distribution unit3HAC026254-001J
Multipole con. XS7, XS8, XS93HAC051190-001

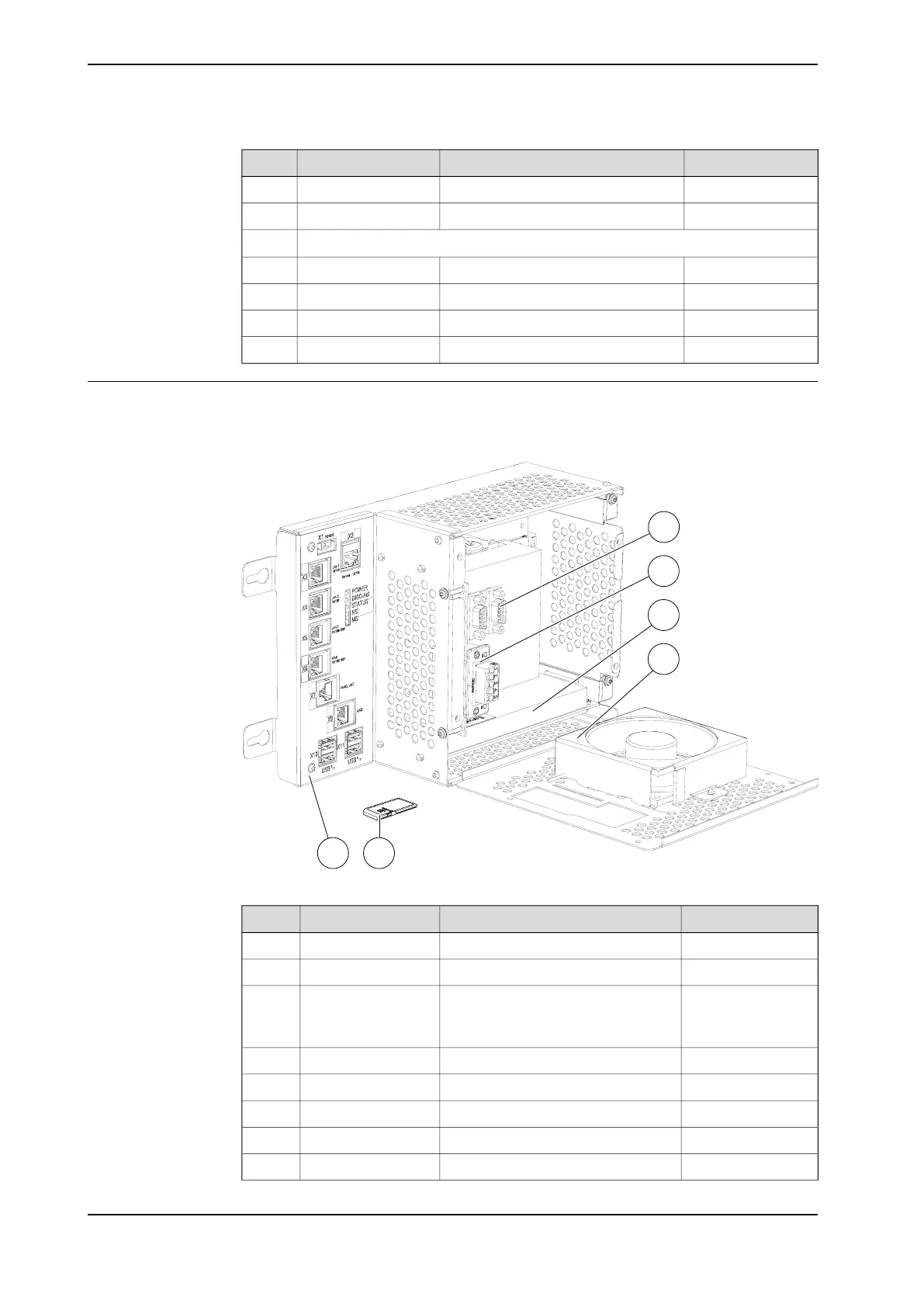

Computer unit parts
The illustration below shows the placement of the computer unit parts in the
recommended spare part list.
A
B
E
C
D
F
xx1300000851
TypeDescriptionSpare part no.
DSQC1000Computer unit (1 PCI slot)3HAC042766-001A
DSQC1018Computer unit (2 PCI slots)3HAC050363-001A
-Mass Memory with boot loader 2GB3HAC047184-003B
(previously called
DSQC1008)
DSQC1003Expansion Board complete3HAC046408-001C
DSQC 688PROFINET Slave Fieldbus Adapter3HAC031670-001D
DSQC 667PROFIBUS Slave Fieldbus Adapter3HAC026840-001D
DSQC 669Ethernet/IP Slave Fieldbus Adapter3HAC027652-001D
DSQC1004DeviceNet Slave Fieldbus Adapter3HAC045973-001D
Continues on next page
210 Product manual - IRC5 Compact
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
7 Spare parts
7.1 IRC5 Compact controller
Continued
