ABB PT003888 - Layout and Function of the Low-Pressure Stage; Fig. 2

Operation Manual / Power2 340-H / Low-pressure stage
1 Introduction / 1.5 Layout and function of the low-pressure stage
© Copyright 2022 ABB. All rights reserved. HZTL4053_EN Rev.F March 2022
1.5 Layout and function of the low-pressure stage

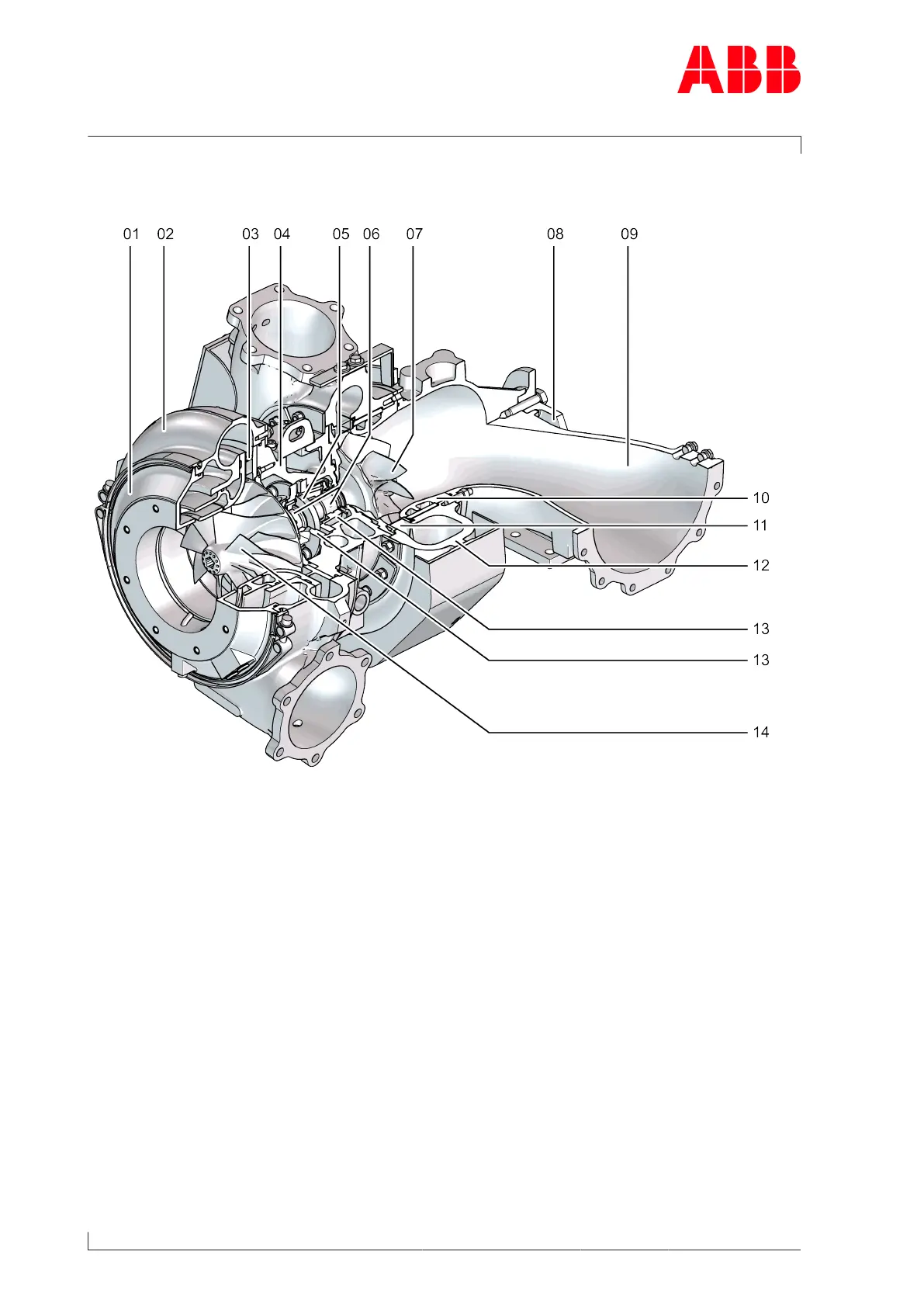

Fig.2
01 Air suction branch / filter silencer 09 Gas outlet casing
02 Compressor casing 10 Gas outlet flange
03 Diffuser 11 Nozzle ring
04 Bearing casing 12 Turbine casing
05 Thrust bearing 13 Turbine-end bearing flange
06 Radial bearing 14 Compressor-end bearing flange
07 Turbine 15 Compressor wheel
08 Support
