Operation Manual / Power2 340-H / Low-pressure stage
3 Removal and installation / 3.1 Transport / weight
© Copyright 2022 ABB. All rights reserved. HZTL4053_EN Rev.F March 2022
3 Removal and installation
3.1 Transport / weight
Lifting gear with a sufficient load limit must be used for removing and installing low-pres-
sure and high-pressure stages. The following weight specifications apply to the heaviest
variant possible. Depending on the specification, the weight specified on the rating plate
may be lower than the standard values specified here.

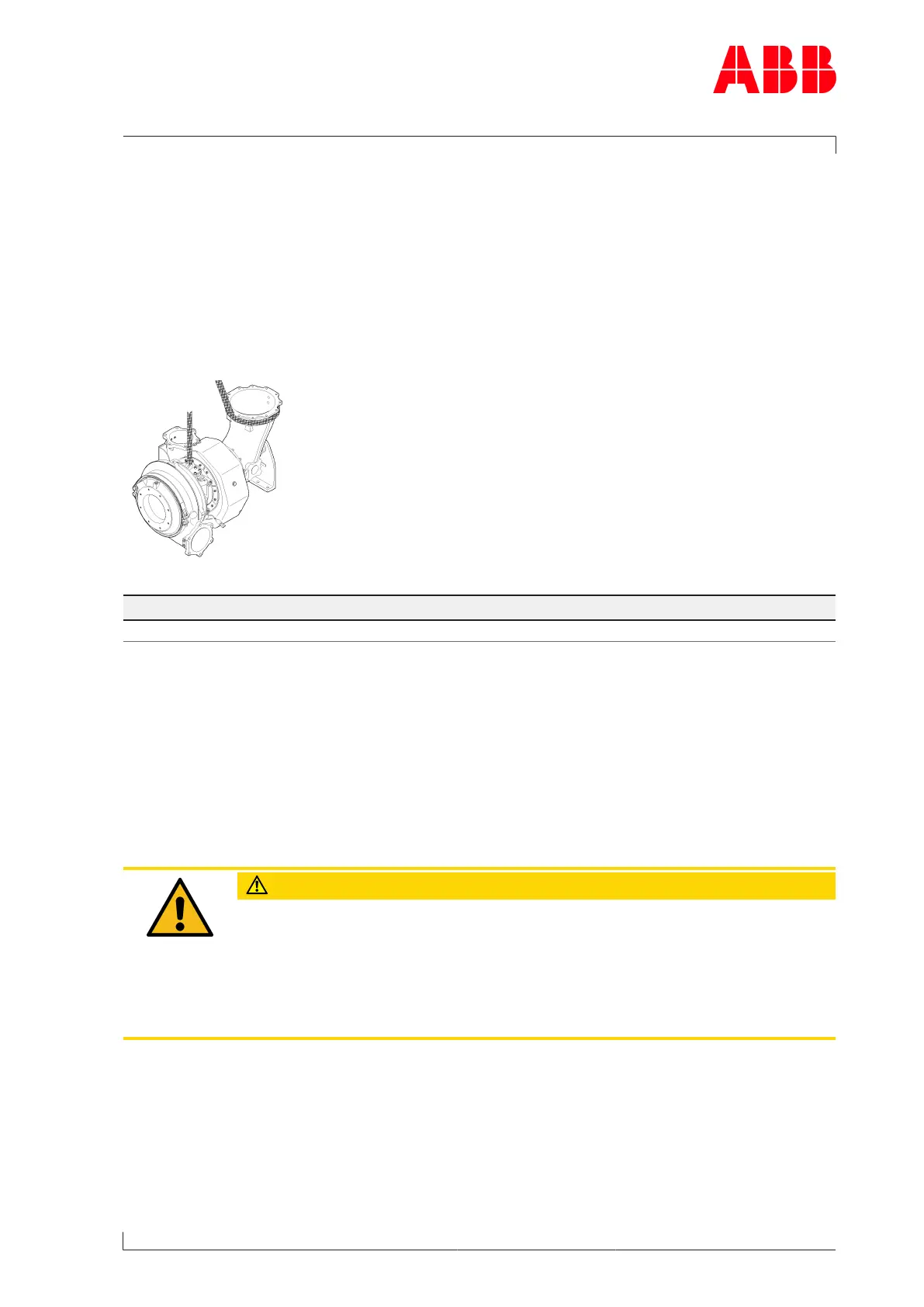

Fig.11: Transport
Weight
440kg
Table8: Weight of the low-pressure stage complete
3.2 Removing the low-pressure stage
u Disconnect all pipes according to the instructions of the enginebuilder.
Version with water-cooled bearing casing:
u Disconnect the water connections according to the instructions of the enginebuilder.
Close the openings of the water connections with locking screws.
CAUTION
Freezing of the cooling water in the bearing casing
Serious damage to property can be the consequence if the cooling water
freezes in the pipes and in the bearing casing.
u For transport and storage of the low-pressure stage, drain the cooling
water from the bearing casing via one of the two bottom openings of the
water connections.
