Swivel lifting eyes to be used
Swivel lifting eyes are required for the safe lifting of loads, which are not supplied by Turbo
Systems.

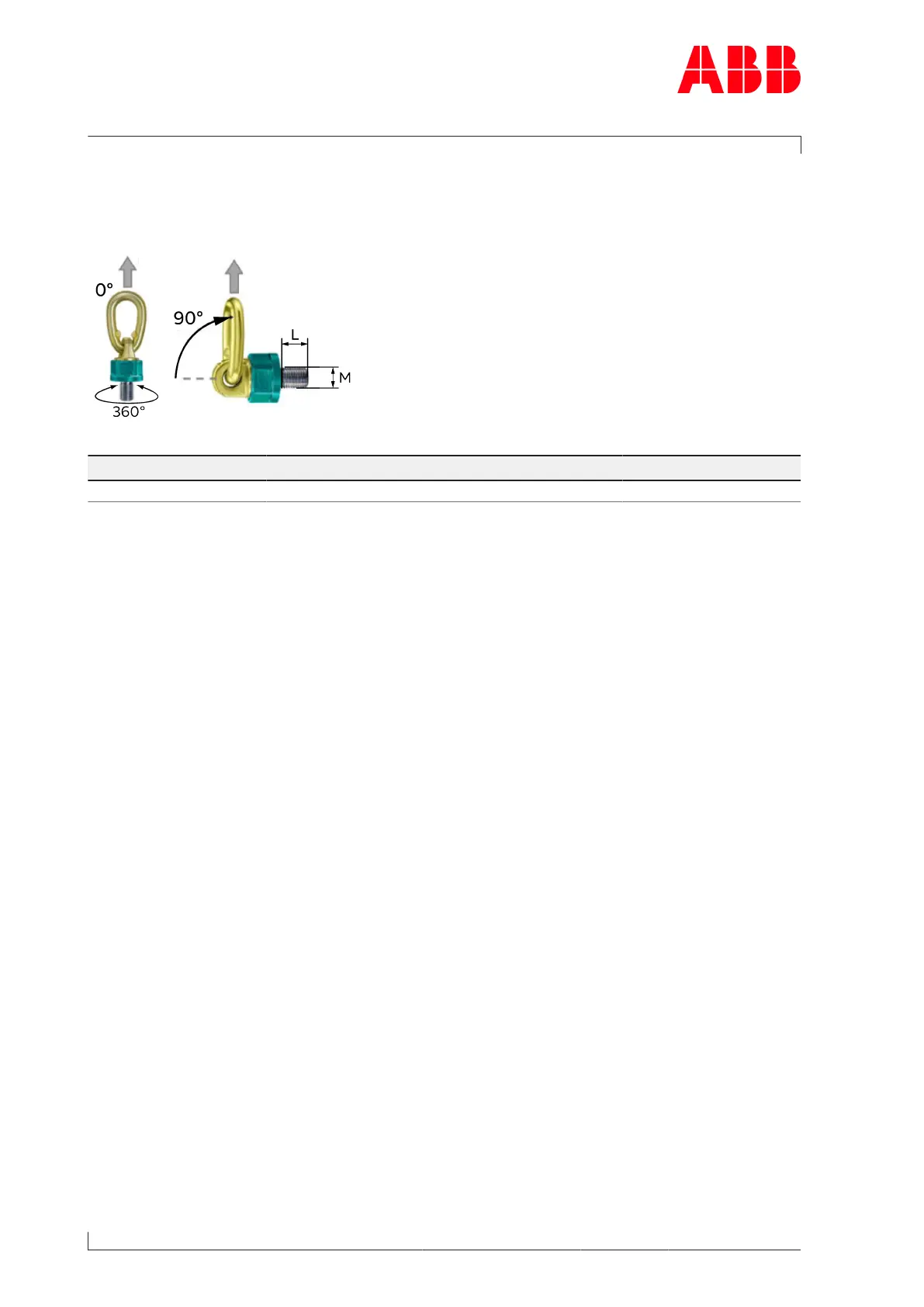

Fig.20: Swivel lifting eye (example)
Thread M Length L Minimum load limit Quantity
M12 21mm 250kg 2
Table39: Swivel lifting eyes
