9.15 Installing the cartridge group
Lifting the cartridge group and rotating it by 90°

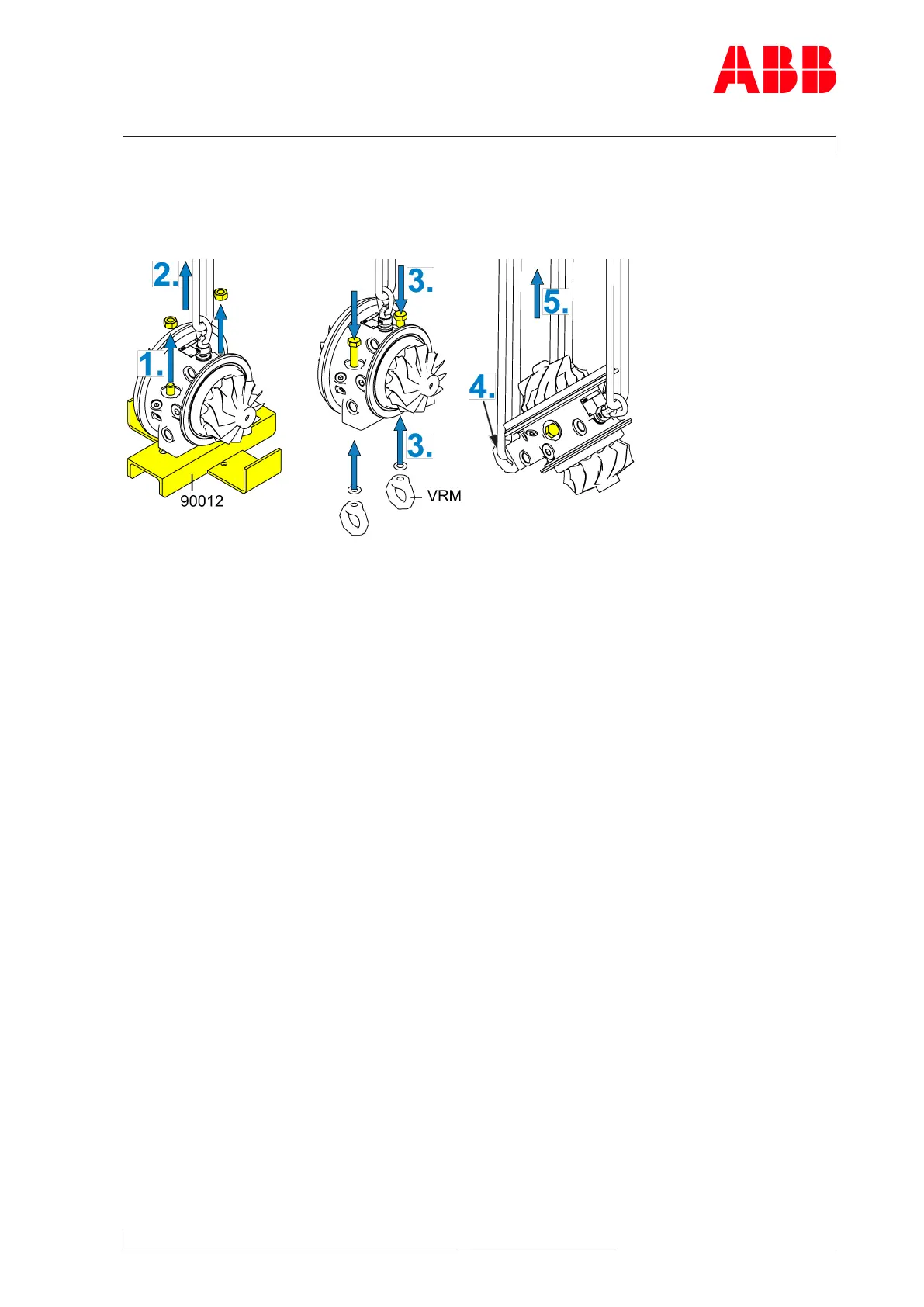

Fig.36: Lifting the cartridge group and rotating it by 90°
1. Loosen and remove nuts.
2. Lift the cartridge group out of the service support(90012).
3. Insert the screws of the service support from above and fit ring nuts(VRM) with washers.
4. Attach lifting gear to the ring nuts(VRM).
5. Lift cartridge group at the side of the ring nuts(VRM) and turn it into a vertical position.
