Operation Manual / Power2 340-H / Low-pressure stage
9 Disassembly and assembly / 9.20 Installing the gas outlet casing
© Copyright 2022 ABB. All rights reserved. HZTL4053_EN Rev.F March 2022
9.20 Installing the gas outlet casing

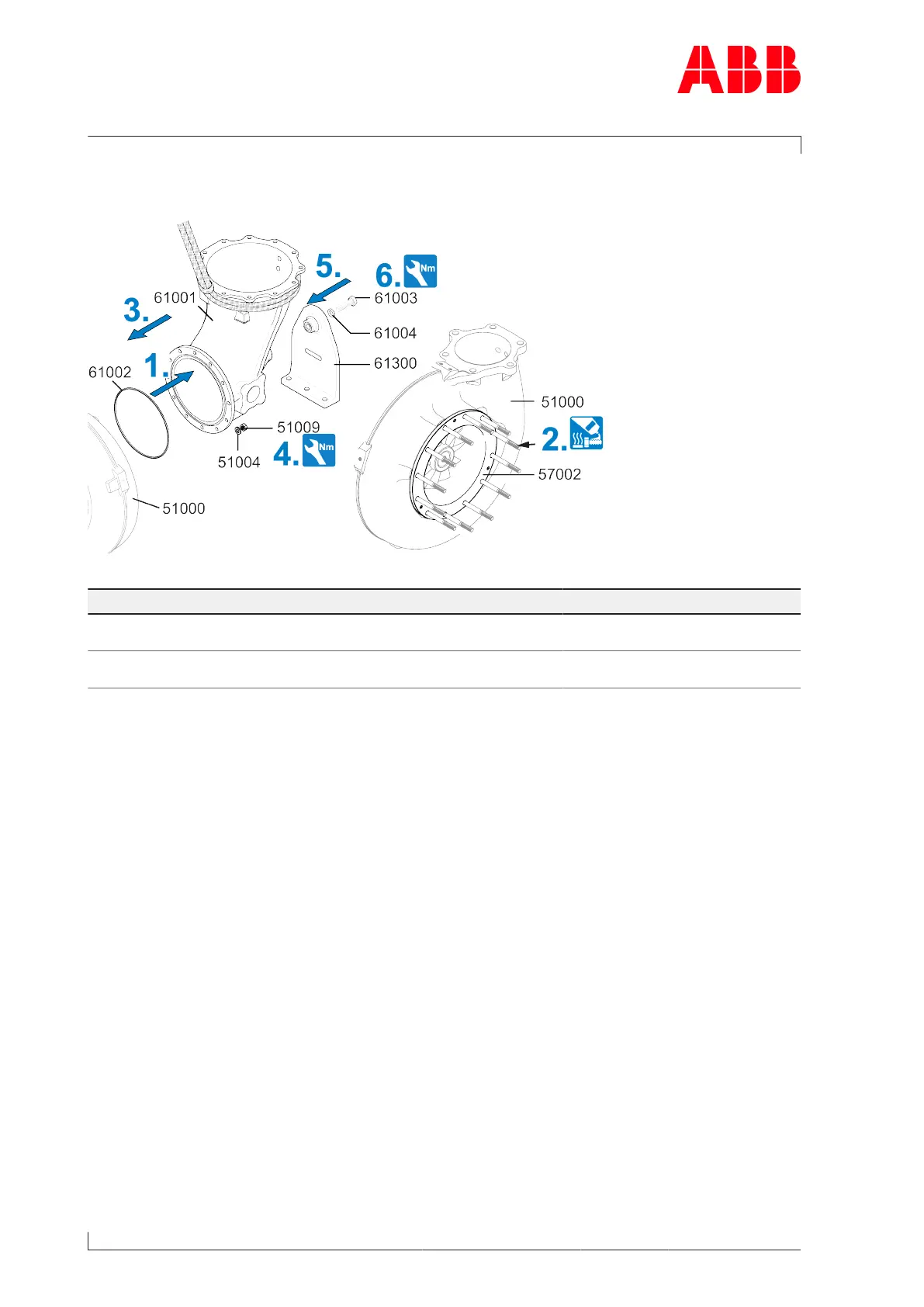

Fig.43: Installing the gas outlet casing
Product Part number Tightening torque
Power2 340-LP 51009 M12
65Nm
Power2 340-LP 61003 M20
320Nm
Table50: Tightening torques (51009, 61003)
1. Insert a new gasket(61002) into the gas outlet casing(61001).
2. Coat thread of studs with high-temperature grease.
3. Attach the lifting gear to the gas outlet casing(61001) and position the gas outlet casing
in the correct position on the turbine casing(51000).
4. Fit the washers(51004) and hexagon nuts(51009). Observe tightening torque.
5. Fit support(61300) with washer(61004) and screw(61003).
6. Tighten screw(61003).
Page 90 / 122
