9.21 Table of tightening torques

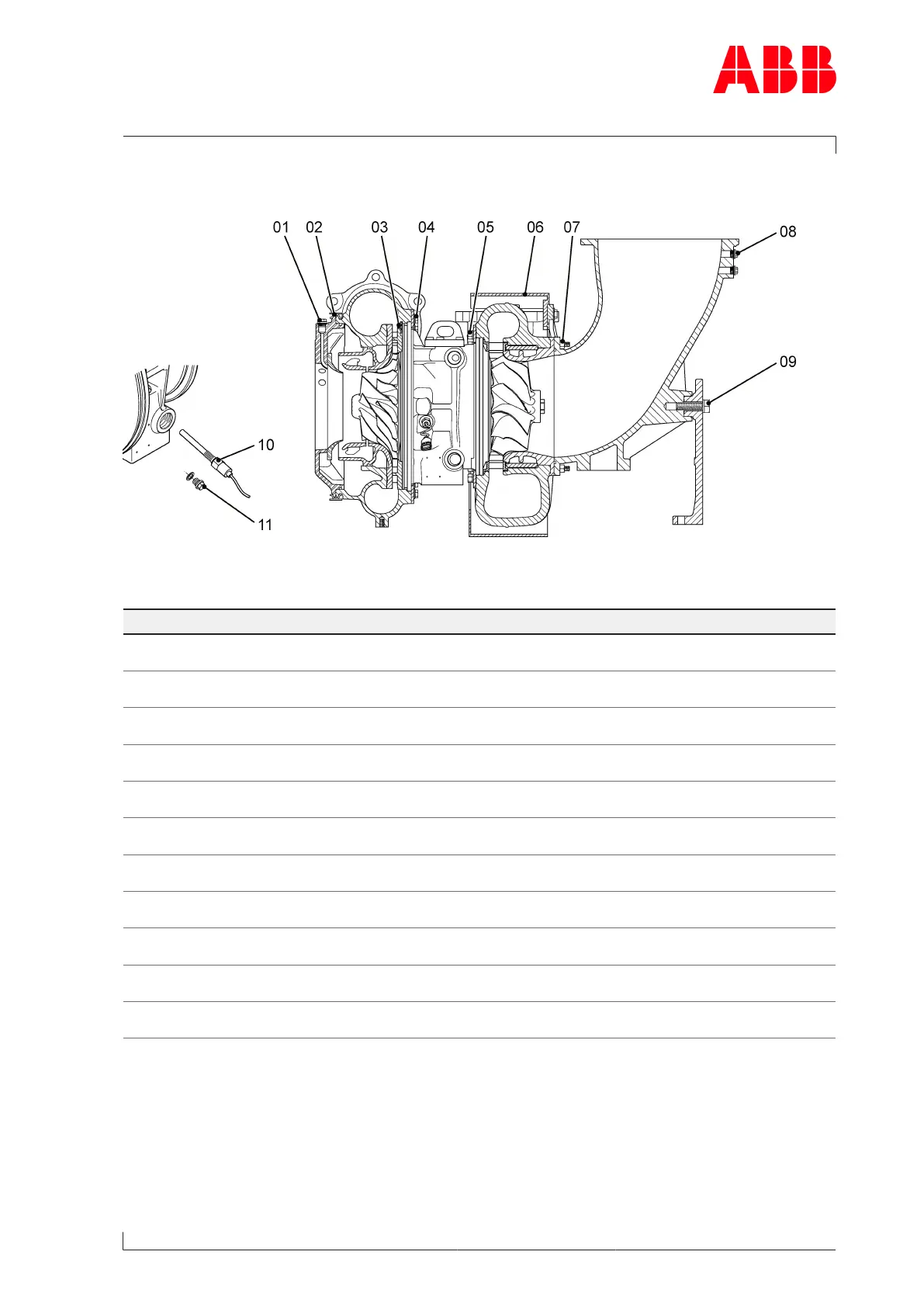

Fig.44: Tightening torque overview
The following tightening torques [Nm] must be observed for the designated screw fittings:
Position Part number Tightening torque [Nm]
01 82005, 82007 M18x1.5
60
02 72020 M12
60
03 79041 M6
8
04 72011 M12
105
05 51007 M12
75
06 51101 / 51103 / 51104 M12
65
07 51009 M12
65
08 61005 M18x1.5
60
09 61003 M20
320
10 86505 M12x1.5
15
11 42188 M12x1.5
35
Table51: Tightening torques [Nm]
