ABB PT003888 - Cover Plate Drawing; Fig. 46: Cover Plate Drawing; Table 53: Cover Plate Dimensions [MM]

Operation Manual / Power2 340-H / Low-pressure stage
10 Taking out of operation at short notice / 10.4 Cover plate drawing
© Copyright 2022 ABB. All rights reserved. HZTL4053_EN Rev.F March 2022
10.4 Cover plate drawing
The cover plate is not included in the Turbo Systems scope of delivery and must be manufac-
tured by the operating company according to the following drawing.
Material: General structural steel, in accordance with DINEN10025-2.

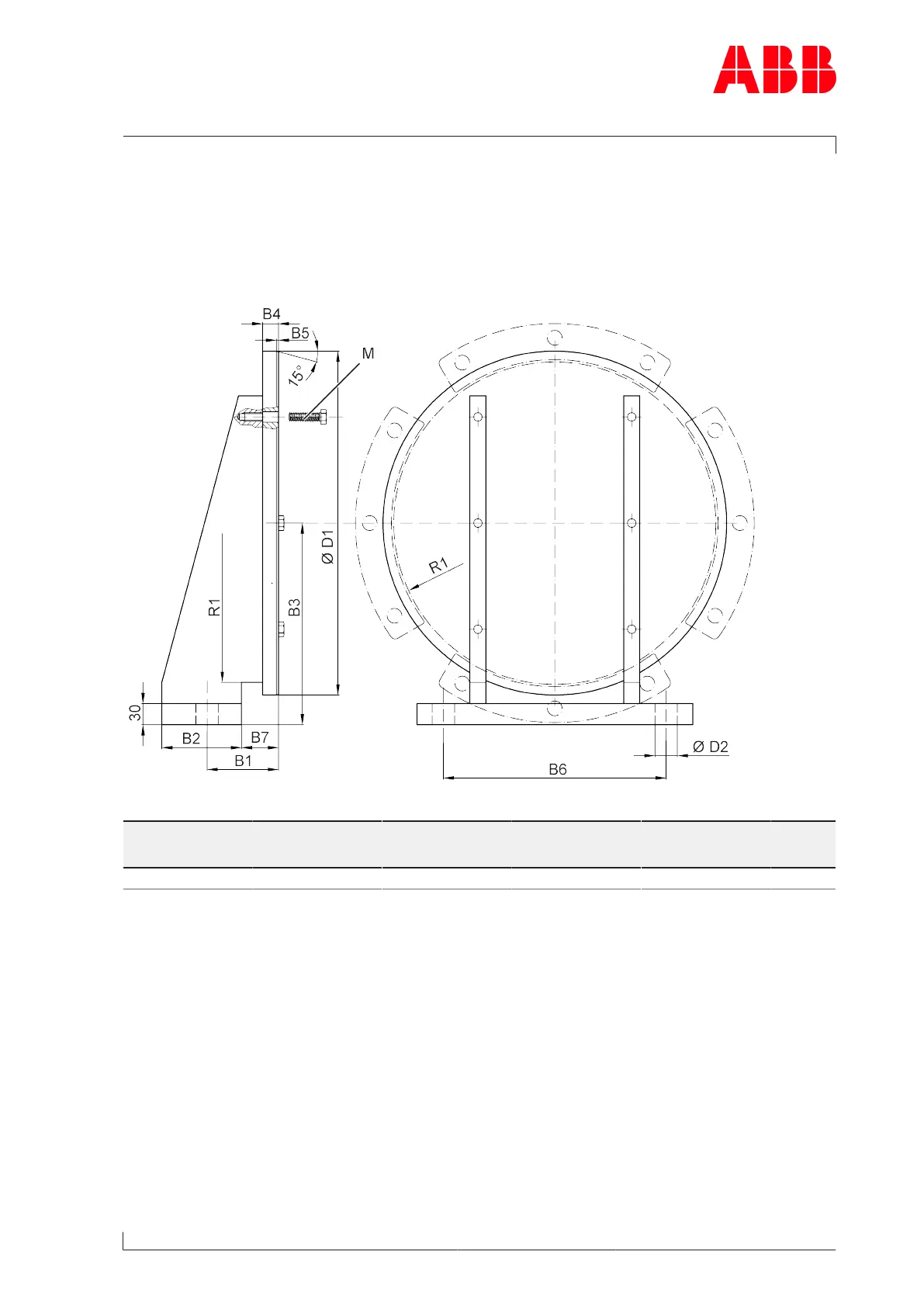

Fig.46: Cover plate drawing
B1
± 0.5
B2 B3 B4
± 0.2
B5 B6 B7 ØD1
± 0.2
ØD2 R1 M
98.2 102 190 17.2 2 220 48.2 332.5 25 ≤153 M10
Table53: Cover plate dimensions [mm]
