9.3 Weights of assemblies
The specified weights of the individual parts or assemblies are rounded-up standard values.

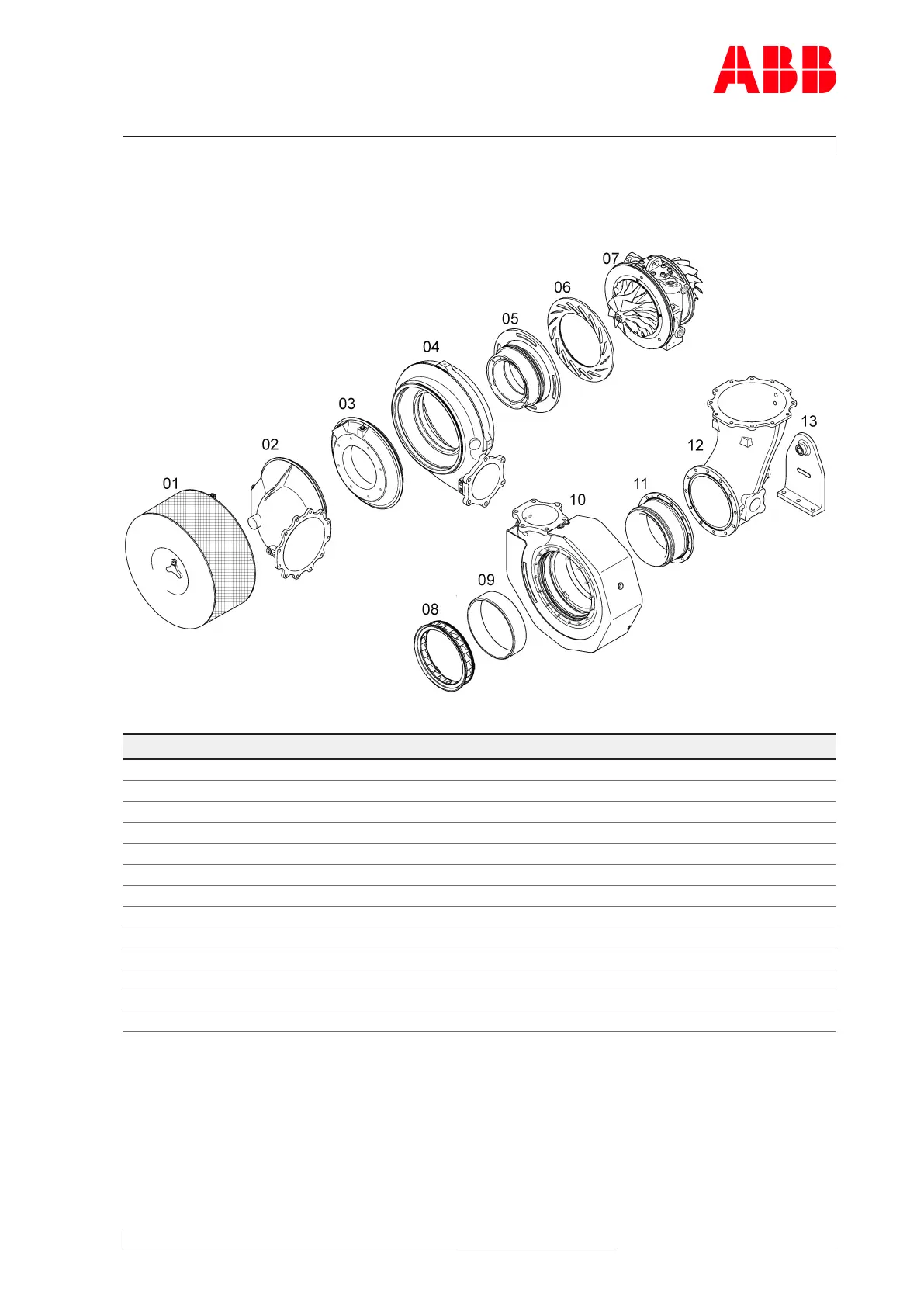

Fig.21: Weights of the assemblies
Designation Weight(kg)
01 Filter silencer 40
02 Radial air suction branch 13
03 Axial air suction branch 6
04 Compressor casing 65
05 Wall insert 15
06 Diffuser 7
07 Cartridge group 110
08 Nozzle ring 4
09 Burst ring 5
10 Turbine casing * (1 inlet) 120
11 Gas outlet flange 20
12 Gas outlet casing 65
13 Support 11
Table40: Weights of the assemblies
* including burst protection
