Operation Manual / Power2 340-H / Low-pressure stage
9 Disassembly and assembly / 9.19 Installing the gas outlet flange
© Copyright 2022 ABB. All rights reserved. HZTL4053_EN Rev.F March 2022
9.19 Installing the gas outlet flange

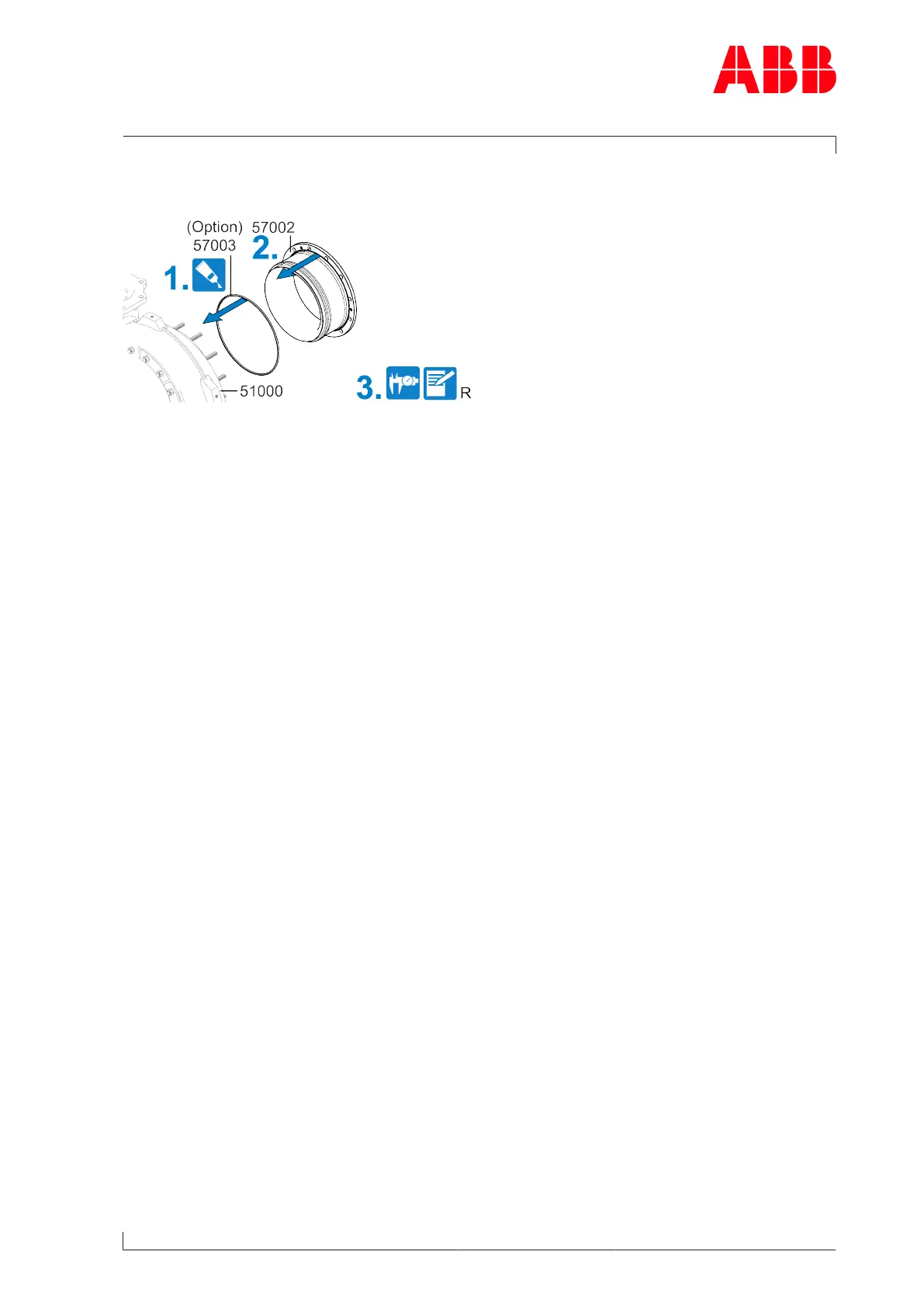

Fig.42: Installing the gas outlet flange
1. If present: Insert the metal C-ring(57003) into the turbine casing(51000) and secure with
high-vacuum grease.
2. Install the gas outlet flange(57002) in the turbine casing.
3. Measure radial clearance(R) (see chapter Radial clearances N and R).
Page 89 / 122
