ABB PT003888 - Fig. 41: Installing the Air Inlets; Installing the Air Inlets; Table 49: Tightening Torque (72020)

Operation Manual / Power2 340-H / Low-pressure stage
9 Disassembly and assembly / 9.18 Installing the air inlets
© Copyright 2022 ABB. All rights reserved. HZTL4053_EN Rev.F March 2022
9.18 Installing the air inlets

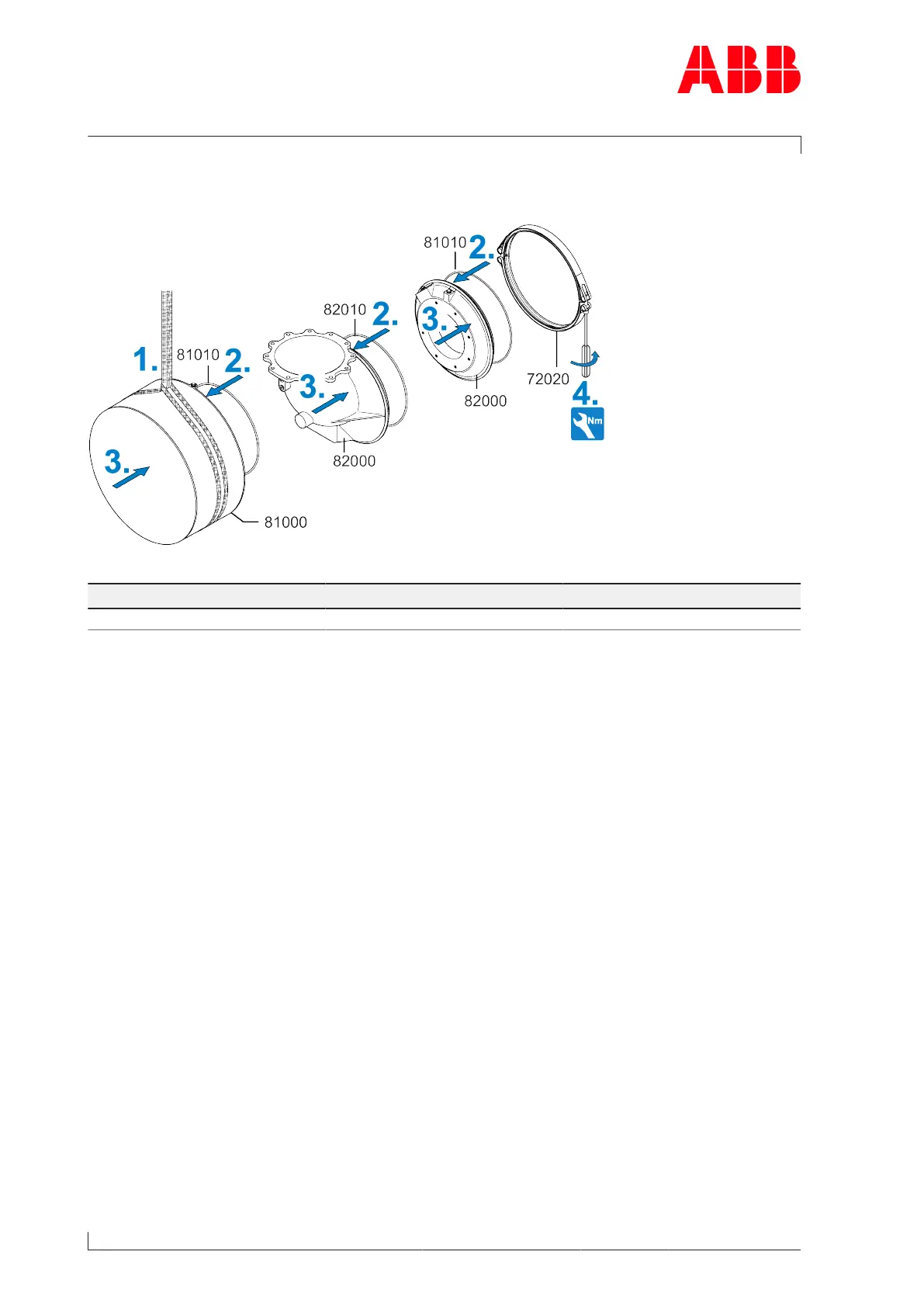

Fig.41: Installing the air inlets
Product Size Tightening torque [Nm]
Power2 340-H LP M12 60
Table49: Tightening torque (72020)
1. Secure lifting gear to filter silencer(81000).
2. Fit a new O-ring(81010) to the filter silencer(81000) or a new O-ring(82010) to the air
suction branch(82000).
3. Fit the filter silencer(81000) or air suction branch(82000) with the V-clamp(72020).
4. Observe tightening torque.
