ABB PT003888 - Fig. 27: Press off the Casing; Pressing off the Casing

Operation Manual / Power2 340-H / Low-pressure stage
9 Disassembly and assembly / 9.8 Pressing off the casing
© Copyright 2022 ABB. All rights reserved. HZTL4053_EN Rev.F March 2022
9.8 Pressing off the casing
CAUTION
Axial force of the press-off tool
Using the press-off tool (90042), a high level of axial force can be generated.
If the casing is pressed off with too much force on one side, the rotor can be
damaged.
u Use the tool on both sides in alternation and make sure not to press off
too hard on either side.

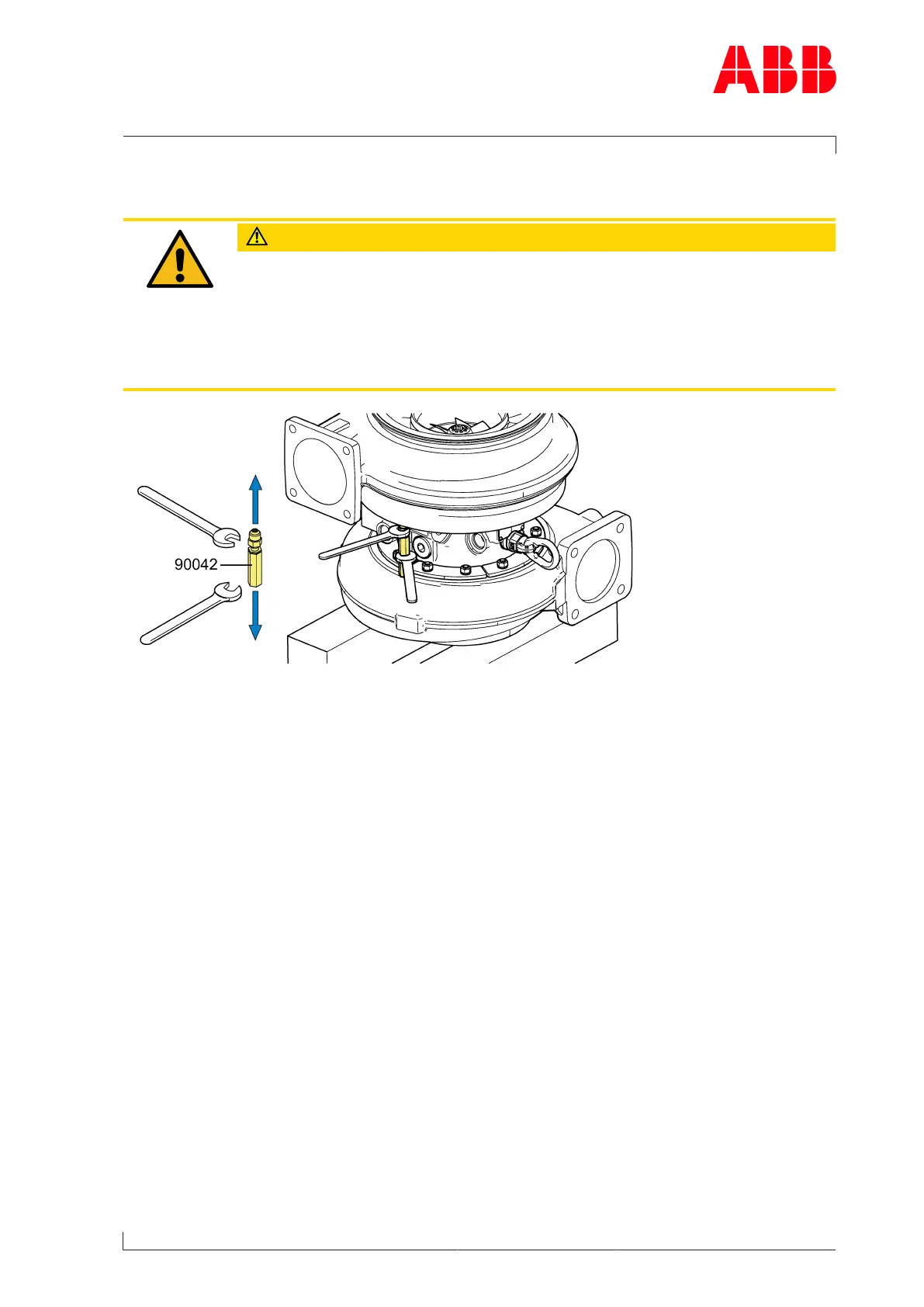

Fig.27: Press off the casing
Page 75 / 122
