Operation Manual / Power2 340-H / Low-pressure stage
9 Disassembly and assembly / 9.15 Installing the cartridge group
© Copyright 2022 ABB. All rights reserved. HZTL4053_EN Rev.F March 2022
Installing the cartridge group

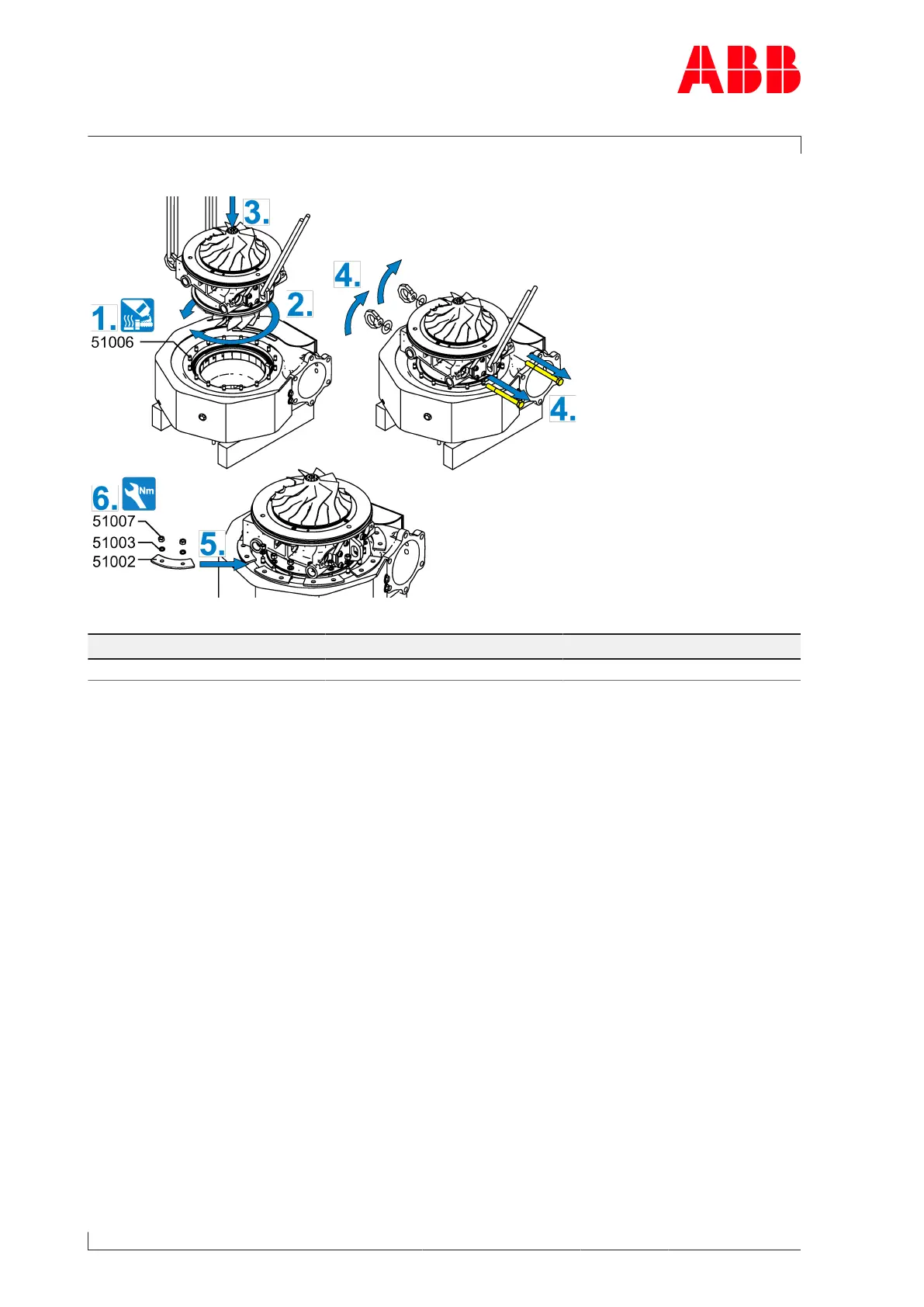

Fig.37: Installing the cartridge group
Product Size Tightening torque [Nm]
Power2 340-H LP M12 75
Table45: Tightening torque (51007)
1. Coat the threads of the studs(51006) with high-temperature grease.
2. Align the casing position of the cartridge group to the marking.
3. Lower the cartridge group into the turbine casing.
4. Remove ring nuts and screws.
5. Fit fastening strips(51002) with Verbus Ripp® washers(51003) and hexagon
nuts(51007).
6. Tighten the hexagon nuts(51007).
Page 84 / 122
