ABB PT003888 - Fig. 23: Removing the Air Inlets; Removing the Air Inlets

Operation Manual / Power2 340-H / Low-pressure stage
9 Disassembly and assembly / 9.5 Removing the air inlets
© Copyright 2022 ABB. All rights reserved. HZTL4053_EN Rev.F March 2022
9.5 Removing the air inlets
u Mark the casing position for assembly.

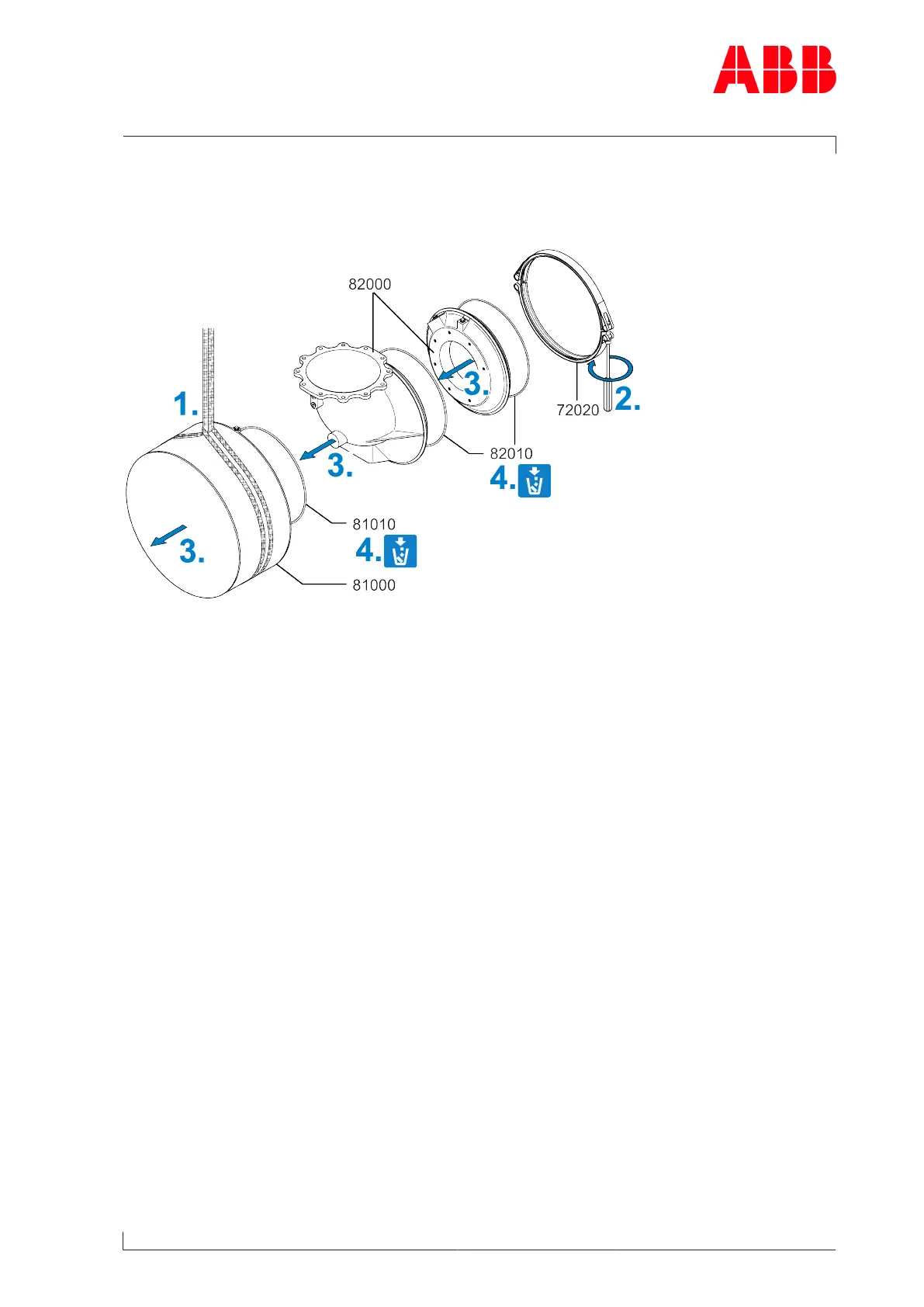

Fig.23: Removing the air inlets
1. Attach lifting gear to the filter silencer(81000) or air suction branch(82000).
2. Loosen and remove V-clamp(72020).
3. Remove filter silencer(81000) or air suction branch(82000), set it down properly in an
appropriate place and secure it.
4. Remove and dispose of the O-ring(81010 / 82010).
