ABB PT003888 - Fig. 26: Dismantling the Wall Insert; Wall Insert

Operation Manual / Power2 340-H / Low-pressure stage
9 Disassembly and assembly / 9.7 Removing the compressor casing
© Copyright 2022 ABB. All rights reserved. HZTL4053_EN Rev.F March 2022
Dismantling the wall insert

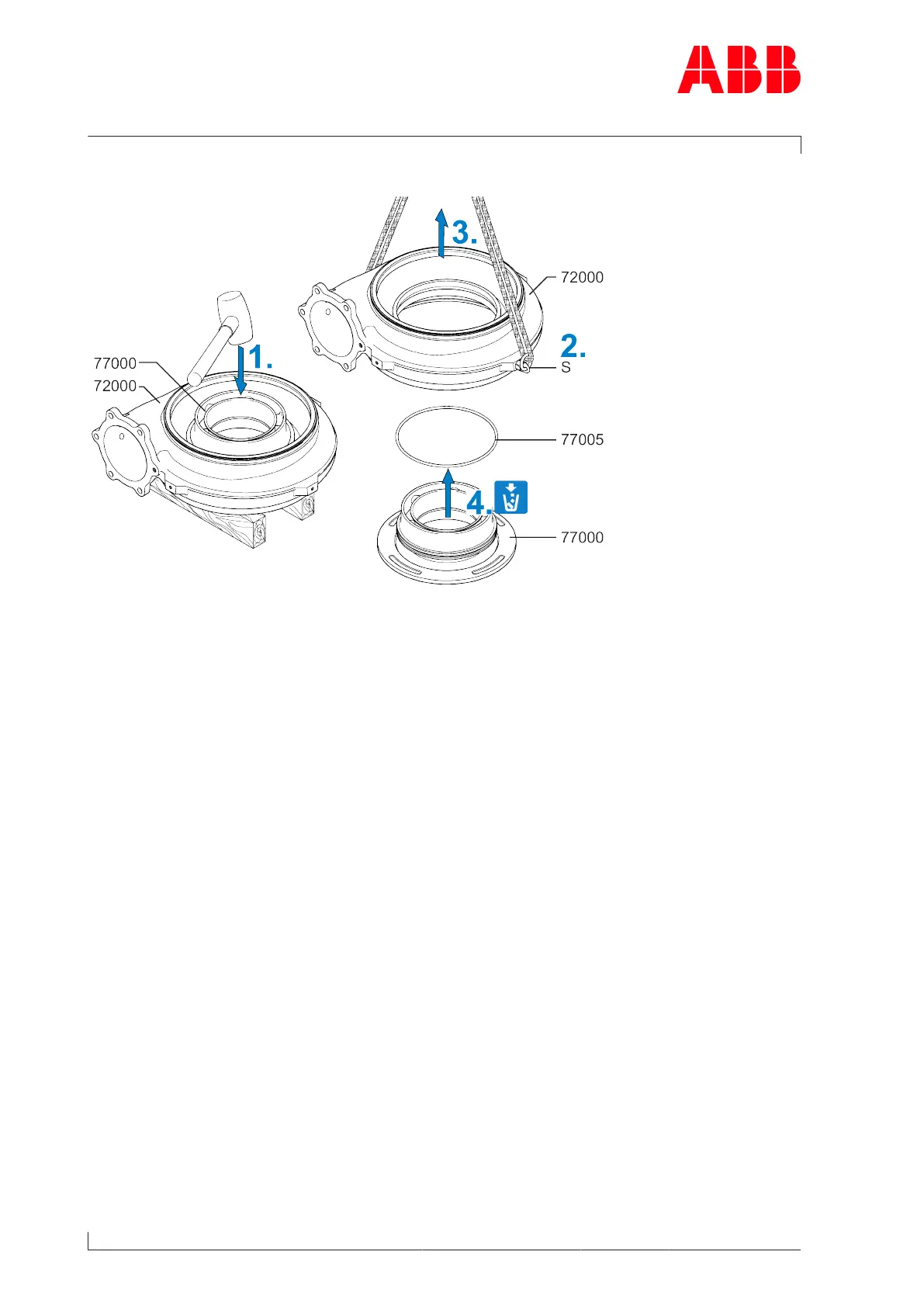

Fig.26: Dismantling the wall insert
1. Knock the wall insert(77000) out of the compressor casing(72000) with a plastic tip
hammer.
2. Attach swivel lifting eye(S) to the compressor casing(72000) and the lifting gear.
3. Lift up the compressor casing(72000).
4. Remove and dispose of the O-ring(77005).
