5.3 Speeds
5.3.1 Introduction
Speed measurement systems enable the constant monitoring of the speeds of the low-pres-
sure and the high-pressure stage.
5.3.2 Layout and overview

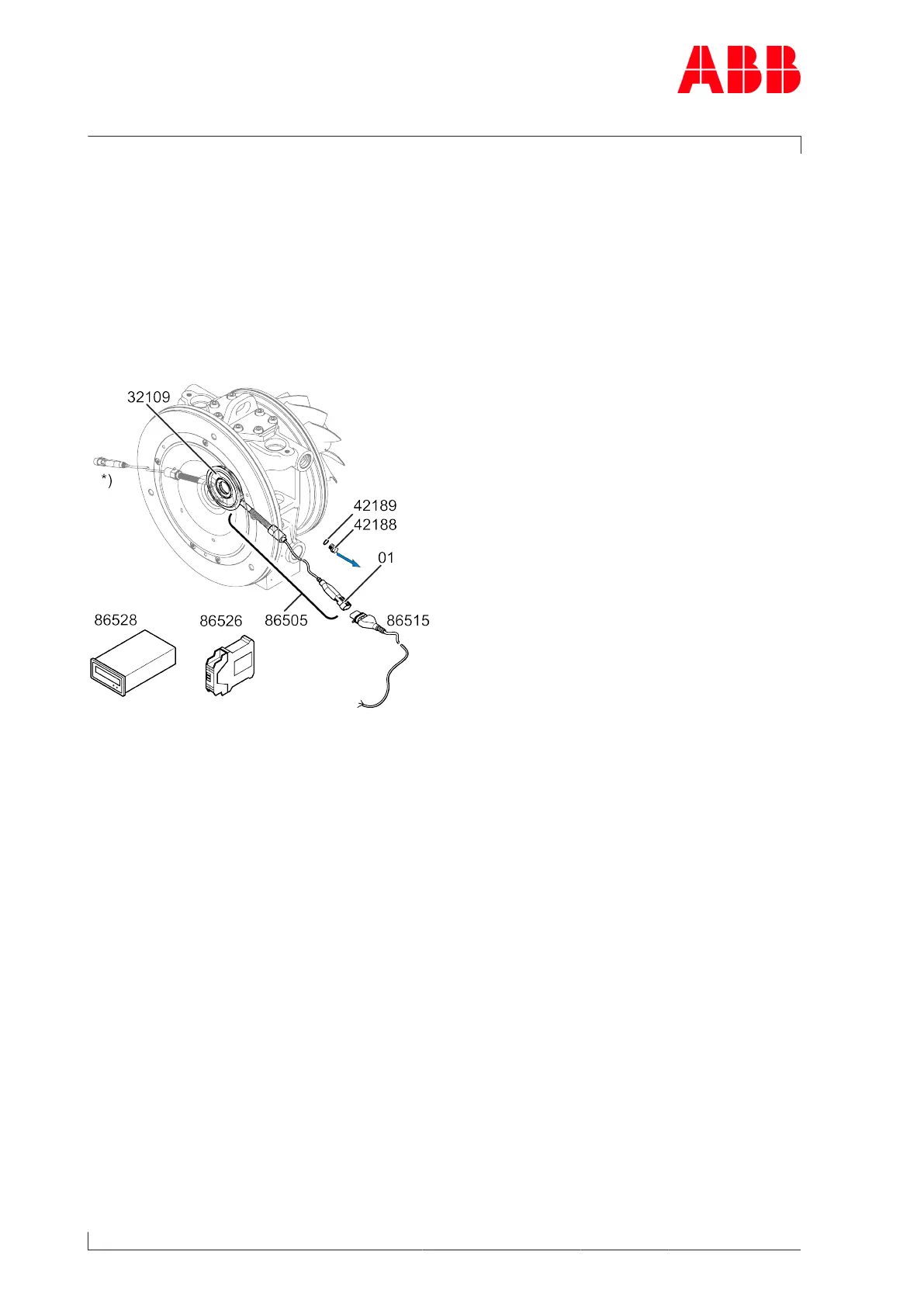

Fig.17: Low-pressure stage speed measurement system
86505 Speed sensor 42188 Screw plug
86515 Cable connector 42189 Gasket
86526 F/I converter 01 Plug with integrated voltage limiter
86528 Tachometer *) Alternative mounting position for speed
sensor
32109 Sealing disc with cams
