ABB PT003888 - Table 57

Operation Manual / Power2 340-H / Low-pressure stage
13 Spare parts / 13.2 Spare part – Illustrations
© Copyright 2022 ABB. All rights reserved. HZTL4053_EN Rev.F March 2022

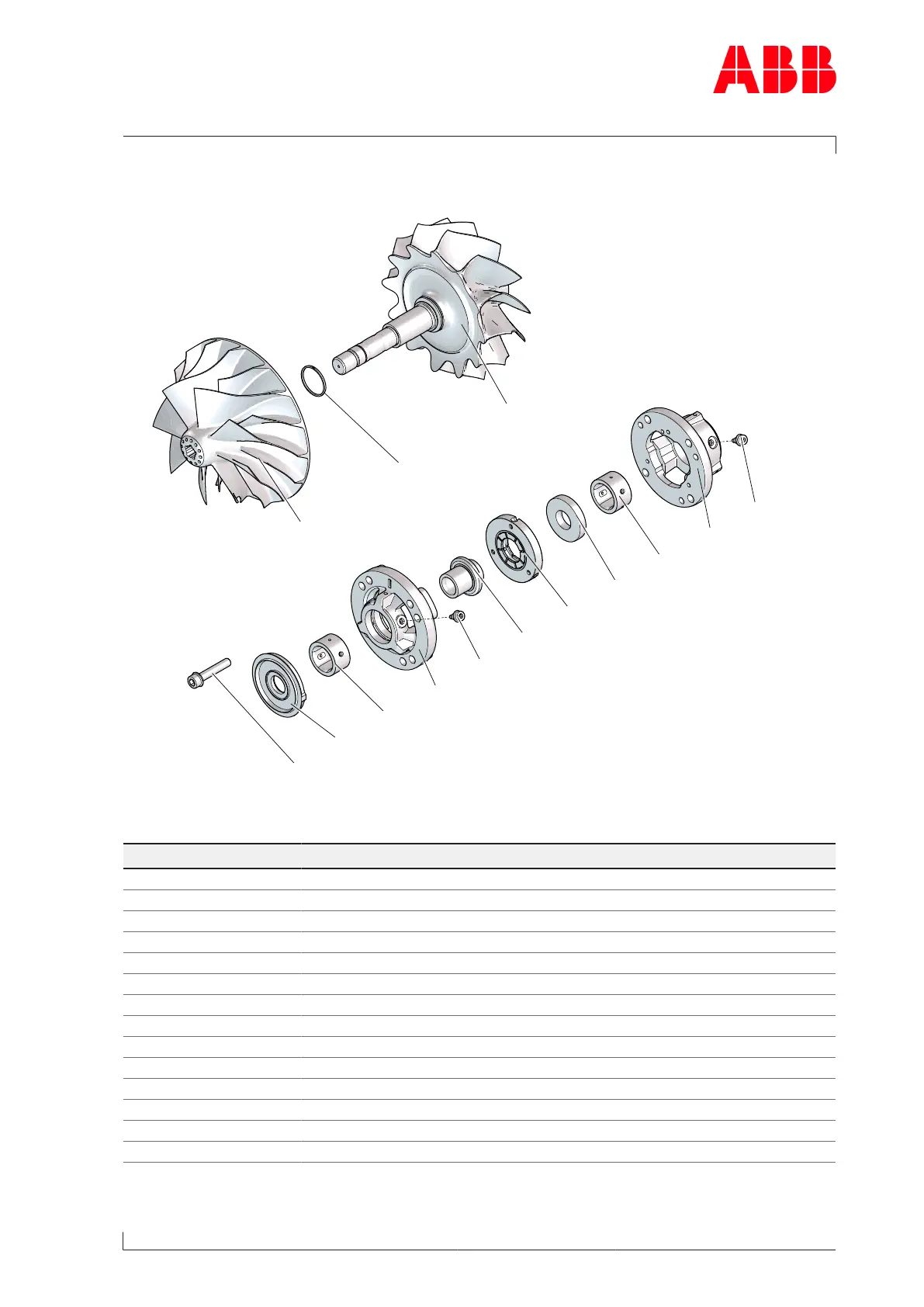

Rotor and Bearing parts
21000
21002*
25000
32112
32114*
32102*
32103*
32104*
32111*
32110
32101*
32109
32113*
42002
HZTL443579 Mod. A* = Available within the spare part set
Part no. Designation
21000 Turbine
21002* Piston ring
25000 Compressor wheel
32101* Radial bearing
32102* Radial bearing
32103* Thrust ring
32104* Thrust bearing
32109 Sealing disc
32110 Bearing flange
32111* Auxiliary bearing
32112 Bearing flange
32113* Socket screw
32114* Socket screw
42002 Socket screw
Table57
Page 103 / 122
