Operation Manual / Power2 340-H / Low-pressure stage
9 Disassembly and assembly / 9.10 Removing the nozzle ring
© Copyright 2022 ABB. All rights reserved. HZTL4053_EN Rev.F March 2022
9.10 Removing the nozzle ring

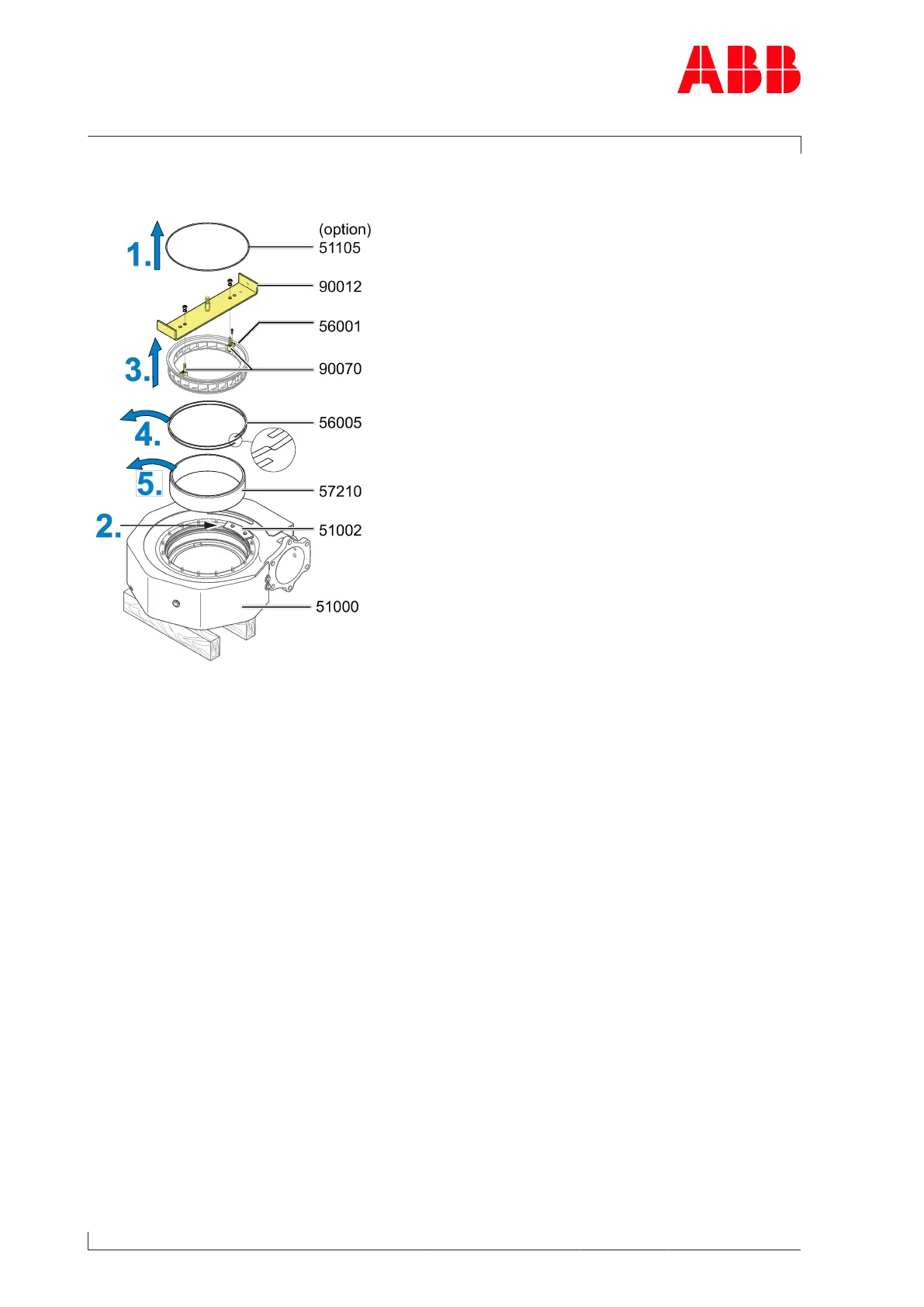

Fig.31: Removing the nozzle ring
1. If present: Remove the metal C-ring(51105).
2. Position the fastening strips(51002) in place.
3. Pull out the nozzle ring(56001) with the two extraction devices(90070) and the service
support base(90012).
4. Remove the lamellar sealing ring (56005).
5. Remove the burst ring(57210).
Page 78 / 122
