Operation Manual / Power2 340-H / Low-pressure stage
3 Removal and installation / 3.3 Installing the low-pressure stage
© Copyright 2022 ABB. All rights reserved. HZTL4053_EN Rev.F March 2022
3.3 Installing the low-pressure stage
3.3.1 Inserting gaskets
CAUTION
Inserting the gaskets
Gaskets that are forgotten, damaged or improperly inserted will lead to oil
leaks.
u Always use new gaskets and insert them carefully into the slot.
The oil is supplied(02) and drained(03) through the bracket (01).
The necessary sealing is provided by O-rings. The O-rings are not included in the Turbo Sys-
tems scope of delivery.

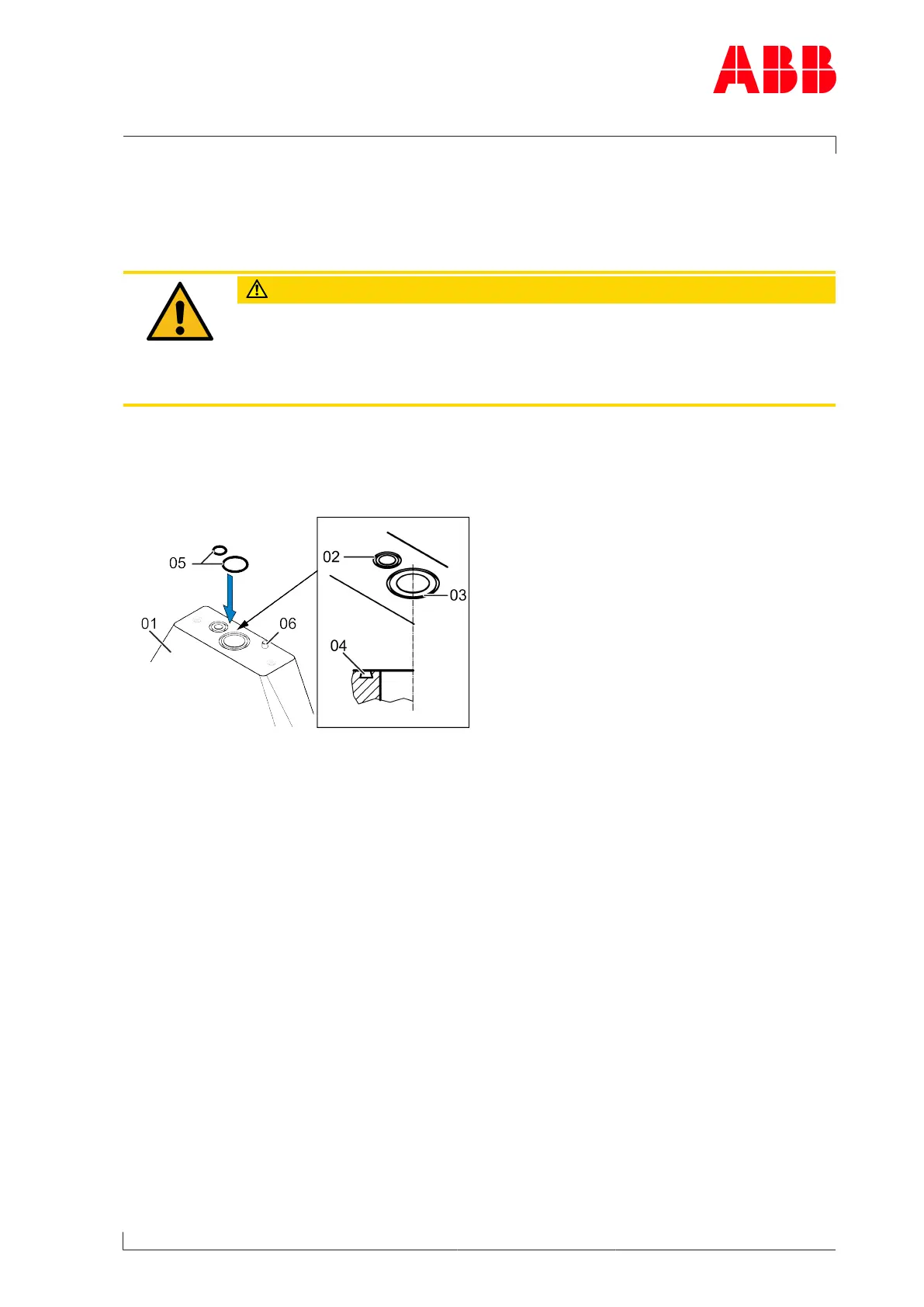

Fig.13: Inserting gaskets into the bracket
01 Bracket 04 Slot for gasket
02 Oil supply 05 O-rings
03 Oil drain 06 Pin (optional)
The low-pressure stage can have an oil inlet either on its right or left side, and this can be
different for the low-pressure stage fitted on the left and right engine bank.
A pin can be installed in the support as an installation safety device to prevent inadvertent
incorrect fitting. This pin fits into the respective slot on the foot of the bearing casing. In-
structions of the enginebuilder must be observed.
