ABB PVS-100 User Manual

- 62 -
000833BG
5 - Installation

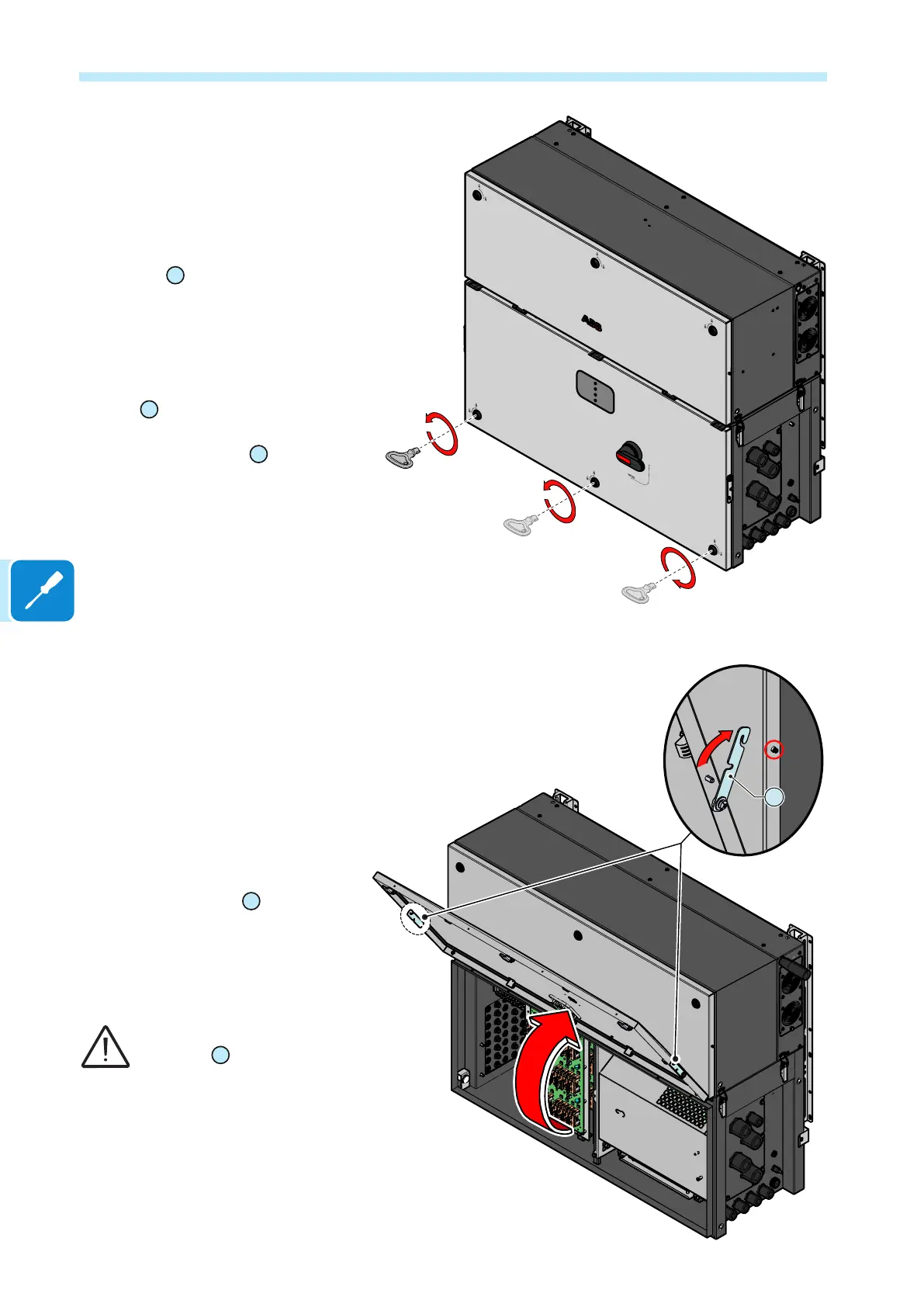

Opening the cover
• Using the key tool provided with
the inverter installation kit con-
tent in the wiring box package,
open the three cover quarter
cam locks
05
following the pro-
per ways as shown in the rela-
ted silkscreens on the cover.
• (only for -SX2, -SY2 version)
Set the wiring box disconnect
switch
09
to OFF position; oth-
erwise it will not be possible to
remove the front cover
07
.
• Open the cover and use the co-
ver support brackets
14
to lock
the cover in open position.
Pay attention to properly
secure the cover support
brackets
14
in order to
avoid falling of the cover!
PVS
14

ABB PVS-100 Specifications

General

Rated AC power output	100 kW
AC Voltage	400 V
Topology	Transformerless
Cooling Method	Forced Air
Operating temperature range	-25°C to +60°C (derating above 45°C)
Cooling	Forced air
Frequency	50/60 Hz
