ABB PVS-100 User Manual

- 63 -
000833BG
5 - Installation

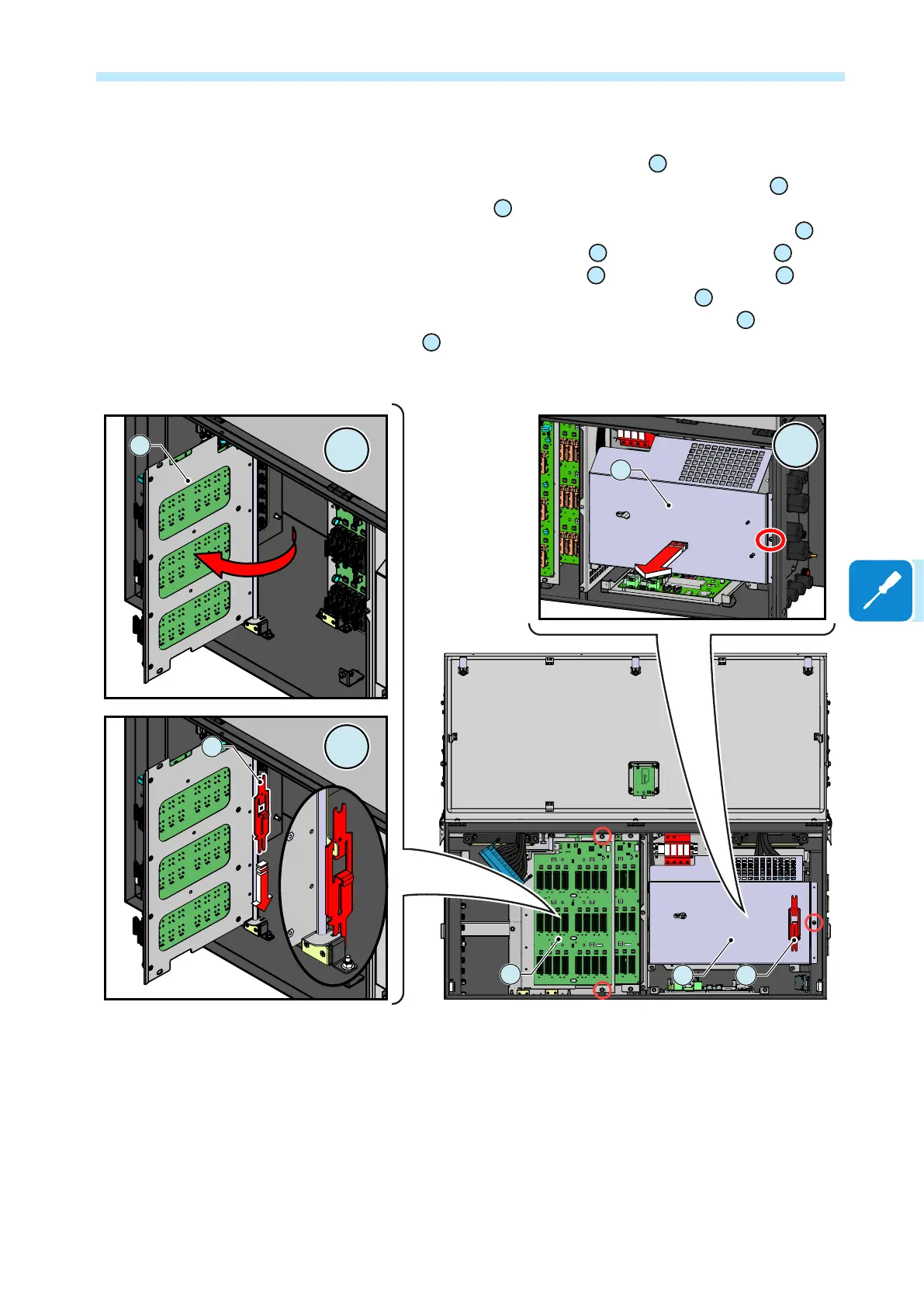

Final fastening operations
In order to reach the two junction screws
18
and complete the power
module and wiring box mating, the positive string fuses plate
19
and the
AC protective shield
27
have to be removed as follow:
• Remove the two M5 screws from the positive string fuses plate
19
.
• Tilt the positive string fuses plate
19
as shown in the picture
A
.
• Position the multi-functional tool
26
as shown in the picture
B
to lock
the open position of the positive string fuses plate
19
.
• Remove the M5 screw from the AC protective shield
27
and remove
the shield
C
.
R S T N
19
19
27
27 26
26
A
B
C

ABB PVS-100 Specifications

General

Rated AC power output	100 kW
AC Voltage	400 V
Topology	Transformerless
Cooling Method	Forced Air
Operating temperature range	-25°C to +60°C (derating above 45°C)
Cooling	Forced air
Frequency	50/60 Hz
