ABB PVS-100 User Manual

- 64 -
000833BG
5 - Installation

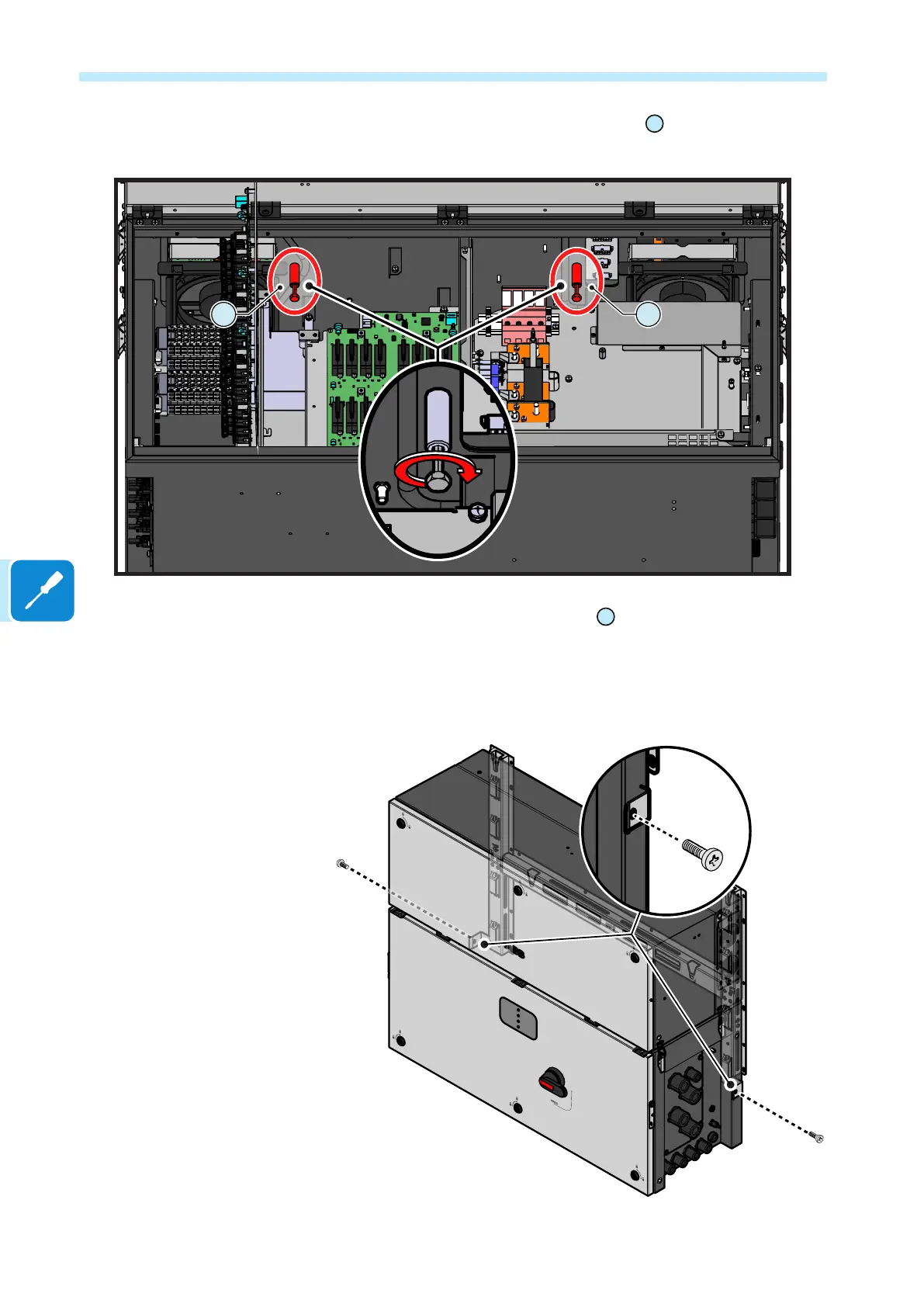

• Tighteen the two hexagonal junction screws
18
with a tightening torque
of 12 Nm.
18 18
• Close the positive string fuses plate
19
using the two M5 screws pre-
viously removed.
• Tighteen the two side screws (supplied) with a tightening torque of 5
Nm, to avoid the tilting of the bottom part of the inverter.
PVS

ABB PVS-100 Specifications

General

Rated AC power output	100 kW
AC Voltage	400 V
Topology	Transformerless
Cooling Method	Forced Air
Operating temperature range	-25°C to +60°C (derating above 45°C)
Cooling	Forced air
Frequency	50/60 Hz
